VIP-X System Manual
3. "Ping" the IP address of the module being upgraded to confirm a valid network connection. In the
command prompt window type:
<Enter>.
If a proper network connection has been established, a "reply" is displayed on the DOS window. If
there is a faulty network connection, a "Destination Host Unreachable" message is provided. If this
occurs, either the IP addresses of the nodes should be verified or the network (Ethernet) cable is
faulty. For more information, please see sections 5.6 and 9.2.1 of this manual.
10.1.3. Step 3 – Upgrading the Application Code
4. Obtain the new application code and place it on the local drive of the PC.
5. In the command prompt window type:
6. Press the <Enter> key when prompted for a "Username".
7. Press the <Enter> key when prompted for a "Password".
displayed.
VIP-X - 58

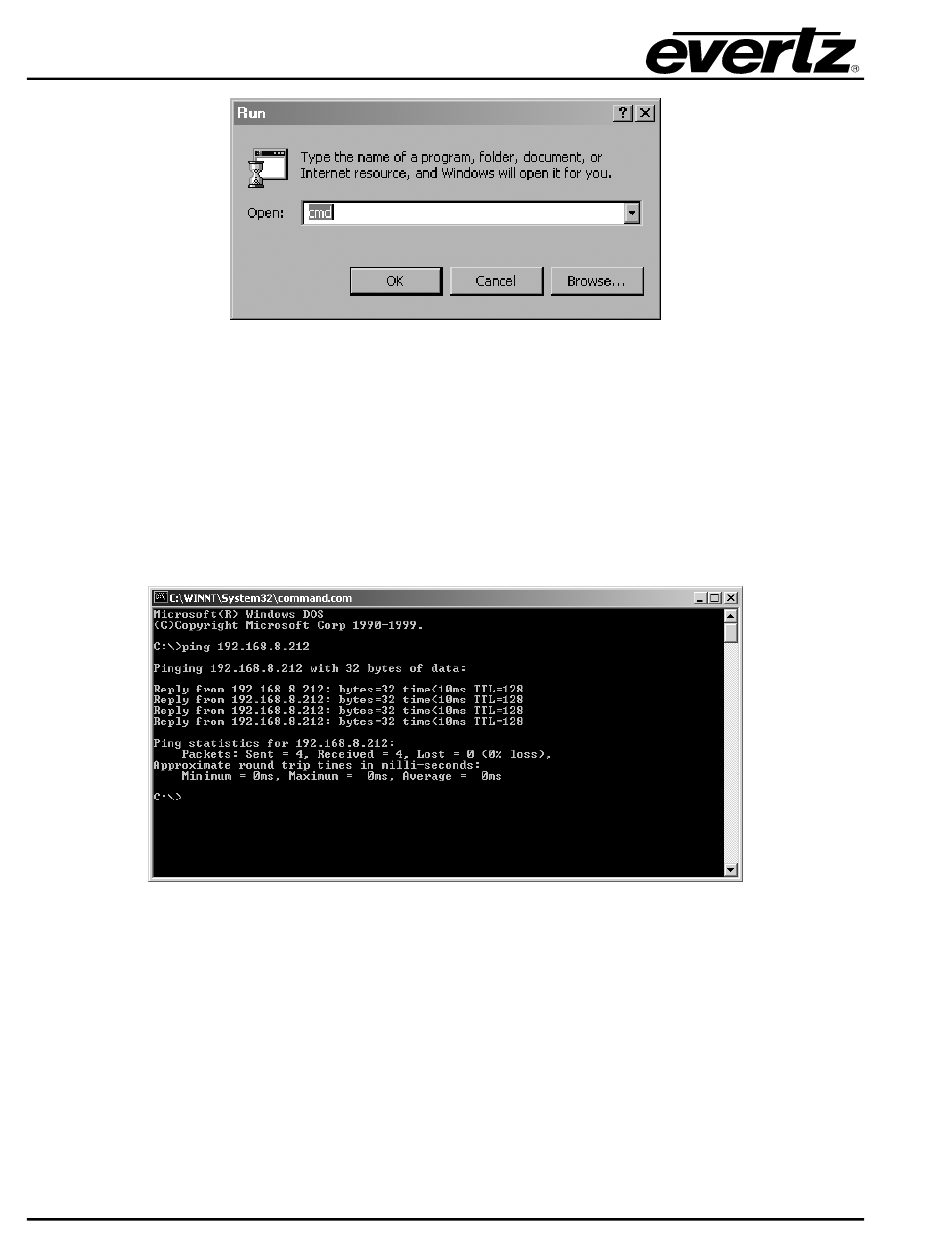

Figure 10-1: Run Window

ping xxx.xxx.xxx.xxx

Figure 10-2: Pinging the IP Address

ftp xxx.xxx.xxx.xxx
Revision 1.0
(IP address of the module) and press
(IP address of the module).
A message indicating a log in is
