DEMO MANUAL DC2183A

Quick start proceDure

DC2183 is easy to set up to evaluate the performance
of the LTC2107 A/D converter. Refer to Figure 1 for
proper measurement equipment set-up and follow the
procedure below:
SINGLE-ENDED
ANALOG INPUT.
ABSORPTIVE FILTER IS REQUIRED
FOR DATA SHEET PERFORMANCE
2
Arrow.com. Arrow.com.
Downloaded from Downloaded from
J1

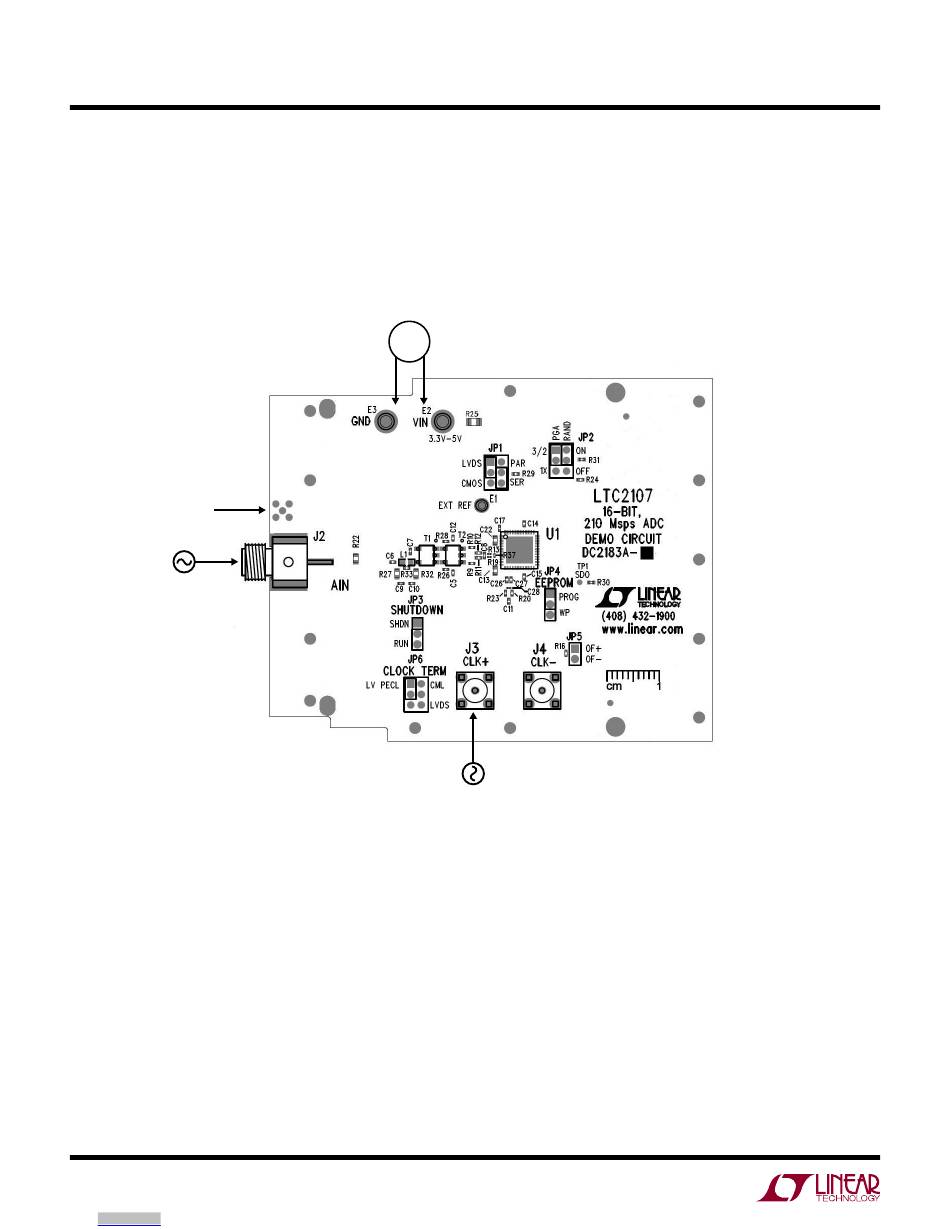

Figure 1. DC2183 Proper Measurement Equipment Setup
Setup
The DC1371 Data Acquisition and Collection System was
supplied with the DC2183 board. Follow the DC1371 Quick
Start Guide to install the required software and for con-
necting the DC1371 to the DC2183 and to a PC.
3.3V
TO 5V
SINGLE-ENDED ENCODE CLOCK.
USE A LOW-JITTER SIGNAL GENERATOR WITH PROPER FILTERING
JUMPERS SHOWN IN THEIR DEFAULT POSITIONS
THE DC2183 CONNECTS TO THE DC1371 VIA AN FMC CONNECTOR
(zoom in for detail)
