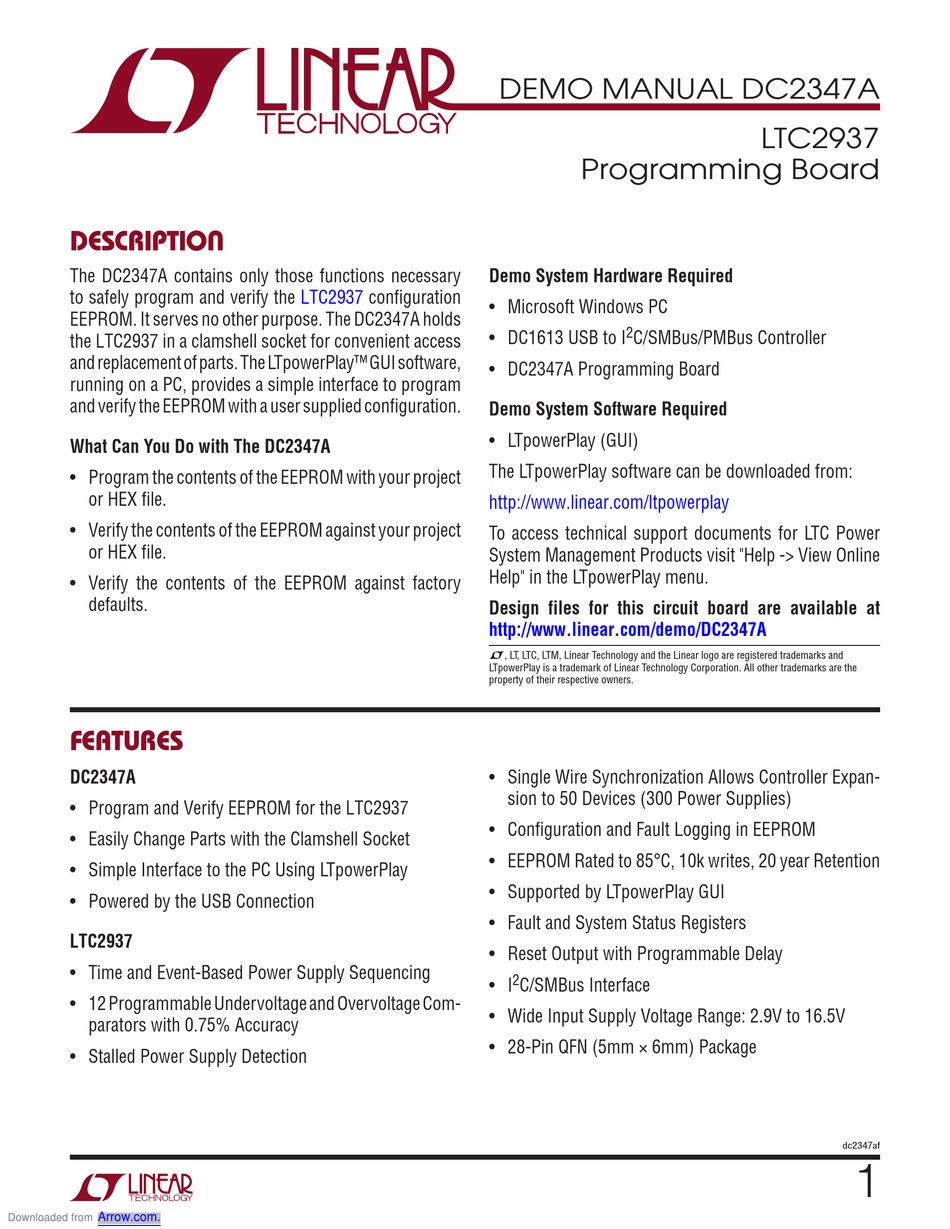

DESCRIPTION
The DC2347A contains only those functions necessary
to safely program and verify the
EEPROM. It serves no other purpose. The DC2347A holds
the LTC2937 in a clamshell socket for convenient access
and replacement of parts. The LTpowerPlay™ GUI software,
running on a PC, provides a simple interface to program
and verify the EEPROM with a user supplied configuration.
What Can You Do with The DC2347A
• Program the contents of the EEPROM with your project
or HEX file.
• Verify the contents of the EEPROM against your project
or HEX file.
• Verify the contents of the EEPROM against factory
defaults.
FEATURES
DC2347A
• Program and Verify EEPROM for the LTC2937
• Easily Change Parts with the Clamshell Socket
• Simple Interface to the PC Using LTpowerPlay
• Powered by the USB Connection
LTC2937
• Time and Event-Based Power Supply Sequencing
• 12 Programmable Undervoltage and Overvoltage Com-
parators with 0.75% Accuracy
• Stalled Power Supply Detection
Arrow.com.
Downloaded from
LTC2937
configuration
DEMO MANUAL DC2347A
Programming Board
Demo System Hardware Required
• Microsoft Windows PC
2
• DC1613 USB to I
C/SMBus/PMBus Controller
• DC2347A Programming Board
Demo System Software Required
• LTpowerPlay (GUI)
The LTpowerPlay software can be downloaded from:
http://www.linear.com/ltpowerplay
To access technical support documents for LTC Power
System Management Products visit "Help -> View Online
Help" in the LTpowerPlay menu.
Design files for this circuit board are available at
http://www.linear.com/demo/DC2347A
L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and
LTpowerPlay is a trademark of Linear Technology Corporation. All other trademarks are the
property of their respective owners.
• Single Wire Synchronization Allows Controller Expan-
sion to 50 Devices (300 Power Supplies)
• Configuration and Fault Logging in EEPROM
• EEPROM Rated to 85°C, 10k writes, 20 year Retention
• Supported by LTpowerPlay GUI
• Fault and System Status Registers
• Reset Output with Programmable Delay
2
• I
C/SMBus Interface
• Wide Input Supply Voltage Range: 2.9V to 16.5V
• 28-Pin QFN (5mm × 6mm) Package
LTC2937
dc2347af
