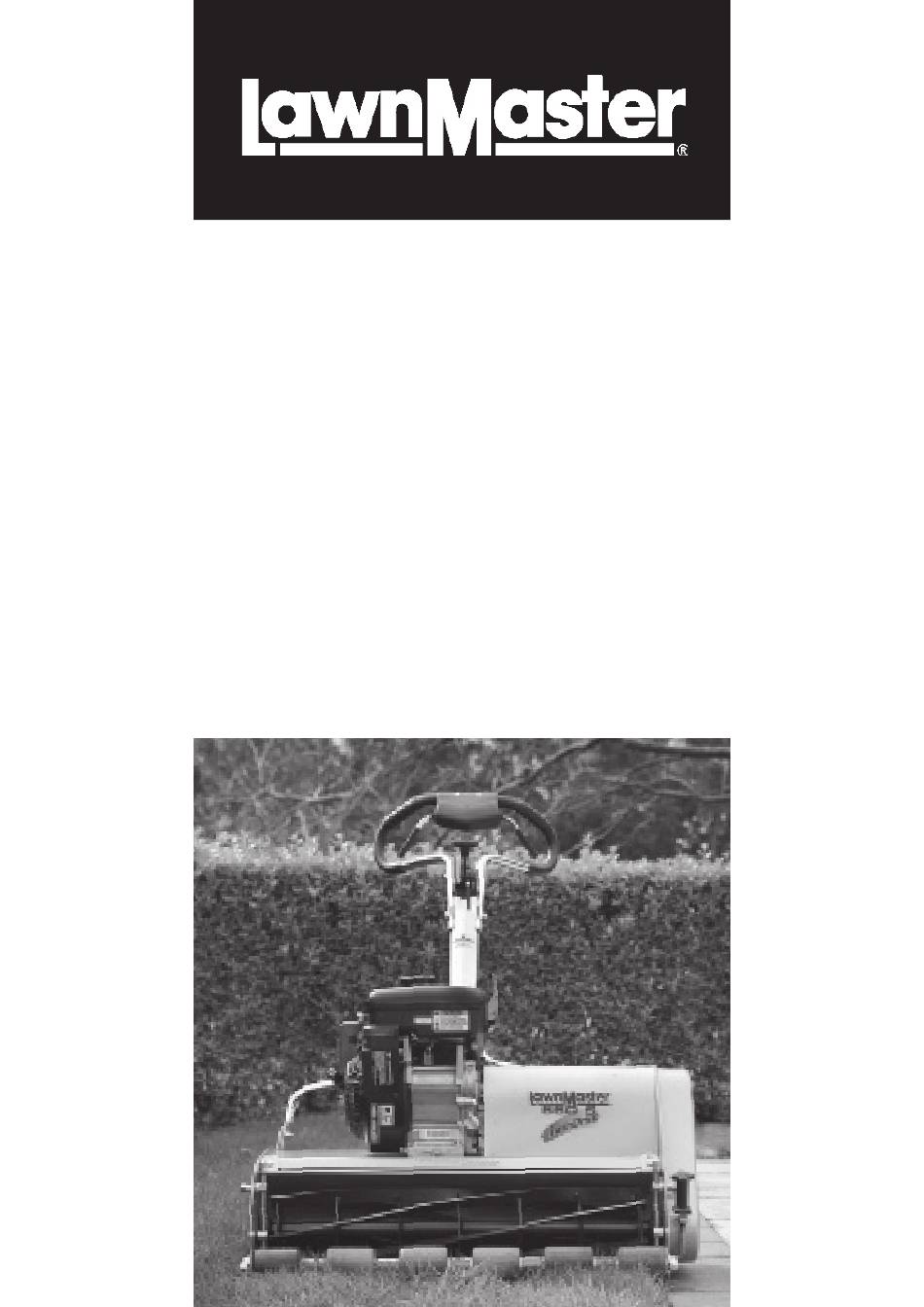

- Page 1 Dual-Drive Reel Mowers Owner’ s Manual FOR MODELS 400 660S 500 GOLF www.steelfort.co.nz...
-
Page 3: Table Of Contents
Contents Before using your new Reel Mower read PAGE 1 Contents the Owner’s Manual carefully until you completely understand and can follow 2 Introduction & Compliance all warnings and safety instructions Introduction before commissioning and operating your Compliance/Noise emission mower. 2 Safety Instructions For Your Records Safety... -
Page 4: Introduction & Compliance
Noise Emission in accordance with Annex H of UNI EN hazards occurring to other people or property. 836:2003 Safety TEST RESULTS 400 B 2.4 95 db(A) Never allow children or people unfamiliar with 500 B 2.4 96 db(A) these instructions to use the lawnmower. -
Page 5: Preparation
With the lawnmower in a level position, • Repair or replace excessively worn or damaged Remove the filler cap/oil dipstick. components with genuine LawnMaster Wipe the dipstick clean. Dual-Drive Spare Parts only. Fill to the full mark, pouring slowly - DO NOT 19 Fuel OVERFILL. -
Page 6: Operating
Operating Roller clutch lever Never start or run the engine indoors or in poorly ventilated The Roller clutch lever is located on the right hand areas. Engine exhaust contains side of the Upper handlebar. Drive to the rear roller is carbon monoxide gas which can engaged when the lever is squeezed towards the Upper be fatal. -
Page 7: Cutting Cylinder To Bottom Blade Adjustment
Operating Grass catcher The cutting height is increased by rotating the handwheel in a clockwise direction and vice versa. If a particular cutting height is required it is necessary to Always shut off the engine and bridge the rear and front rollers and measure the normal ensure it has stopped before fitting and removing the grass catcher height to the cutting point of the bottom blade and... -
Page 8: Maintenance
Correct servicing will Check spark plug prolong its working life and safeguard the Dual Drive Warranty. Always fit genuine LawnMaster Clean and reset the spark plug gap every 100 hours of Dual-Drive Service Parts as these are accurately operation. -
Page 9: Flexible Coupling
It would be worthwhile at this stage to inspect the bearings and sprockets for excessive wear. Replace worn or damaged parts with genuine LawnMaster Dual-Drive Reel Mower components before The roller clutch can be adjusted, with the cable inline further use. -
Page 10: Catcher
Maintenance Cleaning & Storage Cleaning the mower body First slacken the two retaining screws and pull the grass thrower forward to reduce the gap between it and the Do not use a water hose around cutting cylinder without it touching as this will create the engine. -
Page 11: Safety
Cleaning & Storage Grass Cutting Faults Ridge lines in the cut across the Adjust the cutting cylinder away from the bottom blade direction of travel and apply a thin layer of grease to the cutting edges to prevent corrosion through the storage period. If POSSIBLE CAUSE REMEDY possible, spray the mower with a thin film of light oil to... -
Page 12: Troubleshooting
TroubleShooting The engine does not start, runs Oil leaks from muffler or air filter erratically or experiences power loss POSSIBLE CAUSE REMEDY POSSIBLE CAUSE REMEDY • Worn or damaged • Inspect and replace • Throttle not in choke/ • Move throttle to flexible coupling. -
Page 13: Warranty & Spare Parts
This warranty is void if parts other than genuine LawnMaster Dual-Drive parts have been used or repairs carried out by other than authorised Dual-Drive service agents. This warranty does not cover the costs of... - Page 15 1014...
- Page 16 Manufactured by Steelfort Engineering 500 Rangitikei Street Palmerston North 4442 New Zealand 06 350 1350...
