LawnMaster CLMF2434G Instruction Manual

24v lithium-ion cordless mower
Hide thumbs Also See for CLMF2434G:
Table of Contents

Advertisement

Quick Links

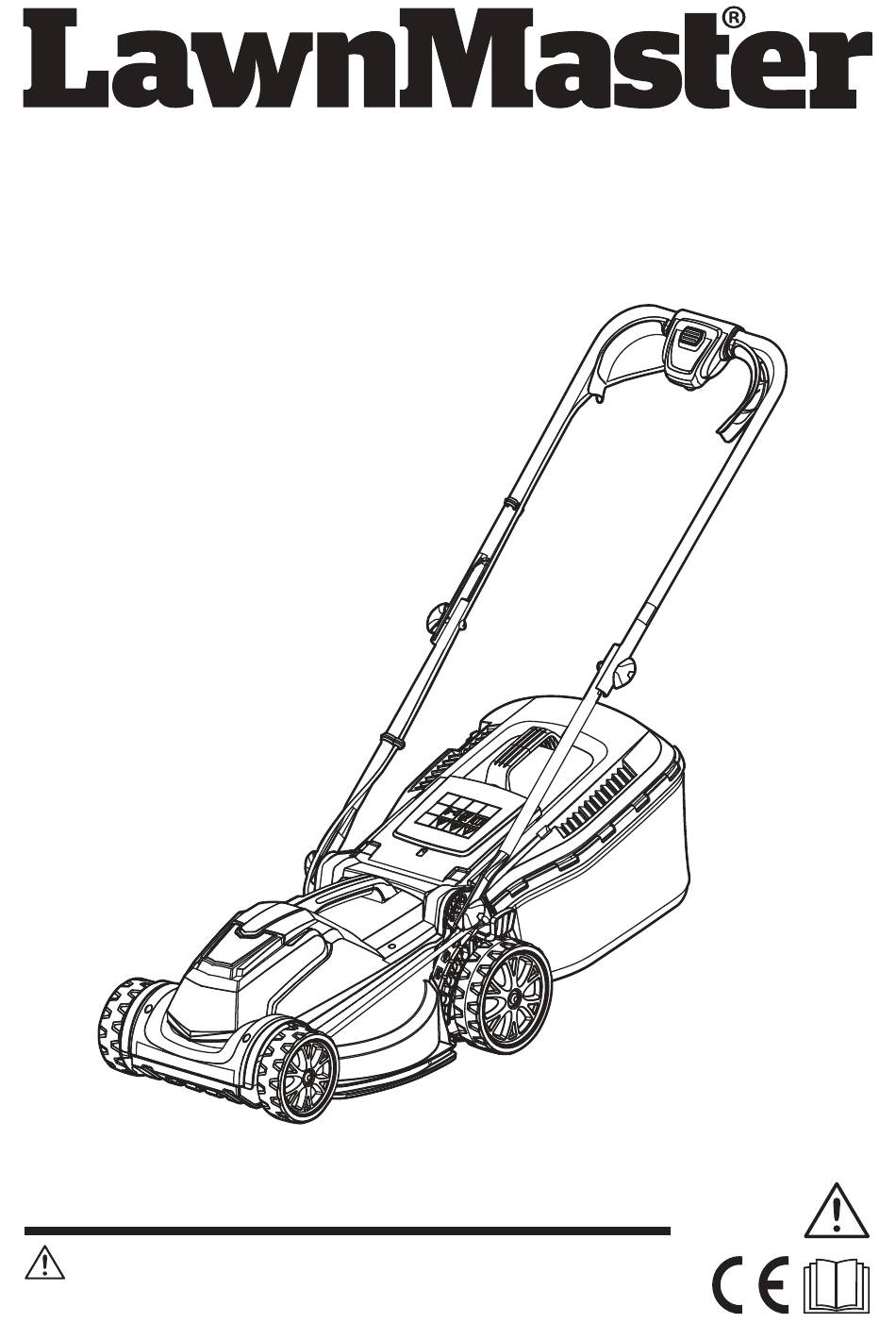

Instruction Manual
34cm 24V Lithium-Ion Cordless Mower CLMF2434G
Original Instructions
WARNING:
Read all safety instructions carefully before assembling and operating
this machine. Ensure the machine has been assembled correctly and safely. Keep the
instructions safe and pass them on to any subsequent user so that the information is always
available.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLMF2434G and is the answer not in the manual?

Questions and answers

Related Manuals for LawnMaster CLMF2434G

Summary of Contents for LawnMaster CLMF2434G

  • Page 1 Instruction Manual 34cm 24V Lithium-Ion Cordless Mower CLMF2434G Original Instructions WARNING: Read all safety instructions carefully before assembling and operating this machine. Ensure the machine has been assembled correctly and safely. Keep the instructions safe and pass them on to any subsequent user so that the information is always...
  • Page 3 Fig.1 Fig.2 Fig.3 Fig.4 Fig.5 Fig.6...

  • Page 5: Table Of Contents

    TABLE OF CONTENTS Section Page Symbols Safety Information 8-17 In the Box Assembly 18-20 Operation 21-25 Maintenance 26-28 Troubleshooting 29-30 Technical data Recycling and Disposal...

  • Page 6: Symbols

    SYMBOLS The following warning symbols appear throughout this manual and indicate the appropriate safety measures you should take when operating and maintaining the appliance. SYMBOL DESIGNATION/EXPLANATION Caution Read instruction manual. Keep bystanders away. Beware of sharp blades. Blades may continue to rotate after the motor is switched off.
  • Page 7 SYMBOLS SYMBOL DESIGNATION/EXPLANATION Do not subject the battery to direct sunlight over long periods and do not leave it on or near a heat source (max. 60°C). Recycle electrical waste products in an environmentally safe way where facilities exist. WARNING To avoid serious personal injury, do not attempt to use this product until you read thoroughly and understand completely the instruction manual.

  • Page 8: Safety Information

    SAFETY INFORMATION IMPORTANT When using equipment, the following safety precautions must be followed to avoid injuries and damage: ■ Read all operating instructions carefully and comply with them. It is important to understand these instructions and to acquaint yourself with the machine, its correct usage and all safety requirements.
  • Page 9 SAFETY INFORMATION and remove the battery pack and isolator key. ■ Never operate the machine while people, especially children, or pets are nearby. ■ Use extreme care when approaching blind corners, doorways, shrubs, trees, or other objects that may obscure your view of a child or animal that may run into the path of the mower.
  • Page 10 SAFETY INFORMATION ■ Walk, never run. ■ Mow across the face of slopes, never up and down. ■ Exercise extreme caution when changing direction on slopes. ■ Use extreme caution when reversing or pulling the mower towards you. ■ Stay Alert: Do not operate the mower when you are tired. Pay attention to what you are doing.
  • Page 11 SAFETY INFORMATION ■ Never pick up or carry the machine while the motor is running. ■ Do not carry the machine with your finger on the switch. ■ Do not overreach. Keep proper footing and balance at all times. ■ Do not use a machine if the switch does not turn it on and off.
  • Page 12 SAFETY INFORMATION injury. ■ Do not hold on to the mower if you are falling. Release the handle immediately. ■ Do not use the mower for any job except that for which it is intended. Do not force the mower. ■...
  • Page 13 SAFETY INFORMATION damaged safety devices. Doing so can result in injury. ■ Ensure that the isolator key is not installed when the mower is not in use. This prevents accidental starting of the machine. ■ Replace worn or damaged parts for safety. Use only genuine replacement parts and accessories.
  • Page 14 SAFETY INFORMATION temperature between 0°C and 25°C. Battery Safety Information ■ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
  • Page 15 SAFETY INFORMATION skin, wash immediately with soap and water. If liquid gets into your eyes, flush them with clean water for at least 10 minutes, then seek immediate medical attention. ■ When the battery pack is not in use, keep it away from other metal objects like: paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another.
  • Page 16 SAFETY INFORMATION manual. If the power cord for this equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or a fully qualified person in order to prevent hazards. ■ The plug of the charger must match the outlet. Never modify the plug in any way.

  • Page 17: In The Box

    SAFETY INFORMATION ■ This product is not to be used in wet weather conditions and may not be used to mow wet or unusually high grass. ■ This product is intended for private domestic use only, not for any commercial trade use. It must not be used for any purposes other than those described.

  • Page 18: Assembly

    ASSEMBLY Assembly Preparation ■ Carefully remove all contents from the product packaging. ■ Ensure you have all the accessories and tool(s) needed for assembly and operation. This also includes suitable personal protective equipment. WARNING If any parts are damaged or missing do not operate this product until the parts are replaced. Failure to pay attention to this warning could result in serious personal injury.
  • Page 19 ASSEMBLY Assembling the Grass Collection Bag (See Figs. 4-5) Your mower comes with a tool free grass collection bag. ■ Check the collection bag before assembling to make sure there is no damage. ■ Insert the handle in the slots on the upper cover of grass collection bag. Ensure this securely ‘clicks’...
  • Page 20 ASSEMBLY NOTE: The mulching plug MUST be removed if collection bag is used during mowing operation. This mulching plug prevents grass from being collected by blocking the collection chute. This allows the grass clippings to be deposited back on the lawn during cutting. This finely cut grass acts as a nutrient for the lawn.

  • Page 21: Operation

    OPERATION WARNING Do not allow familiarity with this type of product to make you careless. Always pay attention when operating this product, not doing so can result in serious injury. WARNING Always wear safety goggles or safety glasses with side shields when operating this product. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury.
  • Page 22 Battery Pack Operation ■ Battery Charging WARNING Use only with 24V Lawnmaster ® 24LFC12 battery charger. The battery charger supplied is specifically designed for the lithium-ion battery used in this garden appliance and may cause risk of fire if used with a non-compatible battery pack.
  • Page 23 Charger Operation (See Fig. 14) WARNING Use only with 24V Lawnmaster® 24LB4005 battery. If any part of the charger is missing or damaged, do not operate it! Replace the charger with a new one. Failure to pay attention to this warning could result in possible serious injury.
  • Page 24 OPERATION Battery Capacity Battery Capacity Battery Capacity Charging paused, see Red, flashing instructions below. Connected to power supply Red, continuous (Standby) Green, flashing Charging Green, Fully charged continuous The intelligent charger measures the charge level of the battery pack and charges the battery accordingly with the required current and voltage, based on battery temperature and voltage, this ensures maximum battery life.
  • Page 25 OPERATION power connections are in good working order prior to installing the isolator key and battery. If damage is present or observed, please stop and have mower serviced before use. Do not use the product if it is damaged. ■ Double check that the blade is properly installed. ■...

  • Page 26: Maintenance

    MAINTENANCE WARNING Always switch the product off, disconnect the battery pack and isolator key and let the product cool down before performing inspection, maintenance and cleaning work! WARNING If a part becomes worn or damaged, use manufacturer recommended replacement parts. Use of any other parts may create a hazard or cause product damage.
  • Page 27 MAINTENANCE location. ■ Remove the grass collection bag from mower if attached. ■ Slowly turn the mower onto its side. ■ Wedge a block of wood between the blade and the mower deck, or use safety gloves to firmly hold the blade, in order to prevent the blade from turning when the blade nut is being removed. ■...
  • Page 28 MAINTENANCE Storing the Mower (See Fig. 24) The device features the following storage options to save space: ■ Before storing your mower, remove the isolator key and the battery. ■ Loosen the wing knobs on both sides of the handle bars. ■...

  • Page 29: Troubleshooting

    TROUBLESHOOTING WARNING Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by a qualified specialist. Gloves and appropriate protective clothing must be worn when performing these instructions. Always turn off the machine and remove the battery pack and isolator key before making any adjustment.
  • Page 30 TROUBLESHOOTING Wet grass clippings are sticking Wait until the grass dries before to the underside of the deck. mowing. Mower does not mulch properly. Missing mulching plug. Install the mulching plug. Check underneath the mower and clear out as necessary Possible clogging.

  • Page 31: Technical Data

    TECHNICAL DATA 24V Cordless Mower CLMF2434G Voltage No Load Speed 3400/min Cutting Width 34cm Cutting Height Adjustment 20/30/40/50/60/70mm (6 Positions) Grass Collection Box Capacity Functions Mulch, Rear Bag Wheel Size 140/170mm Sound Pressure Level (L 80dB(A) K=3dB Sound Power Level (L...

  • Page 32: Recycling And Disposal

    RECYCLING AND DISPOSAL This marking indicates that this product should not be disposed with other household wastes throughout the EU. The machine must be delivered in rigid packaging to avoid damage during transportation. The packaging and the machine itself are manufactured from recyclable materials and should be disposed of accordingly.
  • Page 34 Fig.7 Fig.8 Fig.9 Fig.10 Fig.11 Fig.12 Fig.13 Ⅰ Ⅱ Fig.15 Fig.14 Fig.16 Fig.17 Fig.18 Fig.19 Fig.20 Fig.21 Fig.22 Fig.24 Fig.23...
  • Page 36 CLMF2434G Suzhou Cleva Electric Appliance Co. Ltd 8 Ting Rong Street, Suzhou Industrial District 215122 Suzhou, Jiangsu Province, P.R.C www.cleva-europe.com...
