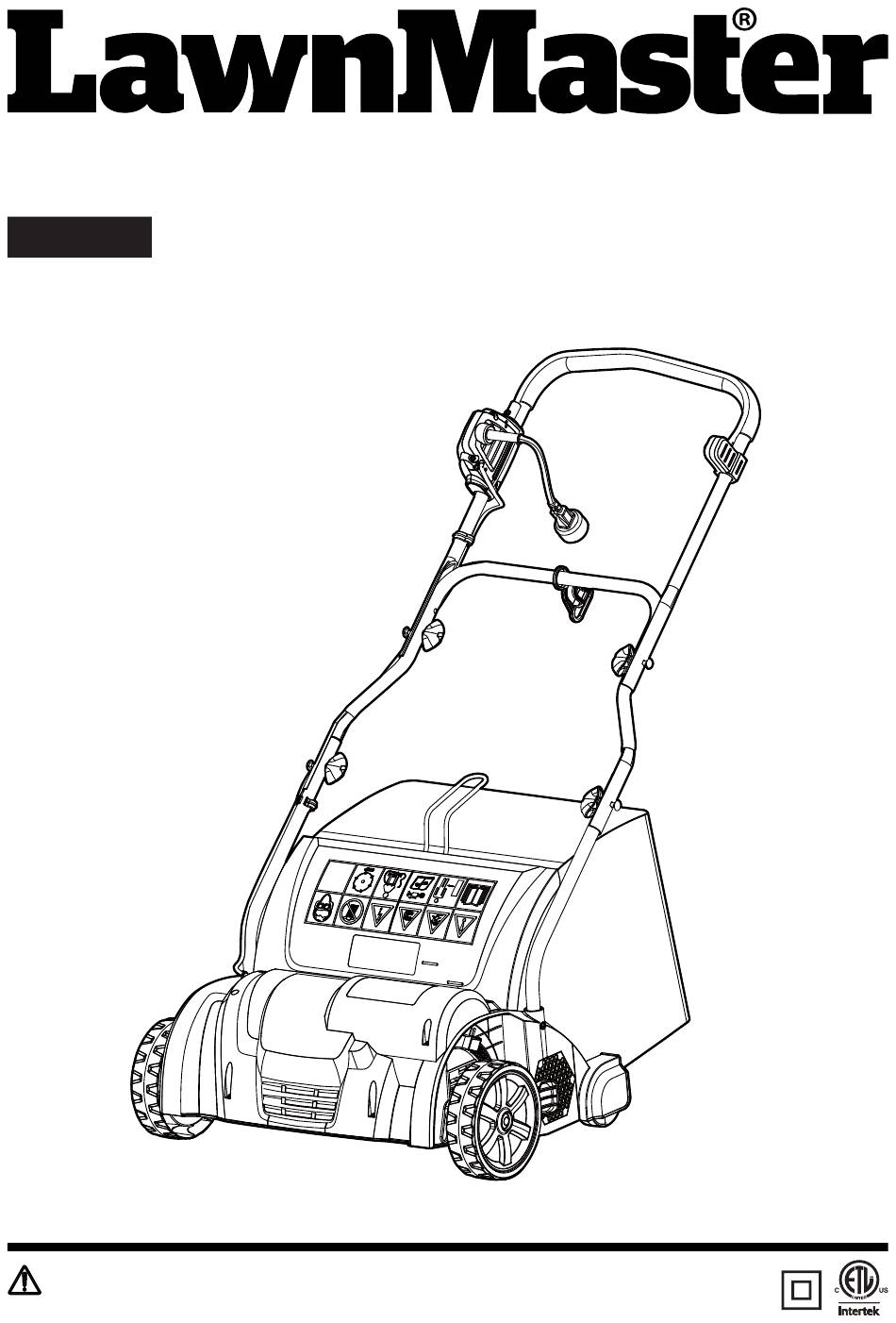

Operator's Manual
EN p. 2
Read all safety rules and instructions carefully before operating this tool.
Distributed By
Suzhou Cleva Electric Appliance Co., Ltd. NO.8 Ting Rong Street 215122 Suzhou - China
15" 12.5 Amp Scarifier and Lawn Dethatcher GV1314
Save this manual for future reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GV1314 and is the answer not in the manual?

Questions and answers

Summary of Contents for LawnMaster GV1314

  • Page 1 Operator's Manual EN p. 2 15" 12.5 Amp Scarifier and Lawn Dethatcher GV1314 Save this manual for future reference Read all safety rules and instructions carefully before operating this tool. Distributed By Suzhou Cleva Electric Appliance Co., Ltd. NO.8 Ting Rong Street 215122 Suzhou - China...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Section Page TABLE OF CONTENTS SPECIFICATIONS IMPORTANT SAFETY INSTRUCTIONS SYMBOLS 9-10 KNOW YOUR SCARIFIER/DETHATCHER ASSEMBLY 12-15 OPERATION 16-19 MAINTENANCE 20-21 TROUBLESHOOTING 22-23 WARRANTY EXPLODED VIEW PARTS LIST NOTES...
  • Page 3: Specifications

    SPECIFICATIONS SCARIFIER/DETHATCHER GV1314 Voltage 120 V ~ 60 Hz Current 12.5 A Motor Speed 3700 RPM Deck Width 15 inch (380 mm) Cutting Width 14 inch (350 mm) Height Adjustment 19 positions: -0.39 - 0.19 inch (-10 - 5 mm) for Scarifier Cylinder 19 positions: -0.19 - 0.39 inch (-5 - 10 mm) for Aerator Cylinder...
  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below and on the tool may result in electric shock, fire, and/or serious personal injury. INTRODUCTION This product has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability have been given top priority in the design of this product making it easy to maintain and operate.
  • Page 5 IMPORTANT SAFETY INSTRUCTIONS polarized wall outlet. This plug will fit into the polarized wall outlet only one way. If the plug does not fit fully into the wall outlet, reverse the plug. If the plug still does not fit, contact a qualified electrician to install the proper wall outlet.
  • Page 6 IMPORTANT SAFETY INSTRUCTIONS ■ Thoroughly inspect the area where the equipment is to be used and remove all stones, sticks, wires, bones, and other foreign objects. ■ Never attempt to make a wheel height adjustment while the motor is running. ■...
  • Page 7 IMPORTANT SAFETY INSTRUCTIONS ELECTRICAL INFORMATION WARNING TO AVOID ELECTRICAL HAZARDS, FIRE HAZARDS, OR DAMAGE TO THE TOOL, USE PROPER CIRCUIT PROTECTION. YOUR SCARIFIER/DETHATCHER IS WIRED AT THE FACTORY FOR 120V OPERATION. CONNECT TO A 120 V, 15 A CIRCUIT, AND USE A 15 A TIME-DELAYED FUSE OR CIRCUIT BREAKER.
  • Page 8 IMPORTANT SAFETY INSTRUCTIONS Minimum Gauge for Extension Cords (AWG) (Using 120 V only) Total Length of Cord in Feet (meters) 25ft 50ft 100ft 150ft 120V (7.62m) (15.24m) (30.48m) (45.72m) Ampere Rating Not More More Than Than Not Recommended Make sure your extension cord is properly wired and in good electrical condition. Always replace a damaged extension cord or have it repaired by a qualified person before use.
  • Page 9: Symbols

    SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency(cycles per second)
  • Page 10 SYMBOLS SYMBOL NAME DESIGNATION/EXPLANATION Do not use the tool or leave it outdoors when it is Wet Conditions Alert raining. Wait until all moving parts have stopped completely Wait Until All Moving before touching them. The cutting tools may continue Parts Completely Stop to rotate after the tool is switched off;...
  • Page 11: Know Your Scarifier/Dethatcher

    KNOW YOUR SCARIFIER/DETHATCHER The safe use of this product requires an understanding of the information on the product and in this Operator’s Manual as well as a knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules. Components 1.
  • Page 12: Assembly

    ASSEMBLY This product requires assembly. ■ Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. ■ Inspect the product carefully to make sure no breakage or damage occurred during shipping. ■...
  • Page 13 ASSEMBLY WARNING Never operate the tool without the proper safety devices in place and working. Never operate the tool with damaged safety devices. Failure to heed this warning can result in serious personal injury. ASSEMBLING THE HANDLE (See Figs. 1-6) ■...
  • Page 14 ASSEMBLY ASSEMBLING THE COLLECTION BAG ■ Check the collection bag before assembling to make sure there is no damage. ■ Assemble the collection bag rods (Fig. 6). Fig. 6 Collection Bag Rods ■ Pull the collecting bag over the bag rods. ■...
  • Page 15 ASSEMBLY Fig. 8 Safety Guard Flap Motor Cover Socket Collection Bag Removing the collection bag: ■ Lift the safety guard flap and hold it in position. ■ Lift the grass collection bag by its handle, and remove it from the scarifier/dethatcher. ■...
  • Page 16: Operation

    OPERATION WARNING Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury. WARNING Do not switch on the tool until it has been completely assembled. Before switching on the tool, always check the power cord for signs of damage.
  • Page 17 OPERATION STARTING/STOPPING THE TOOL WARNING Before switching on the tool ensure that it is not in contact with any objects. Keep your feet and hands well away from the cylinder and the ejector opening. There is possible danger of injury! ■...
  • Page 18 OPERATION CHANGING THE CYLINDER The tool has two easily exchangeable work cylinders: an aerator cylinder made of hard plastic with vertically rotating spring tines, and a scarifier cylinder with vertically mounted high-grade steel knives. WARNING Switch off the tool, disconnect the mains plug and wait until the cylinder is standing still. WARNING Always wear gloves when handling the cylinder.
  • Page 19 OPERATION ■ Cut the grass to a height of about 40mm before scarifying. The lawn must be dry when using the tool. The best time for scarifying is any time during the vegetative season, from end of April through to September. Scarify it at least once a year. We recommend using a fertilizer straight after airing if you want a healthy lawn.
  • Page 20: Maintenance

    MAINTENANCE WARNING When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage. WARNING Always wear gloves when handling the cylinder. WARNING Prior to all maintenance and cleaning work always switch off the tool, disconnect the plug from the power socket and wait until the cylinder is standing still.
  • Page 21 MAINTENANCE STORAGE ■ Disconnect the tool from the power supply. ■ Store the tool in a clean, dry place out of the reach of children. ■ Allow the motor to cool down before placing the tool in a closed room. ■...
  • Page 22: Troubleshooting

    TROUBLESHOOTING Suspected malfunctions are often due to causes that the user can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorized service center or a similarly qualified specialist if you cannot solve the problem yourself! PROBLEM POSSIBLE CAUSE...
  • Page 23 TROUBLESHOOTING Blocked by a foreign Remove the foreign object. object. Motor fails. Mow beforehand. See Operation on Grass is too long. page 19. Clogged by debris. Clean debris. Spring tines of aerator Exchange the cylinder. cylinder worn out. Blades of scarifier cylinder Exchange the cylinder.
  • Page 24: Warranty

    WARRANTY ® We take pride in producing a high quality, durable product. This Lawnmaster product carries a limited two(2) year warranty against defects in workmanship and materials from date of purchase under normal household use. If product is to be used for commercial, industrial or rental use,a 30 day limited warranty will apply.
  • Page 25: Exploded View

    EXPLODED VIEW GV1314 EXPLODED VIEW...
  • Page 26: Parts List

    PARTS LIST Key Number Drawing Number Description Quantity 191021101 Start/stop bale switch 191021102 Safety switch assembly 111006139 Safety switch button 191005103 Rear wheel assembly 111308104 Front wheel assembly (170mm) 111005107 191005122 Scarifier cylinder 191021103 Aerator cylinder 191021104 Motor assembly 191005120 Drive belt 191021105 Collection bag...
  • Page 27: Notes

    NOTES...
