Hardware Installation and Reference Guide
Table 1-2
Component Modules

Chassis

RG-S6510-4C
Caution

Different power modules are interchangeable. That is, the switch allows concurrent AC
and DC input. For example, input 1 uses mains electricity (AC power) and input 2 use
Uninterrupted Power Supply (UPS) DC power.

Different expansion modules are interchangeable.
1.3
Chassis
The RG-S6510-4C hardware system consists of a chassis, a power supply system, and a
cooling system.

Power supply system: provides two power module slots and supports 1+1 power
redundancy.

Cooling system: provides four fan module slots and supports 2+1 fan redundancy.

Expansion module: provides four expansion module slots and supports two models.
1.3.1

Appearance

1. Appearance

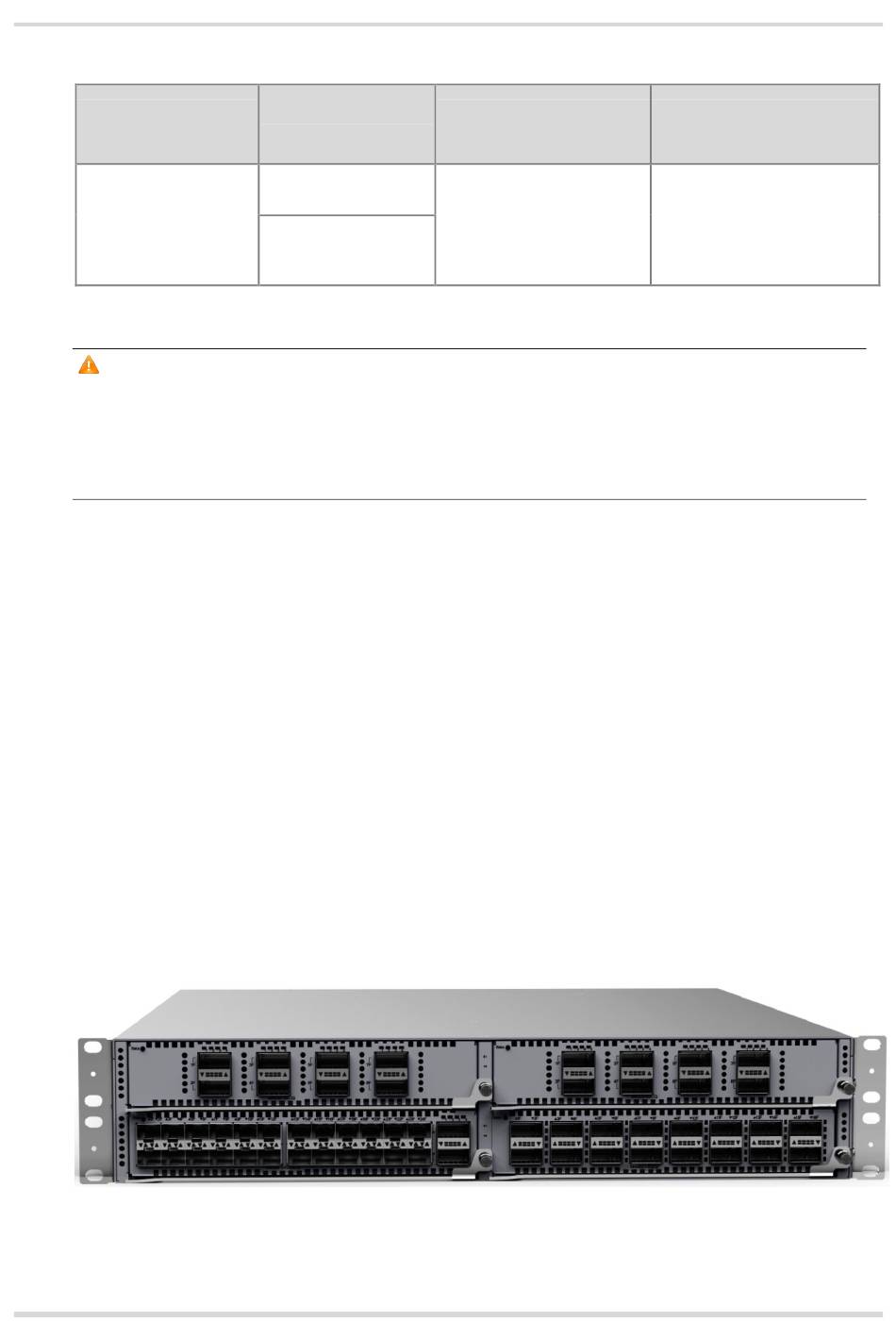

Figure 1-1
Front View of the RG-S6510-4C
Expansion
Module
M6500-08CQ
M6500-24VS2CQ
Power Module
RG-PA800I-F or
RG-PD800I-F
2
Overview
Fan Module
M6500-FAN-F
