after specification changes (such as immediately powering off and
restarting without returning to the normal display mode after
completing the operation settings), the changed specifications may
not be confirmed.
6.2 LCD display window
The transmitter has an LCD screen for variable display and setting

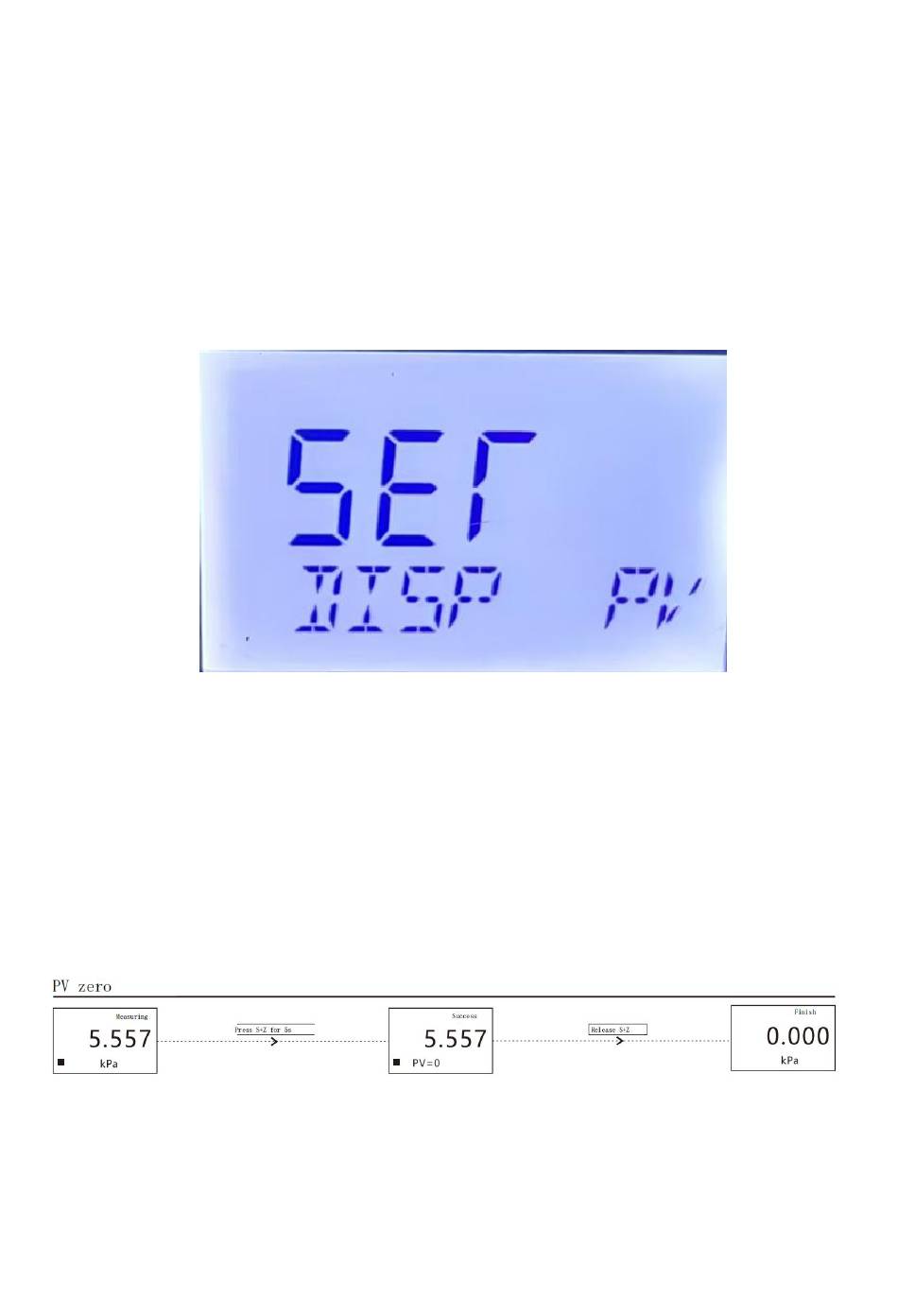

operations. The Primary variable setting mode is shown in Figure 15.
Figure 15 Contents of primary variable setting mode
6.3 Button operation
As
an
example,
pressure/differential pressure transmitter are as follows: measuring
range of -10kPa ～ 100kPa, operating in atmospheric conditions. The
quick operation diagram is shown below:
the
factory-set
15
specifications
for
