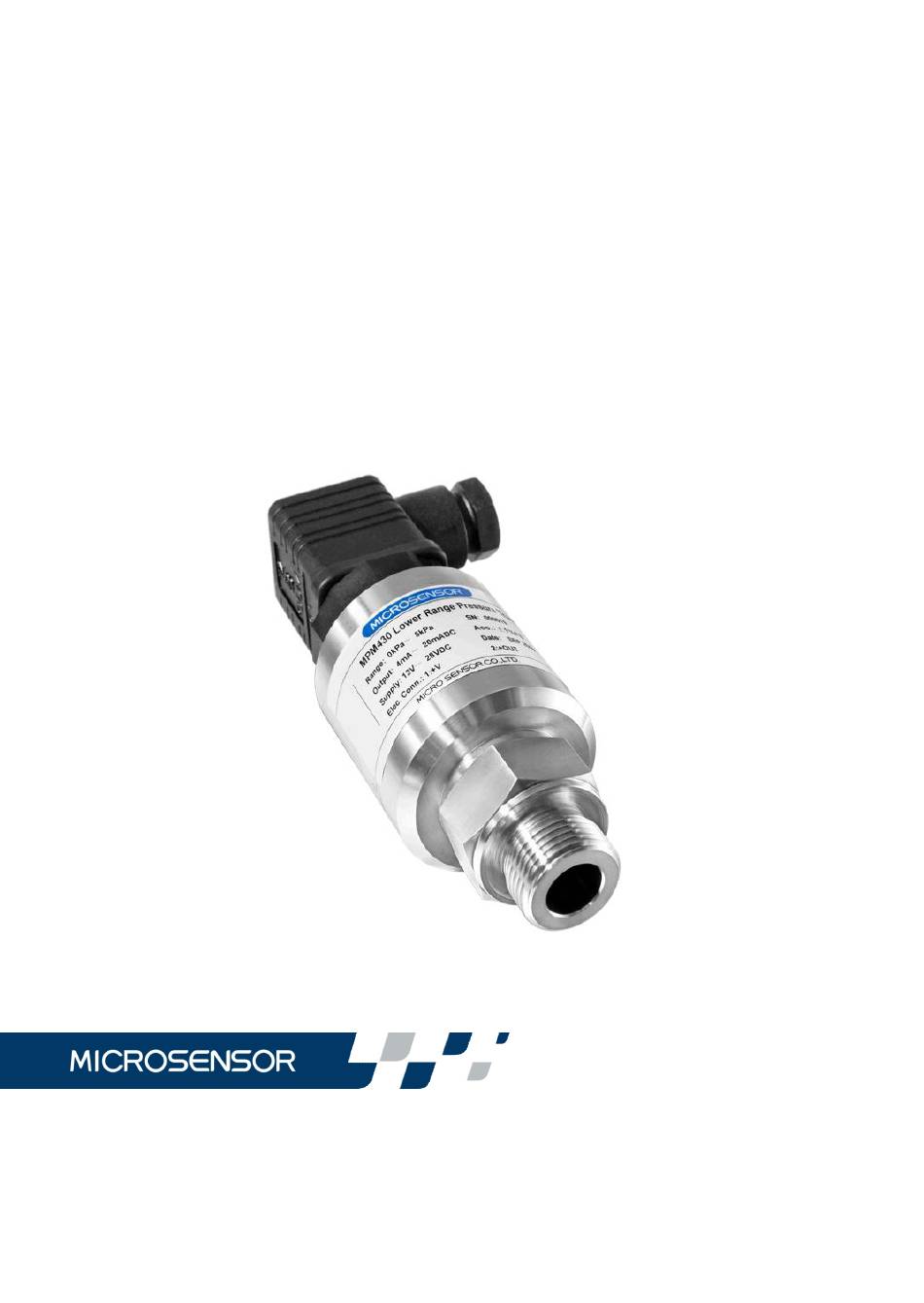

- Page 1 MPM430 Operation Manual...
- Page 2 Our company reserves the modification right for this operation manual due to renovation of production technology and craftwork. If some information is changed, no more notice will be edited. Please pay attention to the latest version. Our company also reserves the right of final explanation for this manual. Version: V1.0...

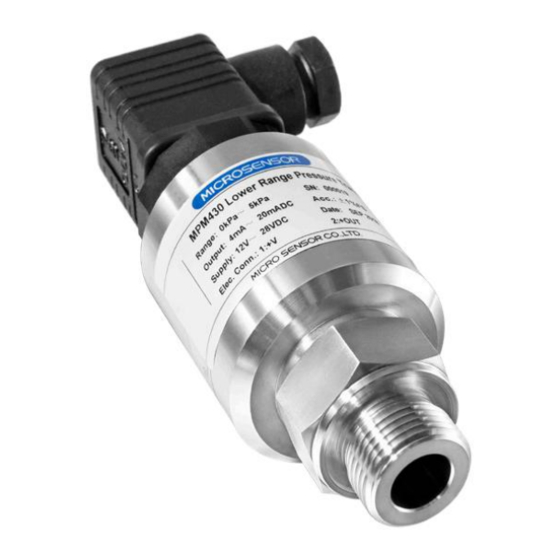

- Page 3 MPM430 lower pressure transmitter is developed especially to measur every lower pressure. It has good overpressure, good reliability, small temperature drift, convenient installation and long-term stability. The Explosion-proof version of MPM430 is an intrinsic safe version, conforming the standard of GB3836.1-2010 and GB3836.4-2010. Explode sign is ExiaIICT6Ga.
- Page 4 Operating temp.: -30℃~80℃(Plug) -20℃~70℃(cable material: PE, PVC) -20℃~80℃(cable material: PUR) -20℃~60℃(Intrinsic safe version) Storage Temp.: -40℃~120℃ -20℃~85℃(Cable) Shock Error:≤±0.01%FS (X,Y,Z 200Hz/g) Temp Error: ≤±0.15%FS/10℃ (-20℃~80℃) ≤±0.2%FS/10℃ (-30℃~-20℃) Load: ≤((U–12V)/20mA)–Rwire(kΩ) (Rwire is lead resistance(kΩ), U is power supply voltage(V)) Protection: IP65 3 Outline Construction and Installation 3.1 Outline dimension Unit:mm...
- Page 5 3.2 Installation 3.2.1 Attention before installation a) Please be sure the measuring pressure will not exceed the transmitter measurement range; b) Please be sure the measuring media is compatible with the construction material; Please be sure the measuring media will not jam the liquid leading hole.
- Page 6 a) The electric connection method of transmitter with Cable Connection to see Figure2 P/I Transmitter DC current Load 0V/OUT Input 20mA ～ Figure 2 b) The Electrical Connection Method of Explosion Proof Version Transmitter to see Figure3: Dangerous Area Safe Area Safe Power 24VDC...
- Page 7 Please be sure do not knock at the package violently, and protect the housing jacket and rubber bushing. 5.2 Thipment Enclosed MPM430 lower pressure transmitter Specified Plug(for the Plug Type) PVC or polyethylene cable(for the Cable Type) 1.5m or required...
