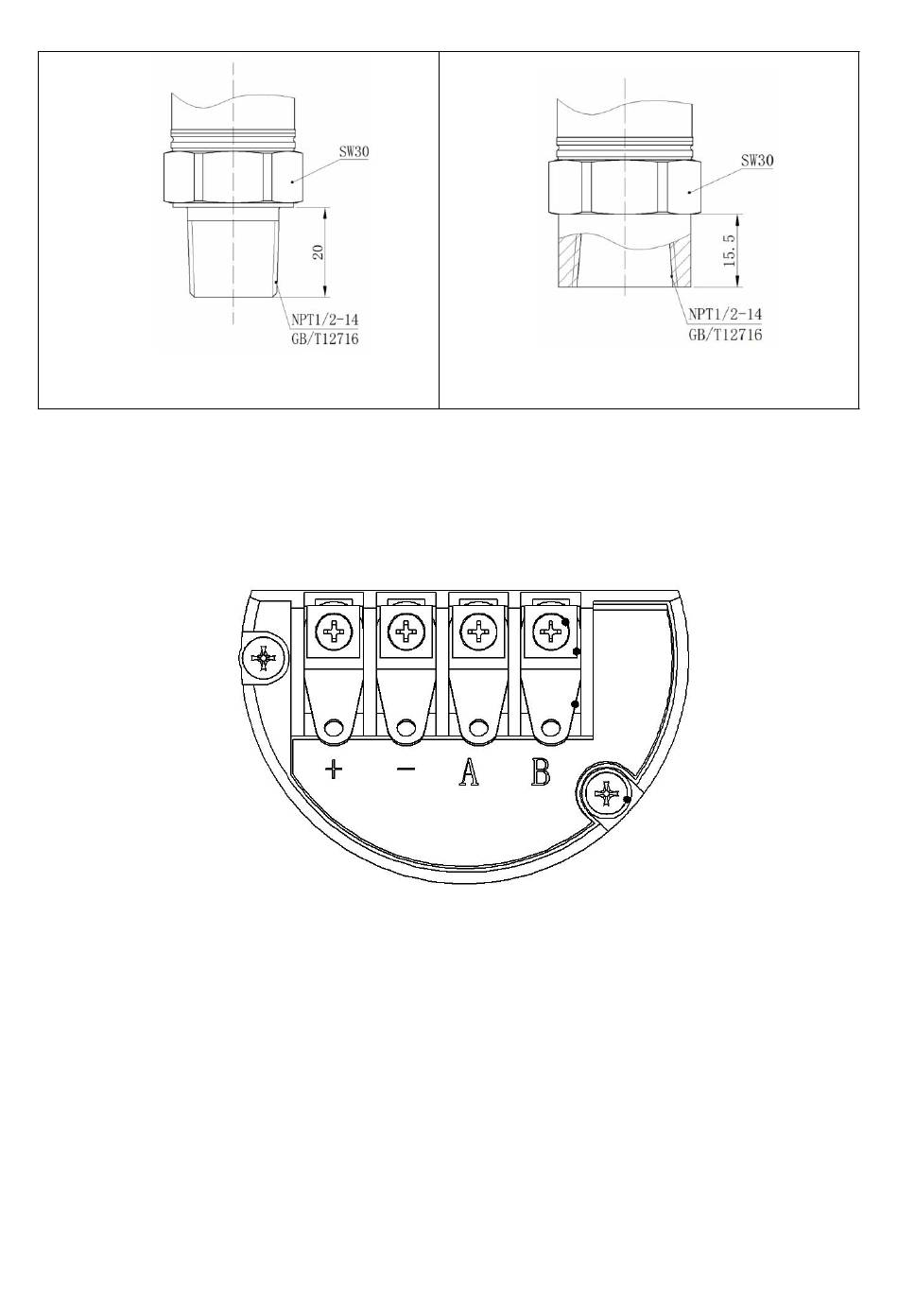

Figure 10
Figure 11

5 Electrical connection

5.1 Electrical connection
TEST LOOP
Figure 12
During electrical installation, relevant guidelines must be followed. As
the transmitter does not come with a power switch, overcurrent
protection or power cut-off devices must be configured.
Verify that the operating voltage aligns with the specifications indicated
on the nameplate. Electrical connection can be made via the NPT1/2
or M20×1.5 cable entry to the connection terminal.
10
