You can also rotate the INLET/OUTLET port by following the
further steps.
M3 x 14 7991DIN

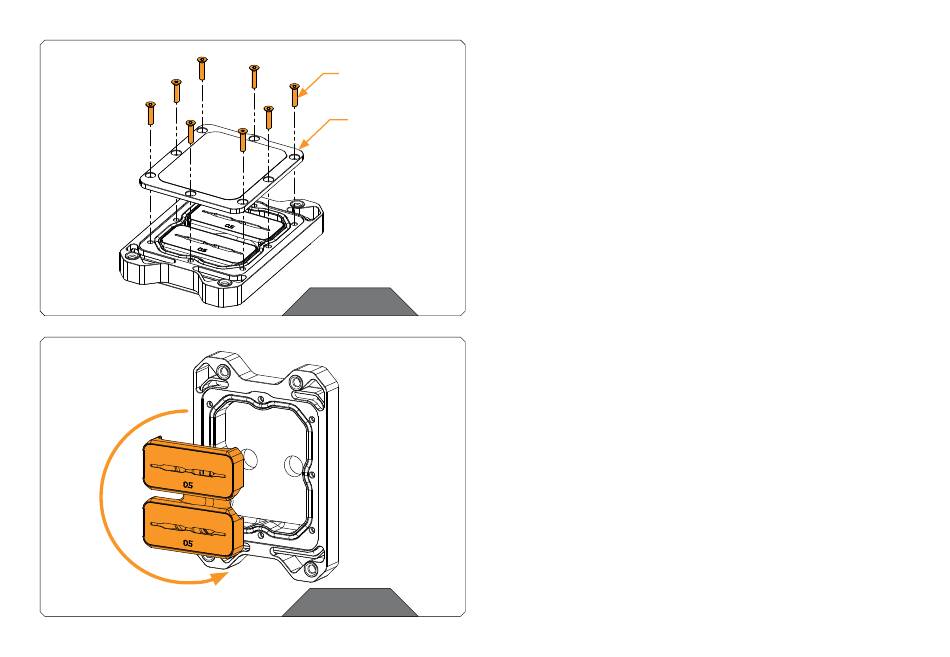

STEP 1
Unscrew the eight (8) M3X14 DIN7991 screws using the 2mm Allen
COLDPLATE
Key and remove the colplate from the water block (as shown on the
photo). Save the screws and coldplate for later use.
STEP 1
STEP 2
After removing the coldplate, take the brass insert and rotate it by
180° with all the O-Rings and jet plates (as shown on the photo).
STEP 2
