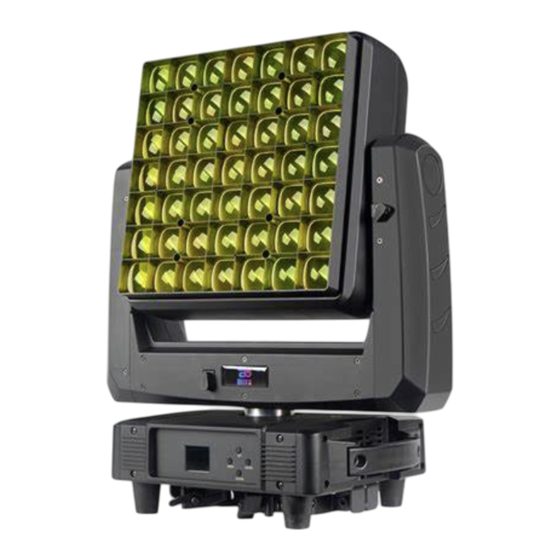

Osram 4920Z User Manual

49*20w matrix zoom moving head
Hide thumbs

Advertisement

Quick Links

Download this manual
4920Z
49*20w Matrix Zoom Moving Head
User manual
Please read the instructions carefully before use

Advertisement

loading
Need help?

Need help?

Do you have a question about the 4920Z and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Osram 4920Z

Summary of Contents for Osram 4920Z

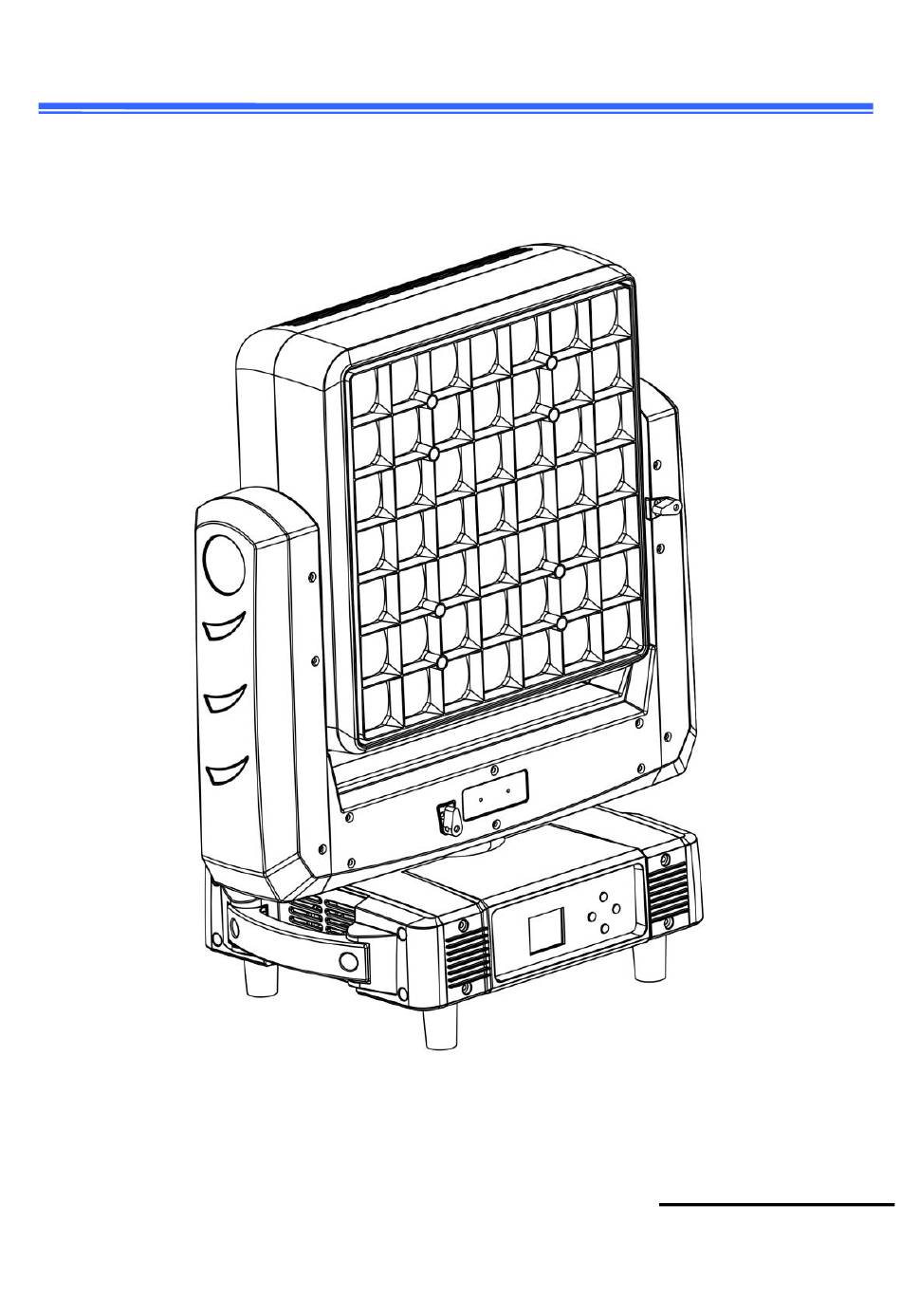

  • Page 1 4920Z 49*20w Matrix Zoom Moving Head User manual Please read the instructions carefully before use...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Safety Instructions ..................3- 4 2. Technical Specifications ..................5 3. Lux Date…………………………………………………………………..……….6 4. How To Control The Unit ..................7-9 5. DMX Channel List..................10-38 6. Shape.........................39 7. Trouble shooting ..................... 41 8. Fixture Cleaning ...................... 42 statement The product has well capability and intact packing when leave factory.

  • Page 3: Safety Instructions

    1. Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before  using the unit. Before operating, ensure that the voltage and frequency of power supply ...
  • Page 4 Warning: To prevent or reduce the risk of electrical shock or fire, do not expose the  unit to rain or moisture. Do not open the unit within five minutes after switching off.  The housing, the lenses, or the ultraviolet filter must be replaced if they are ...

  • Page 5: Technical Specifications

    2. Technical Specifications Light Sources 49*20W 4IN1 RGBW LED Beam Angle:4°- 46° Power Consumption: 760W±5%,power factor PF≥0.95; standby power: 26W Power Voltage: AC 100-240V, 50/60Hz Dimension: 477mm×272mm×579.5mm Net Weight:22.5 Kgs Carton package 1in1 size: 60*60*46cm Gross Weight: 27.2Kgs Flight Case 1in2 size: 79*56*79cm Gross Weight: 87.8Kgs Control DMX Channel:22/25/33/229/206 Channels...

  • Page 6: Lux Date

    kinds of effect macro function Led temperature protection & Speed of fan automatic adjustment based on the temperature of the head. Single led control, zoom effect, Tilt infinite rotation 3 LUX Date...

  • Page 7: How To Control The Unit

    4. How To Control The Unit Display: MENU To select the programming functions DOWN To go backward in the selected functions To go forward in the selected functions ENTER To confirm the selected functions Set DMX Address Code Press "Menu" to "Set DMX Address", and press "ENTER" keys to enter into Show "Set DMX Address DMX Address:001", Press the "UP and DOWN"...
  • Page 8 3.Language English Chinese 4.No Signal 1.Black Out 2.Hold 5.Fan Set 1.Auto 2. Low 3.High 6.ArtNet Set 1.ON 2.OFF ArtNet Enable ： 2.Universe:0---255 Menu A.2.X.X.X Auto 3.IP Mode ： B.10.X.X.X Auto C.Custom 4.Custom IP 192.168.000.001 5.SubNetMask 255.000.000.000 7.Reset Reset 8.Default Default Pass Word ：...
  • Page 9 1.Yes 2.No 1.Yes Forward or Tilt 2.No Reverse reversed setting 1.Yes Display 2.No 1.CH Each channel show CH Value value 2.Temp Show the temperature of led board ____ ℃ 3.Soft Show the version Information V.XXX number 4.IP 002.016.035.052 Default IP 5.Mask 255.000.000.000 Default submask...
  • Page 10 3.Tilt:0--255 4.Tilt Rotation ： 0--255 5.Focus:0--255 Mode Manual control Manual control 6.Red1 ： 0--255 7.Greed1 ： 0--255 8.Blue1 ： 0--255 9.White1 ： 0--255 10.Strobe1 ： 0-255 11.Red2 ： 0--255 12.Greed2 ： 0--255 13.Blue2 ： 0--255 14.White2 ： 0--255 15.Strobe2 ： 0-255 1.Master Alone/Master Alone/Master...

  • Page 11: Dmx Channel List

    5.DMX Channel List Model 1 - 22Channels Channel Display Function Value CH-1 Red dimming 0 --- 255 CH-2 Red adjustment Red adjustment 0 --- 255 CH-3 Green Green dimming 0 --- 255 CH-4 Green adjustment Green adjustment 0 --- 255 CH-5 Blue Blue dimming...
  • Page 12 CH-10 Macro color Macro color 24 240--249 Macro color 25 250--255 CH-11 Dimmer dark to bright linear dimming 0 --- 255 CH-12 Dimmer adjust Dimmer adjustment control 0 --- 255 Turn on the light 0---3 CH-13 Strobe Synchro strobe speed slow to fast (1HZ-25HZ) 4---203 Random strobe...
  • Page 13 Mode -2 50 --- 99 CH-21 Dimming Mode Mode -3 100---149 Mode -4 150---255 0-250 CH-22 Reset Reset within 5s 251---255 Model 2 - 25Channels Channel Display Function Value CH-1 Pan control 0 --- 255 CH-2 Pan adjustment Pan adjustment control 0 --- 255 CH-3 Tilt...
  • Page 14 Turn on the light 0---3 Synchro strobe speed 4---203 CH-9 Strobe From slow to fast (1HZ-25HZ) Random strobe 204--255 CH-10 R dimming dark to bright linear dimming 0-255 CH-11 G dimming dark to bright linear dimming 0-255 CH-12 B dimming dark to bright linear dimming 0-255 CH-13...
  • Page 15 CH-16 Static pattern ..(3 numbers 1 pattern) ..pattern 59 174--176 pattern 60 177--255 0--9 dynamic pattern 1 10--11 dynamic pattern 2 12--13 ..(2 numbers 1 pattern) ..dynamic pattern 93 194--195 CH-17 Dynamic dynamic pattern 94 196--255 pattern Pattern translation CH-18 Select a dynamic pattern scene...
  • Page 16 CH-23 Back color W dark to bright linear dimming 0-255 CH-24 Mode -1 0 --- 49 Mode -2 50 --- 99 Dimming Mode Mode -3 100---149 Mode -4 150---255 0-250 CH-25 Reset Reset within 5s 251-255 Model 3 - 33Channel Channel Display Function...
  • Page 17 fast CH-7 Zoom Zoom 0-255 CH-8 Dimmer dark to bright linear 0 --- 255 dimming CH-9 Dimmer adjust Dimmer adjusting 0 --- 255 control CH-10 No effect 0---3 Strobe Synchro strobe speed 4---203 From slow to fast (1HZ-25HZ) Random strobe 204--255 CH-11 Red dimming...
  • Page 18 Dimming Mode Mode -3 100---149 Mode -4 150---255 CH-20 linear color No effect 0---4 temperature Color temperature 5---255 from warm to cold No effect 0--9 Macro color 1 10--19 CH-21 Macro color Macro color 2 20--29 ..(10 numbers 1 ..macro color) Macro color 24 240--249...
  • Page 19 CH-23 Dynamic pattern No effect 0--9 dynamic pattern 1 10--11 dynamic pattern 2 12--13 ....(2 numbers and one type) dynamic pattern 93 194--195 dynamic pattern 94 196--255 CH-24 Pattern translation Select a dynamic 0--255 (with 23 channels) pattern scene CH-25 Dynamic pattern 0--9...
  • Page 20 CH-31 Pattern Back B Pattern effect B 0-255 CH-32 Pattern Back W Pattern effect W 0-255 CH-33 Reset No effect 0-250 Reset within 5S 251-255 Model 4 - 229Channels Channel Display Function Value CH-1 Pan control 0 --- 255 CH-2 Pan adjustment Pan adjustment 0 --- 255...
  • Page 21 CH-8 Dimmer dark to bright linear 0 --- 255 dimming CH-9 Dimmer adjust Dimmer adjusting 0 --- 255 control CH-10 No effect 0---3 Strobe Synchro strobe speed 4---203 From slow to fast (1HZ-25HZ) Random strobe 204--255 CH-11 Red dimming 0-255 CH-12 Red adjustment Red adjustment...
  • Page 22 CH-20 linear color No effect 0---4 temperature Color temperature 5---255 from warm to cold No effect 0--9 Macro color 1 10--19 CH-21 Macro color Macro color 2 20--29 ..(10 numbers 1 ..macro color) Macro color 24 240--249 Macro color 25 250--255 No effect 0--2...
  • Page 23 CH-23 Dynamic pattern No effect 0--9 dynamic pattern 1 10--11 dynamic pattern 2 12--13 ....(2 numbers and one type) dynamic pattern 93 194--195 dynamic pattern 94 196--255 CH-24 Pattern translation Select a dynamic 0--255 (with 23 channels) pattern scene CH-25 Dynamic pattern 0--9...
  • Page 24 CH-33 Reset No effect 0-250 Reset within 5S 251-255 CH-34 R1 LED dimming 0--255 R1 LED dimming CH-35 G1 LED dimming 0--255 G1 LED dimming CH-36 B1 LED dimming 0--255 B1 LED dimming CH-37 W1 LED dimming 0--255 W1 LED dimming ..
  • Page 25 Model 5-206Channels (combined with ArtNet,1~10 channels are controlled by ordinary DMX512 , 11~206channels are controlled by ArtNet ) Channel Display Function Value CH-1 Pan control 0 --- 255 CH-2 Pan adjustment Pan adjustment 0 --- 255 control CH-3 Tilt Pan control 0 --- 255 CH-4 Tilt adjustment...
  • Page 26 dimming CH-10 No effect 0---3 Strobe Synchro strobe speed 4---203 From slow to fast (1HZ-25HZ) Random strobe 204--255 dynamic pattern 93 194--195 dynamic pattern 94 196--255 CH-11 R1 LED dimming 0--255 R1 LED dimming CH-12 G1 LED dimming 0--255 G1 LED dimming CH-13 B1 LED dimming 0--255...

  • Page 27: Shape

    6. Shape...

  • Page 28: Trouble Shooting

    7. Trouble shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2.

  • Page 29: Fixture Cleaning

    2. The motor’s drive IC on the PCB might be out of condition. 8. Fixture Cleaning The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics.
