www.osram-americas.com
PermaLED
INSTALLATION GUIDE
PLEASE READ ALL INSTRUCTIONS BEFORE ATTEMPTING INSTALLATION
TO PREVENT PERSONAL INJURY OR PRODUCT DAMAGE ONLY LICENSED ELECTRICIANS SHOULD
PROVIDE ALL INSTALLATION SERVICES.
TO AVOID ELECTRIC SHOCK OR COMPONENT DAMAGE DISCONNECT POWER BEFORE ATTEMPTING
INSTALLATION OR SERVICING.
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE NATIONAL ELECTRIC CODE (NEC)
AND ALL APPLICABLE FEDERAL, STATE AND LOCAL ELECTRIC CODES AND SAFETY STANDARDS.
USE CAUTION WHEN HANDLING THIS PRODUCT DURING OR AFTER OPERATION AS IT MAY BECOME
HOT AND CAUSE BURNS. DISCONNECT PRODUCT AND ALLOW COOLING PRIOR TO SERVICING.
ANY ALTERATION OR MODIFICATION OF THIS PRODUCT IS EXPRESSLY FORBIDDEN AS IT MAY CAUSE
SERIOUS PERSONAL INJURY, DEATH, PROPERTY DAMAGE AND/OR PRODUCT MALFUNCTION.
TO PREVENT PRODUCT MALFUNCTION AND / OR ELECTRICAL SHOCK THIS PRODUCT MUST BE
PROPERLY GROUNDED.
THIS LUMINAIRE IS DESIGNED TO OPERATE IN AMBIENT TEMPERATURES RANGING FROM -4 C TO 4 C
THIS PRODUCT IS SUITABLE FOR WET LOCATIONS.
®

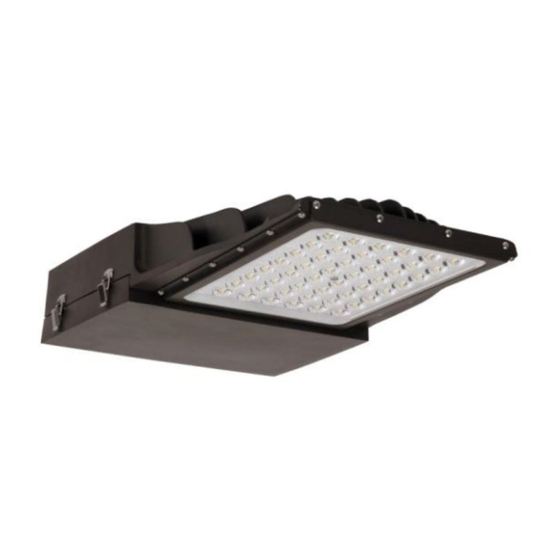

Area Light – Medium & Small
!
WARNING
PermaLED Area Light luminaires are environmentally
preferable, LED alternatives to traditional high-intensity
discharge luminaires with up to 450W HID leading to
energy savings of up to 75% compared to HID.
The luminaires are available with 2 integrated control
options of either a standard photosensor or a dual-
technology motion and photocontrol sensor and provides
up to 10kV surge protection for effective suppression of
most transient AC line surges. Luminaires are ETL listed
in the United States and Canada, assembled in the USA
and backed by a 5 year warranty.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Osram PermaLED® Area Light Medium
Summary of Contents for Osram PermaLED® Area Light Medium
- Page 1 ® Area Light – Medium & Small PermaLED INSTALLATION GUIDE PermaLED Area Light luminaires are environmentally preferable, LED alternatives to traditional high-intensity discharge luminaires with up to 450W HID leading to energy savings of up to 75% compared to HID.
- Page 2 UNPACKING Thoroughly inspect the fixture for freight damage. Freight damage should be reported to the delivery carrier. Compare the catalog/model number description on the packing slip with the fixture label to assure that you have received the correct product. INSTALLATION 1.
- Page 3 2. Attach arm to pole using hardware provided – thread 1/2” -13 x 1 ¾” hex head cap screw through flat washer and pole and then through mounting arm, flat washer, lock washer and nut. Tighten nuts to 236 in- lbs.
- Page 4 Arm attachment to fixture (round arm, square arm or horizontal tenon) 4. Re-latch power supply compartment latches. 5. Connect supply leads to 14 AWG stranded wiring cable provided. 6. Attach arm cover using screws provided. Pole template: Mounting hole dimensions 7”...
- Page 5 Horizontal Tenon Drawing: Exploded view Note: Mounts to 1 ¼ - 2” horizontal tenon...
- Page 6 WIRING DIAGRAMS Area Light- No integrated Controls Area Light- Integrated Controls...
- Page 7 Area Light- With Photocell Receptacle CLEANING AND MAINTENANCE WARNING Risk of electric shock Disconnect power before servicing To maintain the fixture efficacy, an occasional cleaning of the outer lens surface may be needed Use a mild soap or detergent, which is essentially neutral pH, nonabrasive, and which contains no chlorinated or aromatic hydrocarbons.
