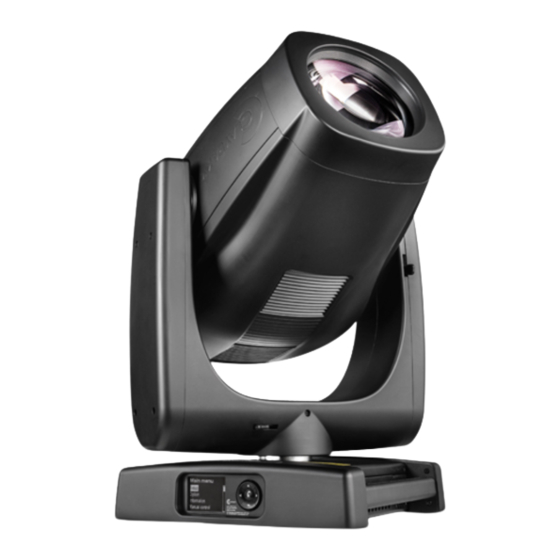

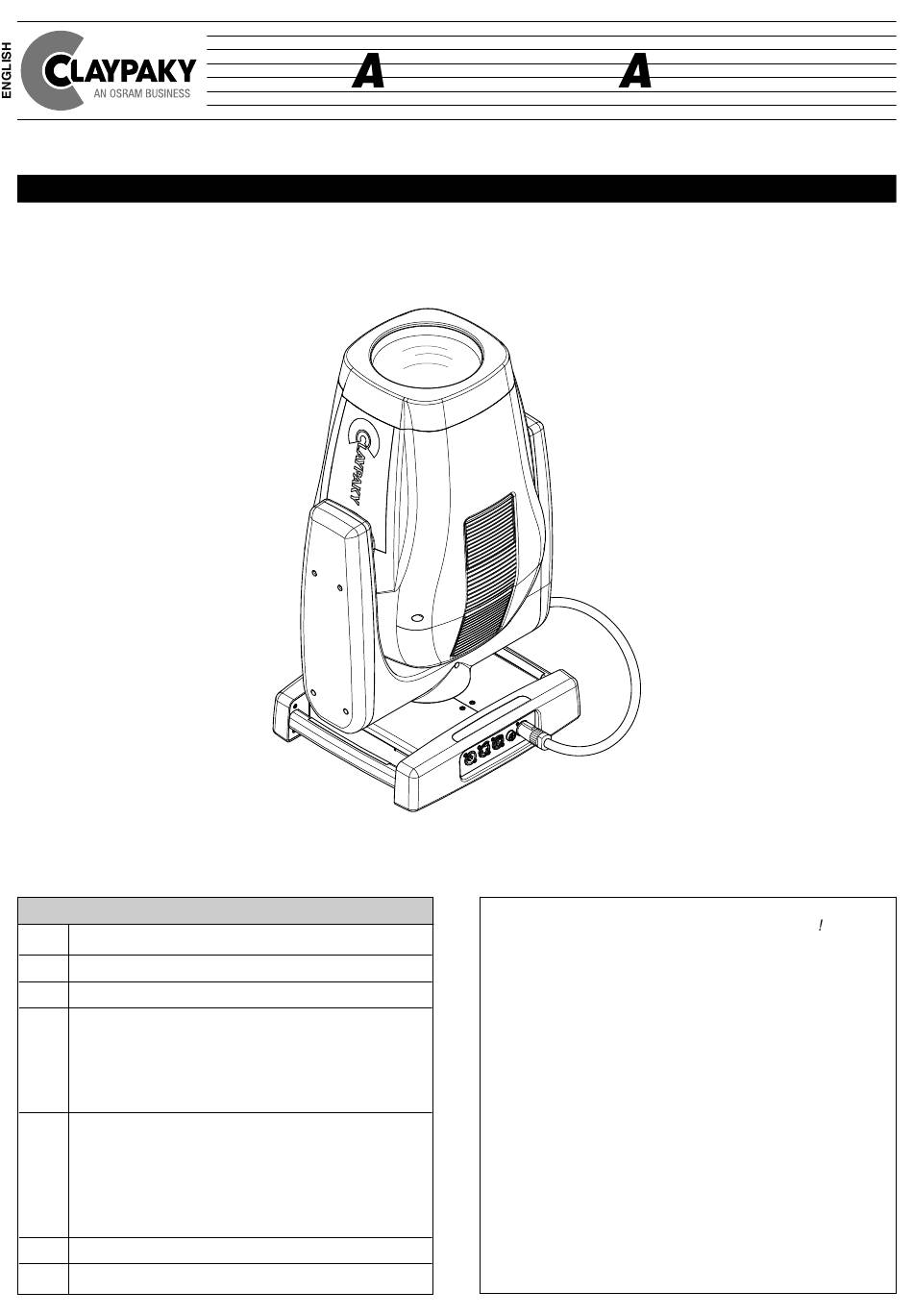

SH RPY X FR ME CD3003 INSTRUCTION MANUAL INDEX Congratulations on choosing a Claypaky product Page Contents We thank you for your custom. Safety information Please note that this product, as all the others in the Unpacking and preparation rich Claypaky range, has been designed and made with total quality to ensure excellent performance and best Installation and start-up 3.1 Installing the fixture...
1. SAFETY INFORMATION SAFETY INFORMATION IMPORTANT: Claypaky recommends you carefully read and keep the safety information on this product, also available in digital format at the following link: www.claypaky.com Ref: FIS027 - Safety Information Sharpy X Frame INFORMAZIONI DI SICUREZZA IMPORTANTE: Claypaky raccomanda di leggere accuratamente e conservare le informazioni di sicurezza relative a questo prodotto, sempre reperibili in versione digitale al seguente link: www.claypaky.com...
3. INSTALLATION AND START-UP 3.1 Installing the fixture Installing the projector - Fig. 4 The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall. WARNING: with the exception of when the projector is positioned on the floor, the safety cable must be fitted. (Cod. 105041/003 available on request). This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base.
3.2 Connecting to manis supply Connecting and disconnecting power cable - Fig. 6 Mains Connecting to the mains supply - Fig. 7 Continue SH RPY X FR ME...
3.4 Switching on the fixture and basic SetUp Dmx Address Warning Message Switching on the projector - Fig. 9 Switch-on the fixture. The projector starts resetting the effects. At the same time, the following information scrolls on the display: Model Firmware Dmx Address xxx Sharpy X...
Page 7
Functions of the buttons - Using the menu Confirms the displayed value, or activates the displayed function, or enters the successive menu. Decreases the value displayed (with auto-repetitions) or passes to the next item in the menu. DOWN Increases the value displayed (with auto-repetitions) or passes to the previous item in a menu. Return to the top level LEFT Enters the successive menu.
4. MAINTENANCE 4.1 Opening the covers 1/4 Turn 1/4 Turn Locking and releasing Pan and Tilt movements - Refer to the instructions in the UNPACKING AND PREPARATION section. Opening the head covers - Fig. 11. Closing the head covers - Fig. 12. SH RPY X FR ME...
4.2 Periodical cleaning Upper side NOTE: keep a careful cleaning of the ''CMY/colour filters assembly'' to prevent rapid deterioration. Light collimation system This product contains internal light collimation system. Avoid intense light from any angle. Lower side Periodical cleaning - Fig. 13 To ensure optimal operation and performance for a long time it is essential to periodically clean the parts subject to dust and grease deposits.
4.3 Effects module removal Upper side Extraction of the effect modules - Fig. 14. IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 14, 15 and 16 in reverse order. SH RPY X FR ME...
Page 11
Upper side Extraction of the effect modules - Fig. 15. IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 14, 15 and 16 in reverse order. Continue SH RPY X FR ME...
Page 12
Cleaning of the grids - Fig. 16. SH RPY X FR ME...
Page 13
Lower Side 1/4 Turn ADJUST ADJUST Lamp change - Fig 17. Take the new lamp out of its package and insert in the fitting. WARNING: do not touch the lamp s envelope with bare hands. Should this happen, clean the bulb with a cloth soaked in alcohol and dry it with a clean, dry cloth.
Page 14
4.4 - Rotating gobos Bearing group replacement - Fig. 18 Gobo 5 Gobo 4 INDEX Gobo 6 Gobo 3 Gobo 7 Gobo 2 Gobo 8 Gobo 1 Replacing rotating gobos (ø 19 mm – max 14.5 mm image – thickness 1.1 mm) - Fig. 19 - The rotating gobo wheel only use dichroic glass gobos (it is not possible to use metal gobos);...
4.5 - Battery removal This product contains a rechargeable battery. To preserve the environment, please dispose the battery at the end of its life according to the regulation in force. SH RPY X FR ME...
5. DIMENSIONS (22.05") (19.09") (15.98") (26.30") (22.04") (13.78") (12.05") 6. CAUSE AND SOLUTION OF PROBLEMS THE PROJECTOR WILL NOT SWITCH ON ELECTRONICS NON-OPERATIONAL PROBLEMS DEFECTIVE PROJECTION REDUCED LUMINOSITY POSSIBLE CAUSES CHECKS AND REMEDIES No mains supply. Check the power supply voltage. Light source exhausted or defective.
