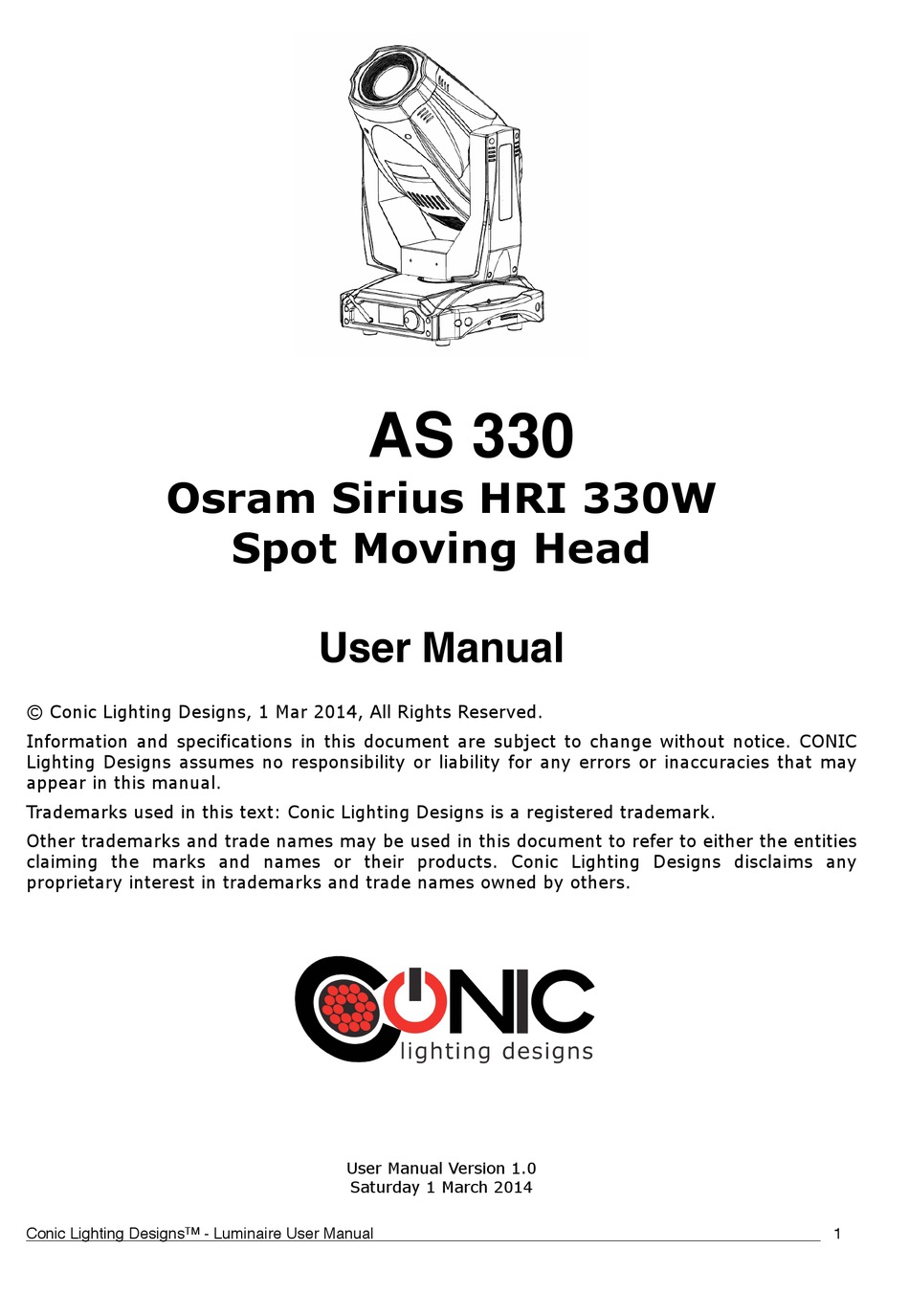

  • Page 1 ! AS 330 ! Osram Sirius HRI 330W Spot Moving Head User Manual! © Conic Lighting Designs, 1 Mar 2014, All Rights Reserved. Information and specifications in this document are subject to change without notice. CONIC Lighting Designs assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual.
  • Page 2 Contacting Conic Lighting Designs Sales Department Conic Lighting Designs. 803A, 8/F Far East Consortium Building 121 Des Voeux Rd. Central, Hong Kong e-mail: conic@conicld.com sales@conicld.com Customer Service Conic Lighting Designs 803A, 8/F Far East Consortium Building 121 Des Voeux Rd. Central, Hong Kong e-mail: support@conicld.com Website http://www.conicld.com...

  • Page 3: Warranty Information

    Important Safety Information Instructions pertaining to continued protection against fire, electric shock, and injury to persons are found in Appendix A. Please read all instructions prior to assembling, mounting, and operating this equipment. Información Importante De Seguridad En el Apéndice A se encuentran instrucciones sobre protección continua contra incendios, descarga eléctrica, y lesiones personales.

  • Page 4: Table Of Contents

    Table of Contents Chapter 1! Product Overview! Features ....................Operation ....................Construction ....................Related products and accessories ............Specifications ..................Physical specifications .................. Shipping dimensions & weight ................Mounting information ................... Electrical/Optical information ................. Operation ....................Chapter 2! Setup and Configuration! Unpacking the fixture ................
  • Page 5 DMX Programming Overview ..............DMX512 Links ................... 8-bit vs. 16-bit DMX Parameters ..............Determining a DMX Start Channel ..............Protocol modes ................... DMX Protocols ..................DMX-1 mode: 16 channels ................Gobo & color index ................Appendix! Important Safety Information ............... Warning: For Continued Protection Against Fire ..........

  • Page 6: Product Overview

    Chapter 1! Product Overview The AS 330 is a very powerful luminaire, able to work as a spot. Offering from very narrow and bright 4º beam to an impressive 25º spot beam, its scan movement runs smoothly and fast. It comes with 2 gobo wheels, one fixed and one rotating, color wheel, 2 bi-directional rotative prisms, smooth dimming from 0-100%;...

  • Page 7: Specifications

    Specifications Physical specifications Fixture Dimensions: 375 mm x 461 mm x 662 mm Fixture Weight: 22,5 kg Shipping dimensions & weight Single fixture carton Dimensions: 450 mm x 430 mm x 730 mm Weight: 27,5 kg Flight case dimensions (2 pcs/case): Dimensions: 920 mm x 690 mm x 785 mm Weight: 96 Kg (Case + 2 Fixtures)

  • Page 8: Mounting Information

    It can also stand upright on a suitable and stable surface. Electrical/Optical information • Power Input: 100-240 VAC; 50-60 Hz; 460 W • Light Source: Osram Sirius HRI 330 watt • Beam Angle: 4º to 25º Operation • Pan 540º; Tilt 240º...

  • Page 9: Setup And Configuration

    Chapter 2! Setup and Configuration Use the following steps to set up and configure your fixture: 1. Unpack the fixture. 2. Install power cord cap for your location. 3. Mount the fixture upright or suspended from a standard truss. 4. Connect the fixture to a DMX controller via DMX cabling. 5.

  • Page 10: Mounting The Fixture

    Mounting the fixture This fixture can be mounted suspended from a support system (as a truss) or freestanding on its base. WARNING This equipment is suitable for dry locations only. Do not expose this equipment to rain or moisture. CAUTION: Always use a secondary safety cable when mounting this fixture.This fixture must be installed and operated by trained personnel only.

  • Page 11: Linking Fixtures

    Linking Fixtures Fixtures operate on a standard DMX512 link controlled by a DMX console. The number of fixtures on a link will be determined by the combined number of channels required by all the fixtures. A EBS 280 fixture using Standard protocol requires a maximum of 25 channels on a DMX512 link.

  • Page 12: Powering On The Fixture

    4. Terminate the link by installing a 120 ohm, 1/4 w a t t ( m i n i m u m ) terminator in the fixture’s Data Out (female) cable connector in the last fixture on each DMX link. A terminator on the last f i x t u r e o f t h e l i n k prevents data reflection, which can corrupt the data communication on the link.

  • Page 13: Chapter 3! The Menu System

    Chapter 3! The Menu System Menu navigation Access the menu system via the jog wheel on the fixture. The display will show the menu items you can select from the menu map. To access the menu system: press the <Enter>. To scroll the menu items: use the wheel.
  • Page 14 Level 1 Level 2 Level 3 Description 2222 Color adjust R.Gobo adjust S Gobo adjust Pan Adjust Tilt adjust Conic Lighting Designs - Luminaire User Manual! ! ! 14...

  • Page 15: Dmx Programming Basics

    Chapter 4! DMX Programming Basics DMX Programming Overview DMX512 Links A lighting console typically uses a DMX512 protocol to communicate with automated lighting fixtures and conventional dimmers. This protocol consists of 512 unique channels of control per output link (universe). Typically a lighting fixture or device will use a channel for each parameter’s function.

  • Page 16: Protocol Modes

    Protocol modes You can choose from several protocol modes for variable programming styles. Conic Lighting Designs is distributing the detailed DMX protocols as requested to console manufacturers to ensure that the fixture libraries are created in a method that allows optimum control of the fixture.
  • Page 17 Ch. # Function DMX Value Description 000-003 Open 004-007 Gobo 1 008-011 Gobo 2 012-115 Gobo 3 016-019 Gobo 4 020-023 Gobo 5 024-027 Gobo 6 028-031 Gobo 7 032-035 Gobo 8 036-039 Gobo 9 040-043 Gobo 10 044-047 Gobo 11 048-051 Gobo 12 052-101...
  • Page 18 Ch. # Function DMX Value Description 000-003 Empty 004-097 Clockwise rotation, decreasing speed 098-191 Counter clockwise, Increasing speed Animation rotation 192-207 Swing, Increasing speed (1,8º) 208-223 Swing, Increasing speed (7,2º) 224-239 Swing, Increasing speed (28,8º) 240-255 Swing, Increasing speed (57,6º) 000-084 Empty Prism...
  • Page 19 Ch. # Function DMX Value Description 000-013 Empty 014-024 XY movement blackout 025-035 Gobo, Iris shortcut blackout 036-046 Color blackout 047-’57 Prism blackout 058-068 Frost blackout 067-079 Empty 080-090 XY, Gobo, color, prism, frost blackout 091-101 Gobo, color, prism, frost blackout 102-112 LCD light (5s) 113-123...

  • Page 20: Gobo & Color Index

    Gobo & color index Rotating Gobo wheel Fixed Gobo wheel Color wheel Conic Lighting Designs - Luminaire User Manual! ! ! 20...

  • Page 21: Appendix

    Appendix Important Safety Information Warning: For Continued Protection Against Fire 1. This equipment is designed for use with specified components only. Use of any other type components may be hazardous and may void the warranty. 2. Do not mount on a flammable surface. 3.

  • Page 22: Apéndice : Información Importante De Seguridad

    Apéndice : Información Importante De Seguridad Advertencia: Para la protección continua contra incendios 1. Este equipo se ha diseñado para ser usado unicamente con componentes específicos. El uso de cualquier otro tipo de component puede resultar peligroso, y anula la garantía. 2.
