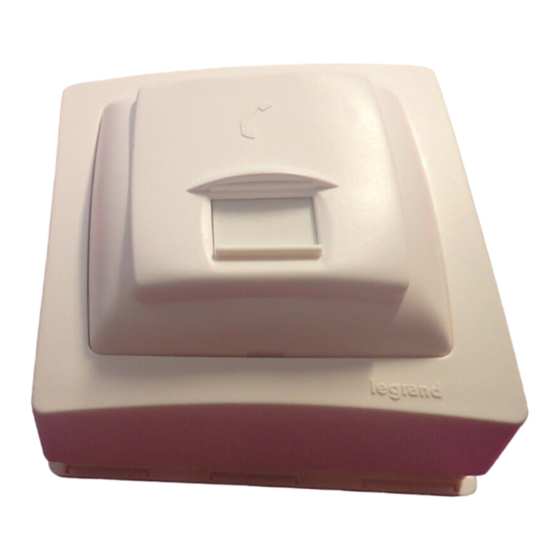

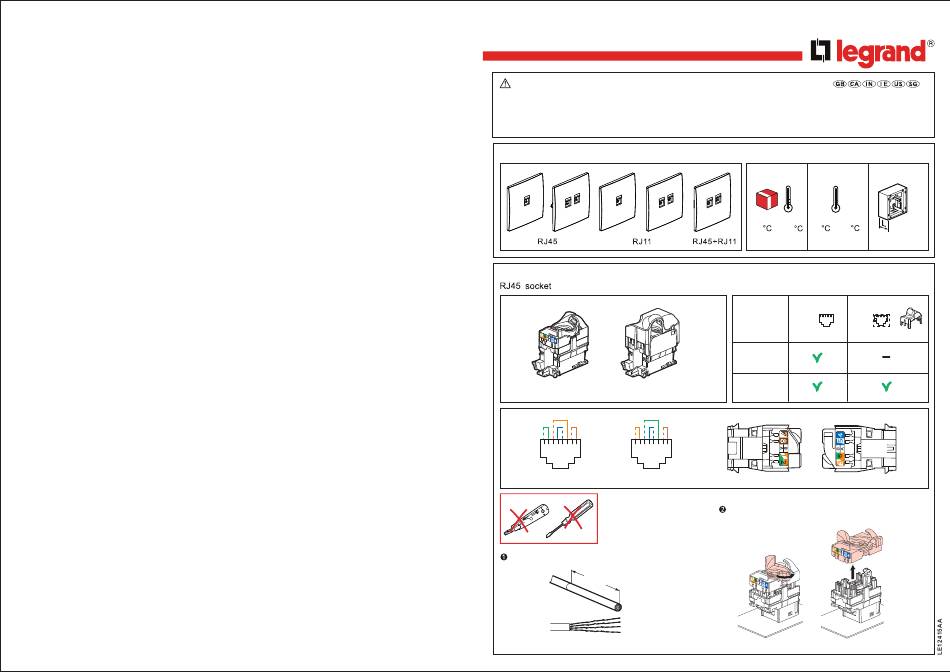

RJ45、RJ11 socket
2 811 58xx/2 811 59xx/2 811 60xx/2 811 61xx/2 811 62xx
2 811 63xx/2 811 64xx/2 811 65xx/2 811 66xx
2 811 58xx yy/2 811 59xx yy/2 811 60xx yy/2 811 61xx yy/2 811 62xx yy
2 811 63xx yy/2 811 64xx yy/2 811 65xx yy/2 811 66xx yy
Safety instructions
This product should be installed in compliance with installation rules, preferably by a qualified electrician.
Before carrying out the installation, read the instructions and take account of the product's specific mounting location.
Do not open up, dismantle, alter or modify the device except where specifically required to do so by the instructions.
All Legrand products must be opened and repaired exclusively by personnel trained and approved by Legrand. Any unauthorised opening or
repair completely cancels all liabilities and the rights to replacement and guarantees.
Use only Legrand brand accessories.
Presentation
Wiring
UTP
STP
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
EIA 568 A
EIA 568 B
Peel off outer sheath about 50mm in length.
50 mm
U/UTP
xx:MW MB MG DS DB CH BA BB BC
yy:MY SG
-20
...+70
-5
...+50
UTP
STP
Cat 5e
Cat 6
Turn the lock according to the direction
shown in the diagram to separate the cover.
1
≥40mm
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LEGRAND RJ45
Summary of Contents for LEGRAND RJ45
- Page 1 Do not open up, dismantle, alter or modify the device except where specifically required to do so by the instructions. All Legrand products must be opened and repaired exclusively by personnel trained and approved by Legrand. Any unauthorised opening or repair completely cancels all liabilities and the rights to replacement and guarantees.
- Page 2 Recombine the cover with the modnle and Insert the twisted pair and press all the wires When using a 2-core phone line connection, insert the phone lineinto the 4、5 slots in the middle rotate the lock to the locking position. into the presser cover in turn according to of the IDC terminal and then flipthe cover.
