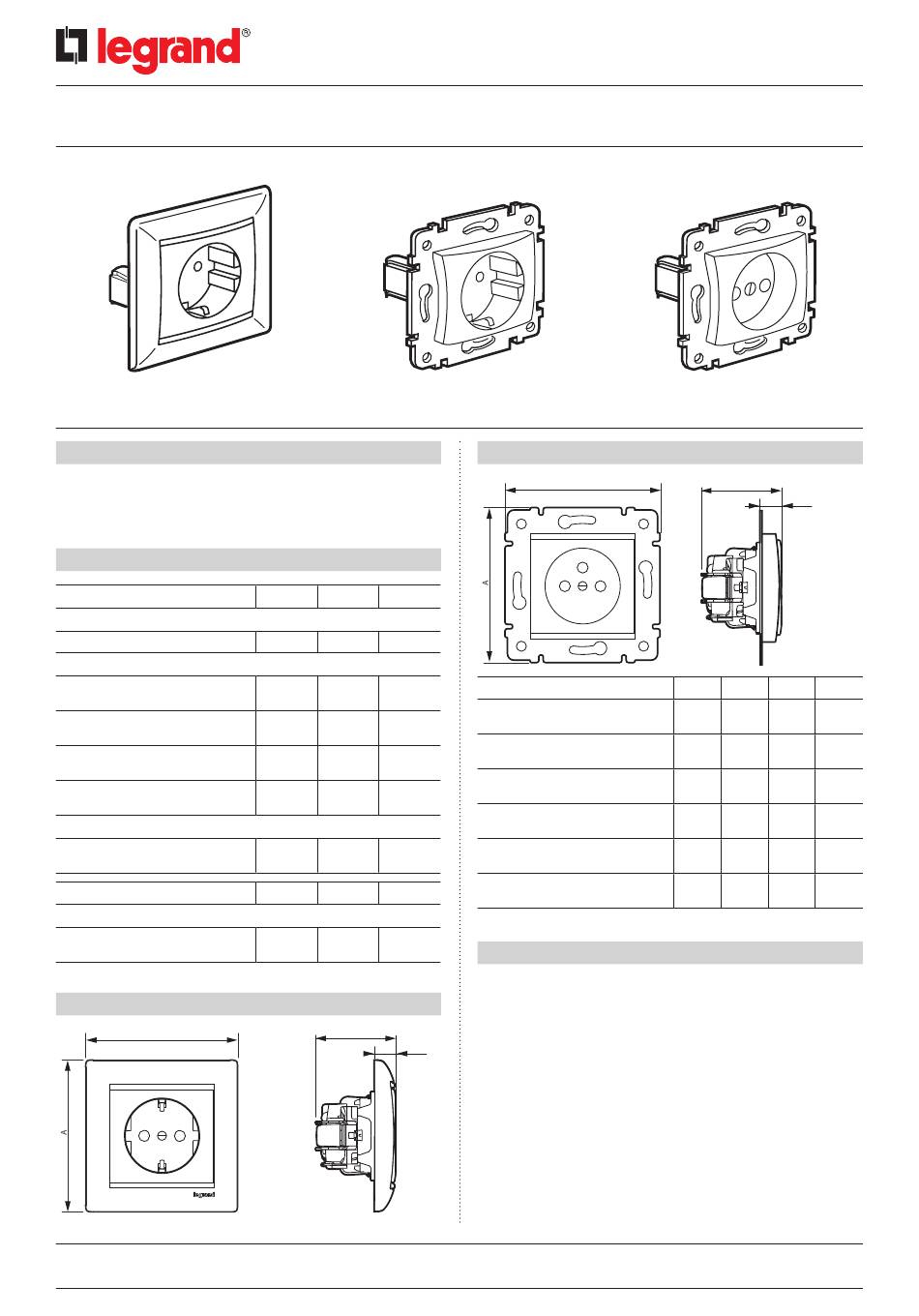

LEGRAND Valena 7 701 16 Quick Installation Instructions

Valena
TM
Socket outlets - German standard
7 744 23
1. USE
German standard 10/16 A - 250 V~ socket outlets.
To be equipped with plates.
Screw or claw fixing.
2. RANGE
Description
2 P socket outlets 10/16 A - 250 V~
2 P socket
2 P+E socket outlets 10/16 A - 250 V~
2 P+E socket with shutters
2 P+E socket without shutters
2 P+E socket outlets with flap
2 P+E socket with mechanical ejecting system for plug
2 P+E socket outlets 10/16 A - 250 V~ supplied complete
2 P+E socket, monobloc, with cover plate and plate
Description
2 P+E socket outlets 10/16 A - 250 V~ with coloured cover plate
2 P+E socket outlets with coloured cover plate
*7 743 27: Red with tamperproof
3. OVERALL DIMENSIONS (mm)
B
Technical data sheet: F02064EN/00
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tel: 0 (+33) 5 55 06 87 87 - Fax: 0 (+33) 5 55 06 88 88
www.legrand.com
Ivory White Aluminium
7 743 16 7 744 16 7 701 16
7 741 22 7 742 22 7 702 11
7 743 21 7 744 21 7 701 21
7 743 20 7 744 20 7 701 20
7 743 22 7 744 22 7 701 22
7 743 95 7 743 94 7 701 94
7 743 23 7 744 23 7 701 23
7 741 19 7 742 19 7 702 19
Red Green Orange
7 743 72 7 743 73
7 743 27*
C
D
Cat. No 7 744 23
Cat. No(s): 7 701 16/20/21/22/23/94 - 7 702 11/19
7 743 16/20/21/22/23/27/72/73/94/95 - 7 744 16/20/21/22/23
7 744 20
3. OVERALL DIMENSIONS (mm)
B
Socket outlets
7 743 16 - 7 744 16 - 7 701 16
7 741 22 - 7 742 22 - 7 702 11
7 743 21 - 7 744 21 - 7 701 21
7 743 20/94/95 - 7 744 20 - 7 701 20/94
7 743 22 - 7 744 22 - 7 701 22
7 743 23 - 7 744 23 - 7 701 23
7 741 19 - 7 742 19 - 7 702 19
7 743 27 - 7 743 72/73
4. CONNECTION
• Cat. Nos. 7 741 19/22 - 7 742 19/22 - 7 702 11/19
Automatic terminals
Capacity: 2 x 2.5 mm
2
Stripping length: 12 mm
Flexible or rigid cables compatible
• Cat. Nos. 7 743 20/21/22/23/27/72/73/94/95
7 744 20/21/22/23 - 7 701 20/21/22/23/94
Screw terminals
- For Ref. 7 743 23 - 7 744 23 - 7 701 23:
Capacity: 1 x 6 mm 2 - 2 x 4 mm
- For other Ref.:
Capacity: 2 x 2.5 mm
2
Stripping length: 10 mm
Screwdriver: Posidrive 1, Philips 1, flat 4 mm
Flexible or rigid cables compatible
Updated:
7 741 19/22 - 7 742 19/22
7 744 16
(continued)
C
D
A B C
71 71 40
71 71 43
71 71 43
71 71 43
82 82 43
71 71 43
2 - 3 x 2.5 mm 2
Created: 02/03/2015
D
12
12
12
12
12
12
1/2
