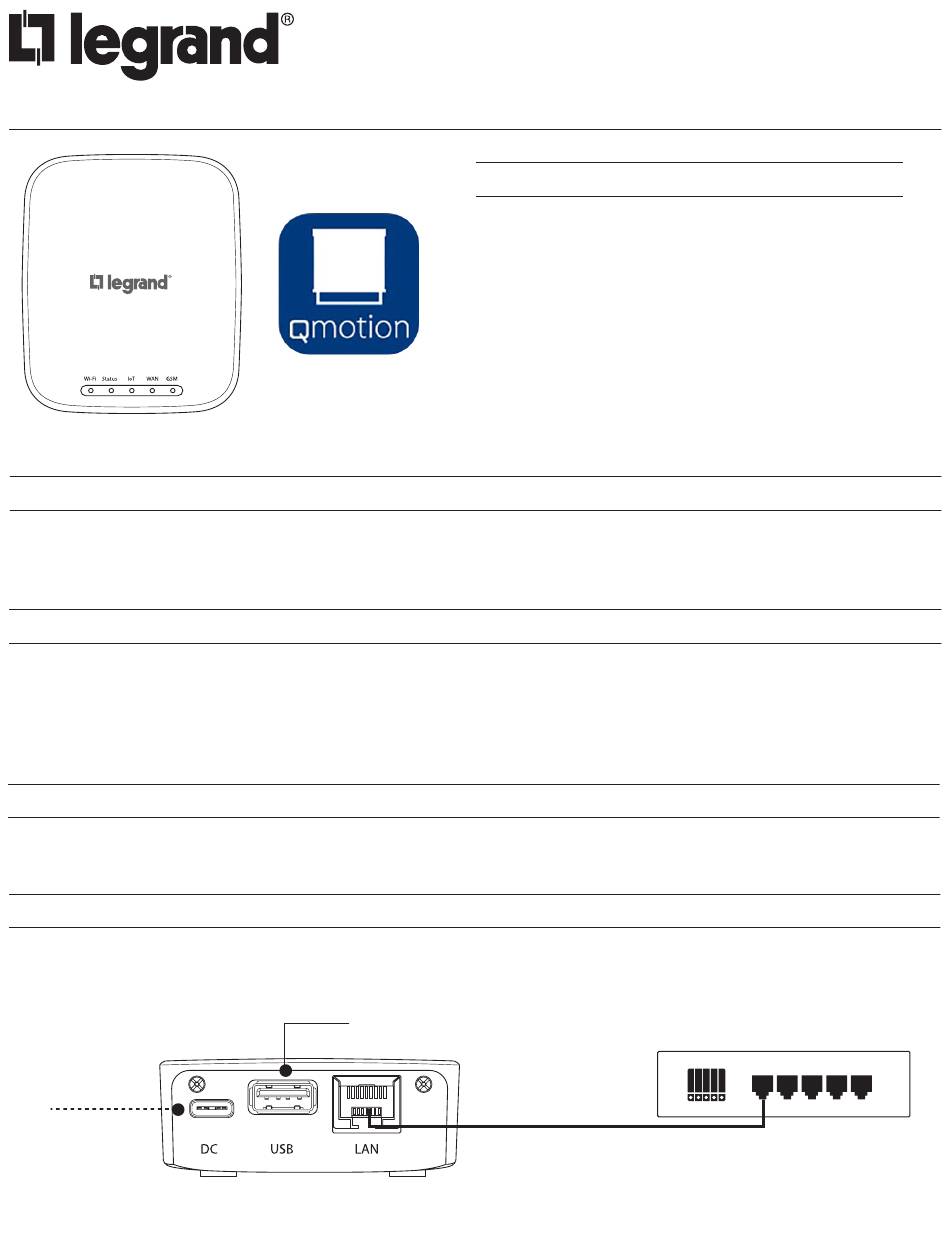

No: IS-0000 – rev. A

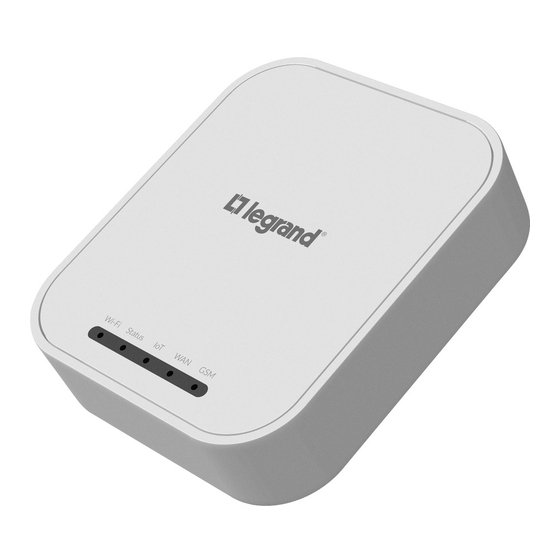

The QzHub3 hardware device allows you to easily control your QMotion Zigbee-enabled, motorized shades from your phone in
conjunction with the QzHub App. The QzHub App's intuitive interface and simple navigation allows you to easily edit, add, commission,
and control local shades.
The QzHub3 can handle up to 32 nodes (base) to 105 nodes (for full network size, if using Range Extenders). Nodes include
shades, remotes and extenders.
ZigBee 3.0 ready and scalable for future updates
USB expandability with an on-board USB expansion port
Download the QMotion QzHub App from either Google Play or the App Store.
Simply hook the power cord in and connect the QzHub3 to a router with an Ethernet cable.
POWER
OVERVIEW
FEATURES AND OPERATION OVERVIEW
SOFTWARE
CONNECTION DIAGRAM
USB PORT
QMotion
®
QzHub3 / QzHub App 2.0
User's Guide
SPECIFICATIONS
Dimensions, HWL
....................
LED Indicator
Power, WiFi, Zigbee/BLE, Ethernet
...............
Power
...........................................
Available Plug Type ............................................... Type A (Nema)
Ports .......................................................................Ethernet, USB
Operation ................................................................... WPS Button
Storing Temperature .................................................. -20° to 60°C
Operating Temperature ................................................ 0° to 50°C
Regulatory ................. Meets US and Europe standards CE, FCC
Compliance ....................... Meets RoHS and REACH regulations
ETHERNET
1
1"H x 2.8125" W x 3.3125"L
90-240V +/- 10%, 50/60Hz
ROUTER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QMotion QzHub3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for LEGRAND QMotion QzHub3

  • Page 1 QMotion ® QzHub3 / QzHub App 2.0 User’s Guide No: IS-0000 – rev. A SPECIFICATIONS Dimensions, HWL 1”H x 2.8125” W x 3.3125”L ....LED Indicator Power, WiFi, Zigbee/BLE, Ethernet ....Power 90-240V +/- 10%, 50/60Hz ........... Available Plug Type ..........Type A (Nema) Ports ...............Ethernet, USB Operation ..............
  • Page 2: Software Navigation

    ELIOT CLOUD Download the QMotion QzHub App from either Google Play or the App Store. To start using your app you will You will need to create an Eliot need to agree to the new Terms cloud account to enable you and Conditions.
  • Page 3 USER INSTRUCTIONS GROUP CONTROL PAGE By default, the app launches to Group Control. This page contains a list of your device groups that can be raised and lowered using the arrow buttons. Tap a group to access individual group control. A list of various shade groups To access individual shade is displayed.
  • Page 4: Installer Instructions

    INSTALLER INSTRUCTIONS SELECTING THE HUB QZHUB HARDWARE QzHub3 Upon logging in you will not have a QzHub designated hub and the first screen will prompt you to select which hub will be used in set up. ACTIVATING A HUB - QZHUB3 To activate a QzHub3 you need Once activated, you will see the to give it a name and enter its...
  • Page 5 ACTIVATING A HUB - QZHUB To activate a QzHub ensure it is Once the hub is activated you will plugged into a router. Enter the see it listed on the devices page. Tap on it to begin joining shades. 6 digit code (located under the battery cover), press and hold the red button on the back to put the hub in join mode, about 5...
  • Page 6: Setting Limits

    ADDING SHADES Once a hub has been activated, you can start adding shades to the network. NOTE: You can only join one shade at a time. Go to the Add Devices page and One at a time, tug on the shades From here you should rename tap on your hub to begin pairing to cause them to search for an...
  • Page 7: Edit Devices

    EDIT DEVICES To configure your devices, open The details page displays device To delete from the list page, you the navigation menu and select information. The Information section can swipe or long press to delete. Edit Devices. This wil list your displays details about the device such as This will remove the device from available shades.
  • Page 8: Edit Groups

    EDIT GROUPS The Edit Groups page takes you to an overview of your device groups. These will typically be a room or location in your home. Tap on the Edit Group which To add a new group, tap the “+” Tap on a group to begin editing.
  • Page 9 SETTINGS - QZHUB3 Open the navigation menu, tap on Settings, and select the hub. In the Settings page you may rename the QzHub3. It also displays the activation key used to authorized additional/other devices. ACTIONS Firmware Update: Update QzHub3 firmware if available Local Only Mode: See QZHub Settings (below) Deactivate Gateway: Deactivate and delete your Gateway INFO...
  • Page 10 QZHUB3 - TRANSFERRING OWNERSHIP AND REVOKING ACCESS In the settings for QzHub3, tap The person who now only needs To revoke a user, simply tap on the Transfer Ownership to log in to their Eliot account on the revoke button and enter and enter the email that you are when they open the app and they the email address you need to...
  • Page 11: Technical Notes

    TECHNICAL NOTES On your Eliot account you are only allowed one QzHub and one QzHub3. QzHub3 Join Shade Blink Pattern: - IoT: Slow flash when in pairing mode; Rapid flash when device is joining QzHub3 only allows one admin user. If that user deletes the hub, all added users will be deleted. To transfer admin ownership, under hub settings you can tap on Transfer Ownership and follow the prompts to transfer.
  • Page 12 TUG COMMANDS Tug Command Mode will allow certain features to be performed manually without a learned remote. Read the following instructions completely before starting the procedure. Inputs from the user are time sensitive. If the shade times out before entering a tug command, reutrn the shade to the Upper Limit Position and begin the procedure over.
  • Page 13: Troubleshooting

    TROUBLESHOOTING • Make sure QzHub3 and app are on the same network. • If you need to clear a shade manually, or the shade is not discoverable and you need to reset it, follow the manual tug commands on previous page. •...
  • Page 14 No. IS-0000 Rev. A © Copyright 2019 Legrand All Rights Reserved. © Copyright 2019 Tous droits réservés Legrand. 800.877.849.6070 © Copyright 2019 Legrand Todos los derechos reservados. www.qmotionshades.com...
