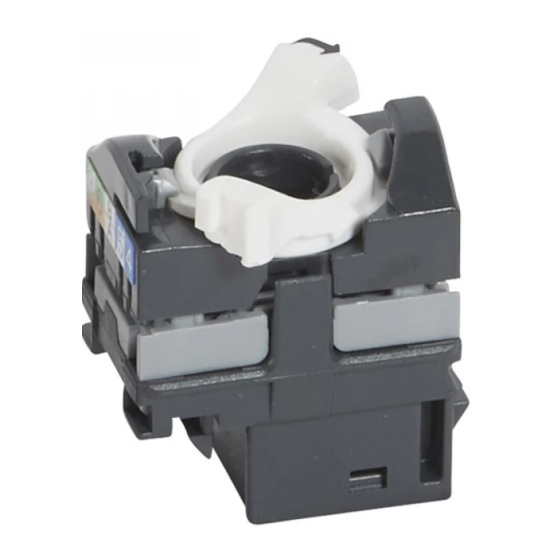

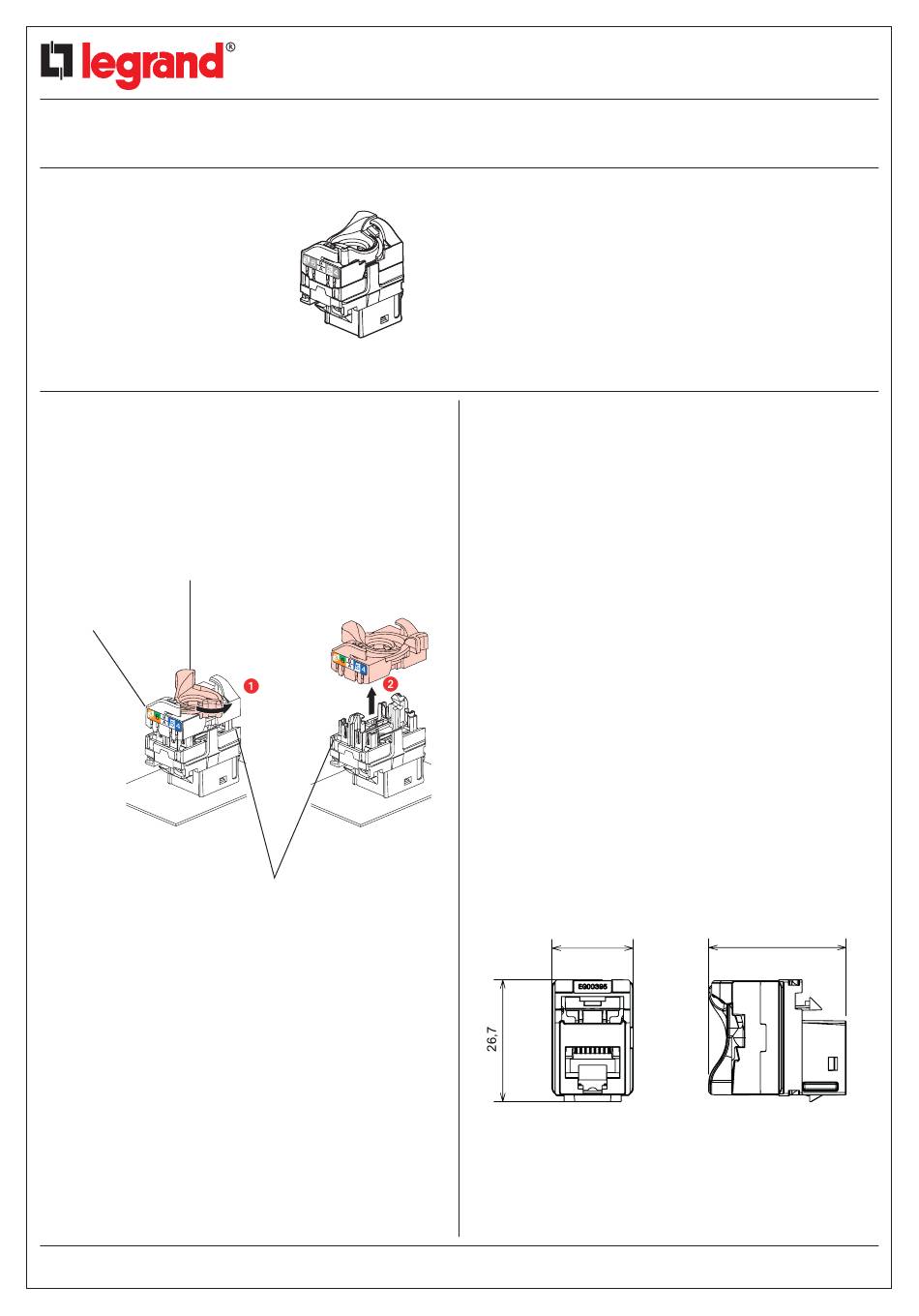

RJ45 socket cat.5e
Keystone
1. GENERAL CHARACTERISTICS
Category 5 RJ45 socket.
Enables high speed data transmission (Gigabit Ethernet).
2. PRESENTATION
Colour code and
Contact number
Identification
number
UTP : SK01
Category colour code: Cat. 5 grey
Technical data sheet: F01421EN/00
87045 LIMOGES Cedex
Telephone: (+33) 05 55 06 87 87 - Fax: (+33) 05 55 06 88 88
Cat. no(s).: 0 331 80
UTP
3. TECHNICAL CHARACTERISTICS
3.1 Material characteristics
Contacts: gold/nickel, thickness of gold > 0.8 µm min.
Metal parts: bronze, nickel, platinum, gold
PBT polycarbonate
3.2 Electrical characteristics
Breakdown voltage ≥ 1000 V.
Contact resistance ≤ 20 mΩ.
Insulation resistance ≥ 500 MΩ at 100 V DC.
Connector tested and guaranteed to support POE signals, standard IEEE
802.3af and POE+, draft standards 802.3at, up to 2500 connections and
disconnections with load.
Tests are carried out with 2 simultaneous POE+ circuits producing a
minimum total power of 50W.
3.3 Mechanical characteristics
Max. number of connections and disconnections: 5 without refreshing
the cable
Endurance: 2500 movements (plug insertion/withdrawal)
IK03
3.4 Climatic characteristics
Operating temperature: - 40°C to + 70°C
Humid heat cycle 21 days
4. OVERALL DIMENSIONS
Updated on :
CONTENTS
1. General characteristics. . . . . . . . . . . . . 1
2. Presentation . . . . . . . . . . . . . . . . . . . . . 1
3. Technical characteristics . . . . . . . . . . . 1
4. Overall dimensions. . . . . . . . . . . . . . . . 1
5. Usual connection of RJ45 sockets. . . . 2
6. Standards and approvals . . . . . . . . . . . 2
7. Performance. . . . . . . . . . . . . . . . . . . 3-4
17,8
Created on: 20/09/2011
Page
30,1
1/4
