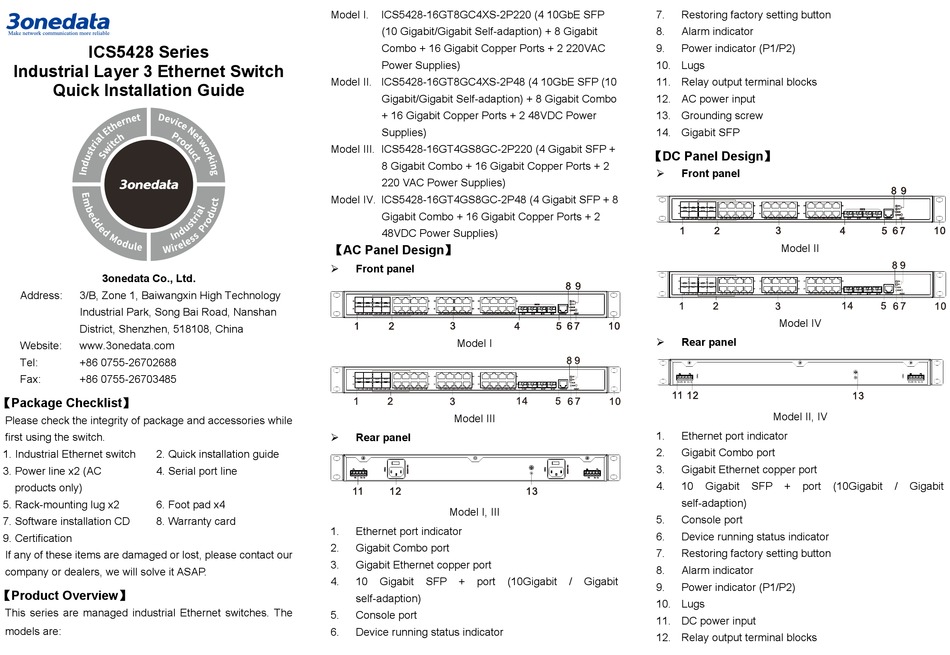

ICS5428 Series
Industrial Layer 3 Ethernet Switch
Quick Installation Guide
3onedata Co., Ltd.
Address:
3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Song Bai Road, Nanshan
District, Shenzhen, 518108, China
Website:
www.3onedata.com
Tel:
+86 0755-26702688
Fax:
+86 0755-26703485
【Package Checklist】
Please check the integrity of package and accessories while
first using the switch.
1. Industrial Ethernet switch
2. Quick installation guide
3. Power line x2 (AC
4. Serial port line
products only)
5. Rack-mounting lug x2
6. Foot pad x4
7. Software installation CD
8. Warranty card
9. Certification
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】
This series are managed industrial Ethernet switches. The
models are:
Model I.
ICS5428-16GT8GC4XS-2P220 (4 10GbE SFP
(10 Gigabit/Gigabit Self-adaption) + 8 Gigabit
Combo + 16 Gigabit Copper Ports + 2 220VAC
Power Supplies)
Model II. ICS5428-16GT8GC4XS-2P48 (4 10GbE SFP (10
Gigabit/Gigabit Self-adaption) + 8 Gigabit Combo
+ 16 Gigabit Copper Ports + 2 48VDC Power
Supplies)
Model III. ICS5428-16GT4GS8GC-2P220 (4 Gigabit SFP +
8 Gigabit Combo + 16 Gigabit Copper Ports + 2
220 VAC Power Supplies)
Model IV. ICS5428-16GT4GS8GC-2P48 (4 Gigabit SFP + 8
Gigabit Combo + 16 Gigabit Copper Ports + 2
48VDC Power Supplies)
【AC Panel Design】
Front panel
Model I
Model III
Rear panel
Model I, III
1.
Ethernet port indicator
2.
Gigabit Combo port
3.
Gigabit Ethernet copper port
4.
10
Gigabit
SFP
+
port
(10Gigabit
self-adaption)
5.
Console port
6.
Device running status indicator
7.
Restoring factory setting button
8.
Alarm indicator
9.
Power indicator (P1/P2)
10. Lugs
11. Relay output terminal blocks
12. AC power input
13. Grounding screw
14. Gigabit SFP
【DC Panel Design】
Front panel
Rear panel
1.
Ethernet port indicator
2.
Gigabit Combo port
3.
Gigabit Ethernet copper port
4.
10
Gigabit
self-adaption)
5.
Console port
6.
Device running status indicator
7.
Restoring factory setting button
8.
Alarm indicator
/
Gigabit
9.
Power indicator (P1/P2)
10. Lugs
11. DC power input
12. Relay output terminal blocks
Model II
Model IV
Model II, IV
SFP
+
port
(10Gigabit
/
Gigabit
