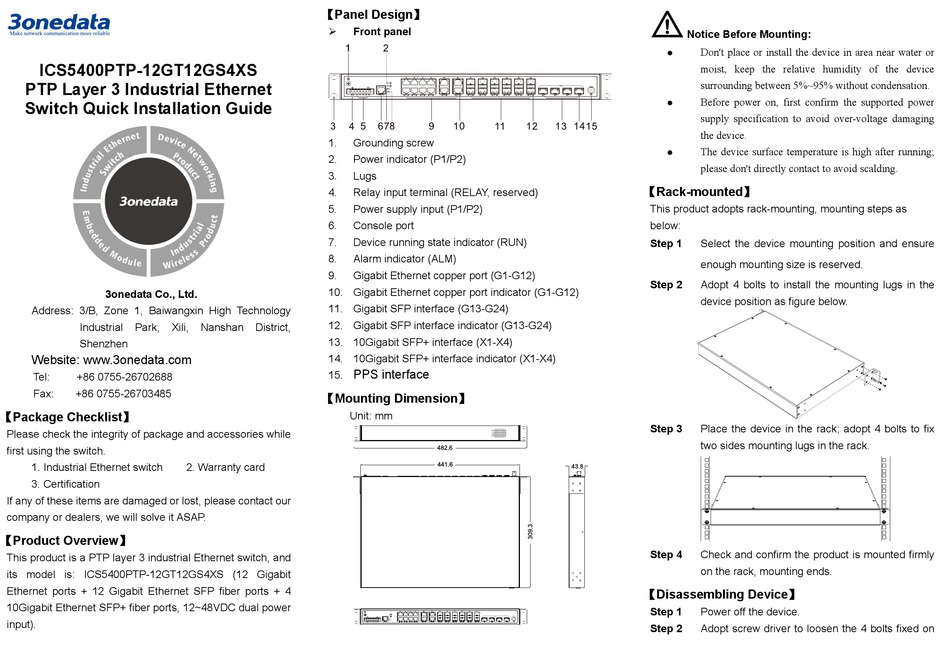

3onedata ICS5400PTP-12GT12GS4XS Installation

ICS5400PTP-12GT12GS4XS
PTP Layer 3 Industrial Ethernet
Switch Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili,
Shenzhen
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485
【Package Checklist】
Please check the integrity of package and accessories while
first using the switch.
1. Industrial Ethernet switch
3. Certification
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】

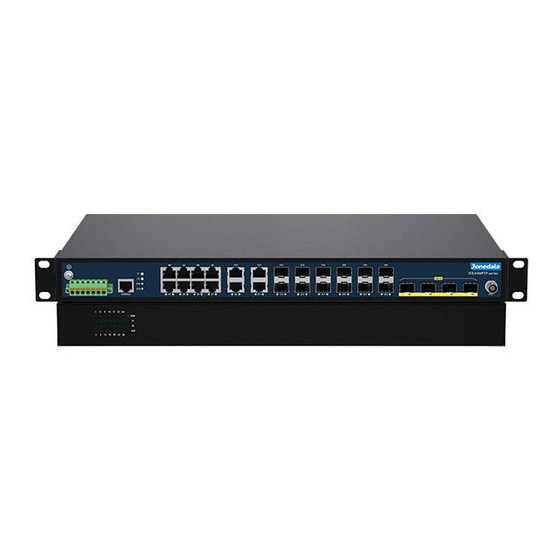

This product is a PTP layer 3 industrial Ethernet switch, and
its model is: ICS5400PTP-12GT12GS4XS (12 Gigabit
Ethernet ports + 12 Gigabit Ethernet SFP fiber ports + 4
10Gigabit Ethernet SFP+ fiber ports, 12~48VDC dual power
input).
【Panel Design】
Front panel

1. Grounding screw
2. Power indicator (P1/P2)
3. Lugs
4. Relay input terminal (RELAY, reserved)
5. Power supply input (P1/P2)
6. Console port
7. Device running state indicator (RUN)
8. Alarm indicator (ALM)
9. Gigabit Ethernet copper port (G1-G12)
10. Gigabit Ethernet copper port indicator (G1-G12)
11. Gigabit SFP interface (G13-G24)
12. Gigabit SFP interface indicator (G13-G24)
Nanshan District,
13. 10Gigabit SFP+ interface (X1-X4)
14. 10Gigabit SFP+ interface indicator (X1-X4)
PPS interface
15.
【Mounting Dimension】
Unit: mm
2. Warranty card
Notice Before Mounting:
Don't place or install the device in area near water or

moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before power on, first confirm the supported power

supply specification to avoid over-voltage damaging
the device.
The device surface temperature is high after running;

please don't directly contact to avoid scalding.
【Rack-mounted】
This product adopts rack-mounting, mounting steps as
below:
Step 1 Select the device mounting position and ensure
enough mounting size is reserved.
Step 2
Adopt 4 bolts to install the mounting lugs in the
device position as figure below.
Step 3
Place the device in the rack; adopt 4 bolts to fix
two sides mounting lugs in the rack.
Step 4 Check and confirm the product is mounted firmly
on the rack, mounting ends.
【Disassembling Device】
Step 1
Power off the device.
Step 2
Adopt screw driver to loosen the 4 bolts fixed on
