- Page 1 OPERATING INSTRUCTIONS Translation of the Original TC 1200 PN Electronic drive unit...
-
Page 2: Telegram Example
Dear Customer, Thank you for choosing a Pfeiffer Vacuum product. Your new turbopump is designed to support you by its performance, its perfect operation and without interfering your individual application. The name Pfeiffer Vacuum stands for high-quality vacuum technology, a comprehensive and complete range of top-quality products and first-class service. -
Page 3: Table Of Contents
5.1.6 Acyclic data 5.1.7 Data types Interface RS-485 5.2.1 Connection options 5.2.2 Cross-linking via the RS-485 connection Pfeiffer Vacuum protocol for RS-485 interface 5.3.1 Telegram frame 5.3.2 Telegram description 5.3.3 Telegram example 1 5.3.4 Telegram example 2 5.3.5 Data types... - Page 4 Table of contents Operation Configuring the connections with the Pfeiffer Vacuum parameter set 7.1.1 Configuring the accessory connections 7.1.2 Select interfaces Operating modes 7.2.1 Gas type-dependent operation 7.2.2 Set value power consumption 7.2.3 Run-up time 7.2.4 Rotation speed switch points 7.2.5 Rotation speed setting mode...
- Page 5 List of tables List of tables Tbl. 1: Stickers on the product Tbl. 2: Abbreviations used in this document Tbl. 3: Permissible ambient conditions Tbl. 4: Features of the device variant Tbl. 5: Delivered drive power depending on the supplied mains voltage Tbl.

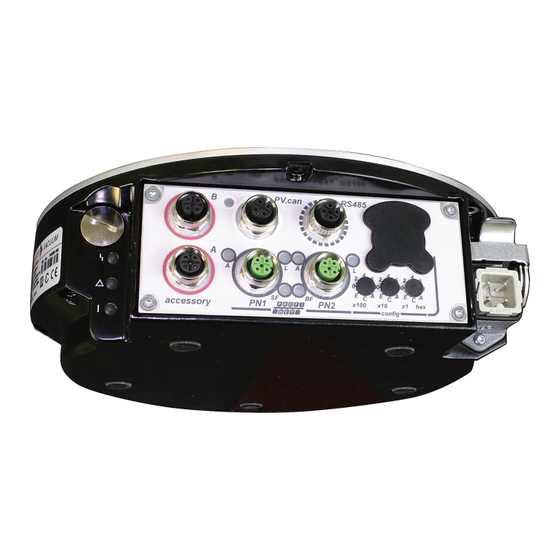

- Page 6 List of figures List of figures Fig. 1: Connection panel TC 1200 PN Fig. 2: Diagram and assignments of the connection panel Fig. 3: Connection options via interface RS-485 Fig. 4: Cross-linking of turbopumps with integrated electronic drive unit via interface RS-485 Fig.
-
Page 7: About This Manual
Keep the manual for future consultation. 1.1 Validity This operating instructions is a customer document of Pfeiffer Vacuum. The operating instructions de- scribe the functions of the named product and provide the most important information for the safe use of the device. The description is written in accordance with the valid directives. The information in this op- erating instructions refers to the product's current development status. -
Page 8: Stickers On The Product
Ampere Interrupting Capacity Profinet status LED (Bus Fault) Direct current Discovery and basic Configuration Protocol (Profinet protocol) Display Control Unit from Pfeiffer Vacuum DI/DO Digital input/digital output Rotation speed value of a vacuum pump (frequency, in rpm or Hz) XML-based Profinet file with description of a device provided by the device manufac-... -
Page 9: Trademark Proof
About this manual Abbreviation Meaning in this document Turbomolecular pump Temperature management system Electric voltage Extensible Markup Language Tbl. 2: Abbreviations used in this document 1.5 Trademark proof ● Profibus ® is a registered trading name of Profibus Nutzerorganisation e.V. (Profibus user organi- zation). -
Page 10: Safety
Safety 2 Safety 2.1 General safety information The following 4 risk levels and 1 information level are taken into account in this document. DANGER Immediately pending danger Indicates an immediately pending danger that will result in death or serious injury if not observed. ►... -
Page 11: Safety Precautions
Safety DANGER Danger to life from electric shock Power supply packs that are not specified or are not approved will lead to severe injury to death. ► Make sure that the power supply pack meets the requirements for double isolation between mains input voltage and output voltage, in accordance with IEC 61010-1 IEC 60950-1 and IEC 62368-1. -
Page 12: Limits Of Use Of The Product
Safety Infringement of conformity due to modifications to the product The Declaration of Conformity from the manufacturer is no longer valid if the operator changes the original product or installs additional equipment. ● Following the installation into a system, the operator is required to check and re-evalu- ate the conformity of the overall system in the context of the relevant European Direc- tives, before commissioning that system. -
Page 13: Proper Use
Safety 2.5 Proper use ● The electronic drive unit is used exclusively for the operation of Pfeiffer Vacuum turbopumps and their accessories in a Process Field Network (Profinet). 2.6 Foreseeable misuse Improper use of the product invalidates all warranty and liability claims. Any use that is counter to the purpose of the product, whether intentional or unintentional, is regarded as misuse, in particular: ●... -
Page 14: Product Description
ID no. 000021320. 3.2 Product features The type TC 1200 PN electronic drive unit is a fixed component of the turbopump. The purpose of the electronic drive unit is to drive, monitor and control the entire turbopump. The electronic drive unit is equipped with an integrated extended voltage supply. -
Page 15: Scope Of Delivery
AC in Housing plug HAN 3A for the voltage supply accessory 2 × M12 bushings with threaded coupling for the connection of Pfeiffer Vacuum ac- cessories. The use of a Y-distributor permits the double allocation of a connection. PV.can M12 bushing with threaded coupling and LED for Pfeiffer Vacuum service purpos-... -
Page 16: Installation
Installation 4 Installation 4.1 Connection diagram DANGER Danger to life from electric shock Power supply packs that are not specified or are not approved will lead to severe injury to death. ► Make sure that the power supply pack meets the requirements for double isolation between mains input voltage and output voltage, in accordance with IEC 61010-1 IEC 60950-1 and IEC 62368-1. -
Page 17: Profinet" Connection
Installation n.c. n.c. Zubehör A2 Zubehör B2 24 V DC** 24 V DC** Zubehör A1 Zubehör B1 CAN-H 24 V DC** GND*** CAN-L n.c. RS 485 D+ 24 V DC* out GND* RS 485 D- n.c. n.c. Fig. 2: Diagram and assignments of the connection panel 4.2 "Profinet"... -
Page 18: Tbl. 8: Terminal Lay-Out Of The Power Supply Connector
Terminal lay-out of the power supply connector Establishing mains connection 1. Order a corresponding power supply cable from the Pfeiffer Vacuum accessories range. 2. Assemble your own power supply cable using the HAN 3A connecting socket from the shipment. 3. Plug mains cable into the mains connection "AC in". -
Page 19: Interfaces
Interfaces 5 Interfaces 5.1 Profinet interface 5.1.1 Making connections The turbopump can be integrated in a Profinet bus system using the connections designated "PN1" and "PN2" on the electronic drive unit. The interface is galvanically safe and is isolated from the maximum supply voltage for the electronic drive unit. 5.1.2 Defining device ID Assign device name and IP address ►... -
Page 20: Tbl. 10: Speed Controlled Tmp Assembly: Output Data (Plc To Tc)
Interfaces Byte Name Meaning purge_valve_req Sealing gas valve pre-selection (0: closed, 1: enabled) 2–3 speed_setpoint Set rotation speed in rotation speed setting mode (Hz, Un- signed16) Tbl. 10: Speed Controlled TMP assembly: Output data (PLC to TC) Byte Name Meaning at_standby_speed At standby speed (0: no, 1: yes) at_rated_speed... -
Page 21: Tbl. 16: Bearingtemp: Input Data (Tc To Plc)
Interfaces Byte Name Meaning 0–3 value Measured value (Float32) status Status of measured value (Unsigned8) 11h: ok, 21h: uncertain, 31h: poor Tbl. 16: BearingTemp: Input data (TC to PLC) Byte Name Meaning 0–3 value Measured value (Float32) status Status of measured value (Unsigned8) 11h: ok, 21h: uncertain, 31h: poor Tbl. -
Page 22: Parameterization
Interfaces Byte Field Request Parameter number Parameter value 3: Write Parameter number (Unsigned32) value 10: Write Parameter number (Float32) value Tbl. 22: PrmChannel: Output data (PLC to TC) Byte Field Response Parameter number Parameter value 0: none 2: ok Parameter number (Unsigned32) value 7: Error Parameter number... -
Page 23: Acyclic Data
5.1.6 Acyclic data Writing parameters acyclically ► Use the “write record” service to write individual Pfeiffer Vacuum parameters acyclically. – The index in this regard is the Pfeiffer Vacuum parameter number. ► Enter a value in the "Unsigned32" or "Float32" format in the corresponding field. -
Page 24: Interface Rs-485
Interfaces 5.2 Interface RS-485 The interface designated “RS-485” is intended for connecting a Pfeiffer Vacuum control unit or an exter- nal PC. The connections are galvanically safe and are isolated from the maximum supply voltage for the electronic drive unit. The electrical connections are optically decoupled internally. -
Page 25: Cross-Linking Via The Rs-485 Connection
3. Connect all devices to the bus with RS-485 D+ and RS-485 D-. 5.3 Pfeiffer Vacuum protocol for RS-485 interface 5.3.1 Telegram frame The telegram frame of the Pfeiffer Vacuum protocol contains only ASCII code characters [32; 127], the exception being the end character of the telegram C . Basically, a host (e.g. -
Page 26: Telegram Description
● Group address "9xx" for all identical units (no response) ● Global address "000" for all units on the bus (no response) Action according to telegram description n2 – n0 Pfeiffer Vacuum parameter numbers I1 – I0 Data length dn to d0 dn – d0 Data in the respective data type (see chapter “Data types”, page... -
Page 27: Data Types
Interfaces --> ASCII 5.3.5 Data types Data type Description Length Example l1 – l0 boolean_old Logical value (false/true) 000000 is equivalent to false 111111 is equivalent to true u_integer Positive whole number 000000 to 999999 u_real Positive fixed point number 001571 corresponds with 15.71 string Any character string with 6 charac-... -
Page 28: Parameter Set
Each parameter has a three-digit number and a description. The parameter can be accessed via Pfeiffer Vacuum control units or externally via RS-485 using Pfeiffer Vacuum protocol. The vacuum pump starts in standard mode with factory default pre-set parameters. - Page 29 Parameter set Display Description Functions Data Unit min. max. type cess fault type Cfg DO2 Output DO2 0 = Rotation speed switch configuration point reached 1 = No error 2 = Error 3 = Warning 4 = Error and/or warning 5 = Set rotation speed reached 6 = Pump on 7 = Pump accelerating...
- Page 30 Parameter set Display Description Functions Data Unit min. max. type cess fault type Cfg Acc A1 Configuration 0 = fan accessory 1 = Venting valve, closed with- connection out current 2 = Heating 3 = Backing pump 4 = Fan (temperature control- led) 5 = Sealing gas 6 = Always "0"...
-
Page 31: Status Requests
Parameter set Display Description Functions Data Unit min. max. type cess fault type CtrlViaInt Control via 1 = remote interface 2 = RS-485 4 = PV.can 8 = Fieldbus 16 = E74 255 = Unlock interface selec- tion IntSelLckd Interface se- 0 = off lection locked 1 = on... -
Page 32: Set Value Settings
Parameter set Display Description Func- Data Access Unit min. max. tions type type fault Nominal Spd Nominal rotational speed 999999 (Hz) DrvPower Drive power 999999 PumpCycles Pump cycles 65535 TempElec Temperature electronics °C 999999 TempPmpBot Temperature pump bottom °C 999999 part AccelDecel Acceleration/deceleration... -
Page 33: Additional Parameters For The Control Unit
The basic parameter set is set in the electronic drive unit ex-factory. For controlling con- nected external components (e.g. vacuum measuring equipment), additional parameters (extended parameter set) are available in the corresponding Pfeiffer Vacuum control units. ● Refer to the corresponding operating instructions of the respective components. -
Page 34: Operation
Operation 7 Operation 7.1 Configuring the connections with the Pfeiffer Vacuum parameter set The electronic drive unit is pre-configured with the factory default basic functions and is ready for opera- tion. For individual requirements, you can configure most connections for the electronic drive unit with the parameter set. -
Page 35: Operating Modes
► Make sure that the gas mode is set correctly by [P:027] in the electronic drive unit. ► Consult Pfeiffer Vacuum before you use gases with higher molecular masses (> 80). High gas throughput and high rotation speed lead to strong friction heating of the rotor. To avoid over- heating, power to rotation speed characteristics are implemented in the electronic drive unit. -
Page 36: Set Value Power Consumption
Operation 7.2.2 Set value power consumption Set parameter [P:708] When setting the specified power consumption below 100%, the run-up time is extended. 1. Set the parameter [P:708] to the required value in %. 2. Where necessary, adjust the parameter [P:700] RUTimeSVal to avoid error messages when starting up. -
Page 37: Rotation Speed Setting Mode
Operation Rotation speed switch points 1 & 2 [P:017] = 1 f (%) [P:701] [P:719] [P:010] [P:302] Process Fig. 7: Rotation speed switch points 1 & 2 active, [P:701] > [P:719] [P:017] = 1 f (%) [P:719] [P:701] [P:010] [P:302] Process Fig. -
Page 38: Standby
3. Check the set rotation speed (parameter [P:308] or [P:397]). 7.2.6 Standby Pfeiffer Vacuum recommends standby mode for the turbopump during process and production stops. When standby mode is active, the electronic drive unit reduces the rotation speed of the turbo pump. -
Page 39: Tbl. 40: Backing Pump Operating Modes
Fluctuations in the power consumption of idling turbopumps and varying fore-vac- uum pressures of the backing pumps require individual settings of the interval operation. Pfeiffer Vacuum recommends interval operation between 5 and 10 hPa. A pressure gauge and a dosing valve are required to set the switching thresholds. -
Page 40: Backing Pump Standby Mode
Operation 7.2.9 Backing pump standby mode In case you are using a Pfeiffer Vacuum backing pump with rotation speed control, this can be used in standby mode by configuring the digital output [P:019] or [P:024]. The power consumption of the turbo- pump has a direct influence on the rotation speed of the backing pump. -
Page 41: Switching On The Turbopump
7.5.1 Operating mode display via LED LEDs on the electronic drive unit show the basic operating states of the vacuum pump. A differentiated error and warning display is only possible for operation with the Pfeiffer Vacuum display and control unit or a PC. -
Page 42: Operating Mode Display For Profinet Led
Operation 7.5.2 Operating mode display for Profinet LED LED status Display Meaning No errors On, flashing red, 1 DCP signal service is triggered via the bus. Hz, 3 s On, constant Watchdog time-out; channel, generic or extended diag- nostics available; system fault No errors On, flashing red, 2 No data exchange... -
Page 43: Recycling And Disposal
● Help to reduce the wastage of natural resources. ● Prevent contamination. 8.1 General disposal information Pfeiffer Vacuum products contain materials that you must recycle. ► Dispose of our products according to the following: – Iron – Aluminium –... -
Page 44: Malfunctions
Warnings (* Warning F –––– *) do not cause components to be switched off. Handling malfunction messages 1. Read out error codes via Pfeiffer Vacuum control units or a PC. 2. Remove the cause of the malfunction. 3. Reset the malfunction message with parameter [P:009]. - Page 45 Malfunctions Error Problem Possible causes Remedy code Err043 Internal configuration er- ● Device defective ● Contact Pfeiffer Vacuum Service Err044 Excess temperature, ● Insufficient cooling ● Improve the cooling electronics ● Check the operating conditions Err045 Excess temperature, ● Insufficient cooling ●...
- Page 46 Problem Possible causes Remedy code Err800 Magnetic bearing over- ● Impacts, vibrations ● Contact Pfeiffer Vacuum Service flow ● Device defective ● Check the operating conditions ● Only acknowledge for rotational speed f = 0 Err802 Magnetic bearing sen- ● Calibration values invalid ●...
-
Page 47: Warning And Malfunction Messages When Operating With Control Units
● Check the operating conditions ● Impermissible thermal radiation ● Impermissible magnetic field Wrn113 Inaccurate rotor tem- ● Internal communication error ● Contact Pfeiffer Vacuum Service perature Wrn115 Pump lower part tem- ● Device defective ● Contact Pfeiffer Vacuum Service... -
Page 48: Service Solutions By Pfeiffer Vacuum
We are always focused on perfecting our core competence – servicing of vacuum components. Once you have purchased a product from Pfeiffer Vacuum, our service is far from over. This is often exactly where service begins. Obviously, in proven Pfeiffer Vacuum quality. - Page 49 Service solutions by Pfeiffer Vacuum 5. Prepare the product for transport in accordance with the provisions in the contamination declaration. a) Neutralize the product with nitrogen or dry air. b) Seal all openings with blind flanges, so that they are airtight.
-
Page 50: Ec Declaration Of Conformity
This declaration of conformity has been issued under the sole responsibility of the manufac- turer. Declaration for product(s) of the type: Electronic drive unit TC 1200 PN We hereby declare that the listed product satisfies all relevant provisions of the following European Directives. Low voltage 2014/35/EC... -
Page 51: Declaration Of Conformity
Semi F47-0200 EN IEC 61326-1:2021 Semi S2-0706 The manufacturer's authorized representative in the United Kingdom and the authorized agent for compiling the technical documentation is Pfeiffer Vacuum Ltd, 16 Plover Close, In- terchange Park, MK169PS Newport Pagnell. Signature: Pfeiffer Vacuum GmbH Berliner Straße 43...
