Chapter 4. PCB Layout Design

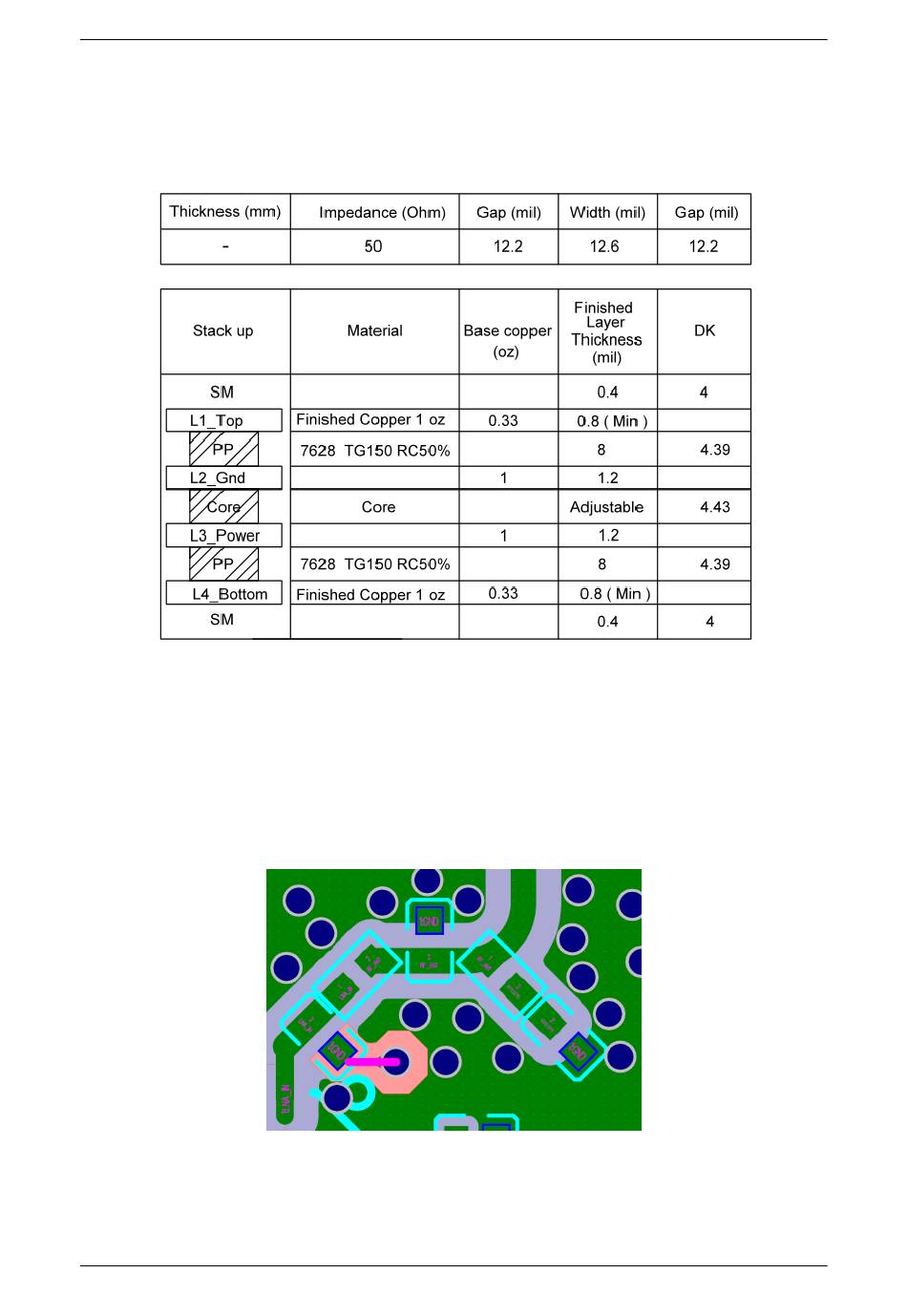

Fig. 8: ESP32 PCB Stack-up Design
Fig. 9: ESP32 Stub in a Four-layer PCB Design
