Espressif Systems ESP32 Hardware Design Manuallines page 28

Chapter 4. PCB Layout Design

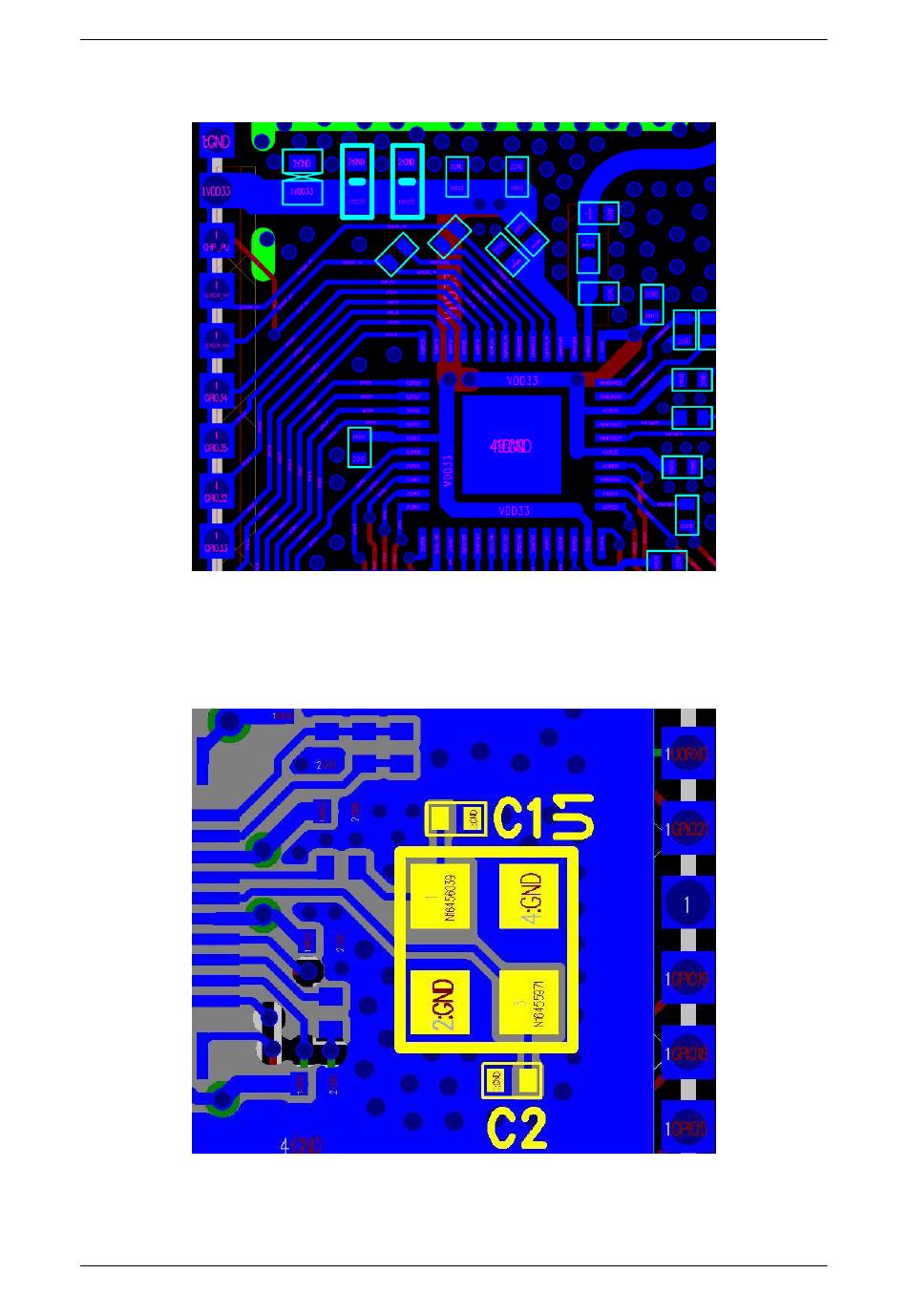

Fig. 5: ESP32 Power Traces in a Two-layer PCB Design
Fig. 6: ESP32 Crystal Layout (with Keep-out Area on Top Layer)
