Endless Pools Hydrostride
®
Both the Hydrostride and grab bar mounting brackets will be tied to the rebar grid of the pool prior to the gunite applica-
tion. Additionally, the threaded rods of the brackets will be tied to the bonding grid of the pool using the provided bonding
clamps and a # 8 solid copper wire (not provided by Endless Pools). Flexible PVC pipe is to be glued into the bushing
reducers on the backside of the Hydrostride bracket which will serve as conduits for the hydraulic lines.
After the gunite and finish coat application, the mounting brackets should end up in the middle of the finished pool wall
as shown in Figure 4A.2. The PVC couplings of the Hydrostride mounting bracket should extend no more than 1/2"
(12,7mm) into the finished pool. The coupling nuts of the grab bar mounting bracket MUST be flush with the finished
pool wall. The sacrificial bolts will then be removed to mount the grab bar. The pool wall MUST be sharp with a max
radius of 4" (10,16cm). Any radius in the pool wall will require a modification to the end covers of the Hydrostride
to accommodate the radius.

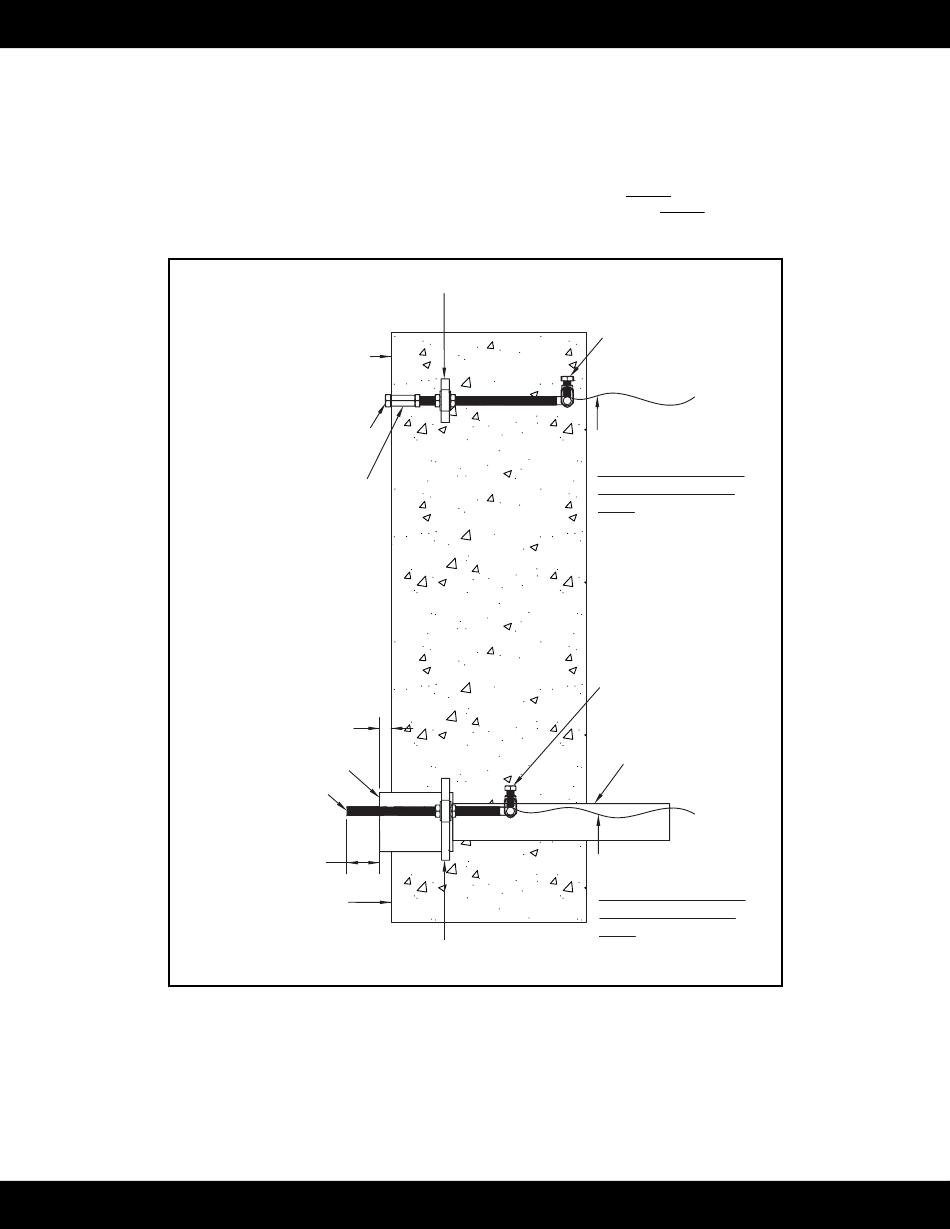

Finished Inside Pool Wall
(Gunite & Finish Coat)
Fig. 4A.2
:
9
Installation
™
Sacrificial Hex
Bolt
Coupling Nut
to be flush with
finished pool
wall (gunite &
finish coat)
1/2" (12,7mm)
MAX
PVC Coupling
Threaded
Rod
1-1/2" (38mm)
Pool wall MUST be
sharp with max radius
of 4" (10,16cm)
Grab Bar Mounting
Bracket Assembly
Bonding
Clamp
#8 Solid Copper Wire
MUST BE ATTACHED
TO POOL BONDING
GRID
Bonding
Clamp
PVC Flex Pipe
#8 Solid Copper Wire
MUST BE ATTACHED
TO POOL BONDING
GRID
Hydrostride Mounting
Bracket Assembly
