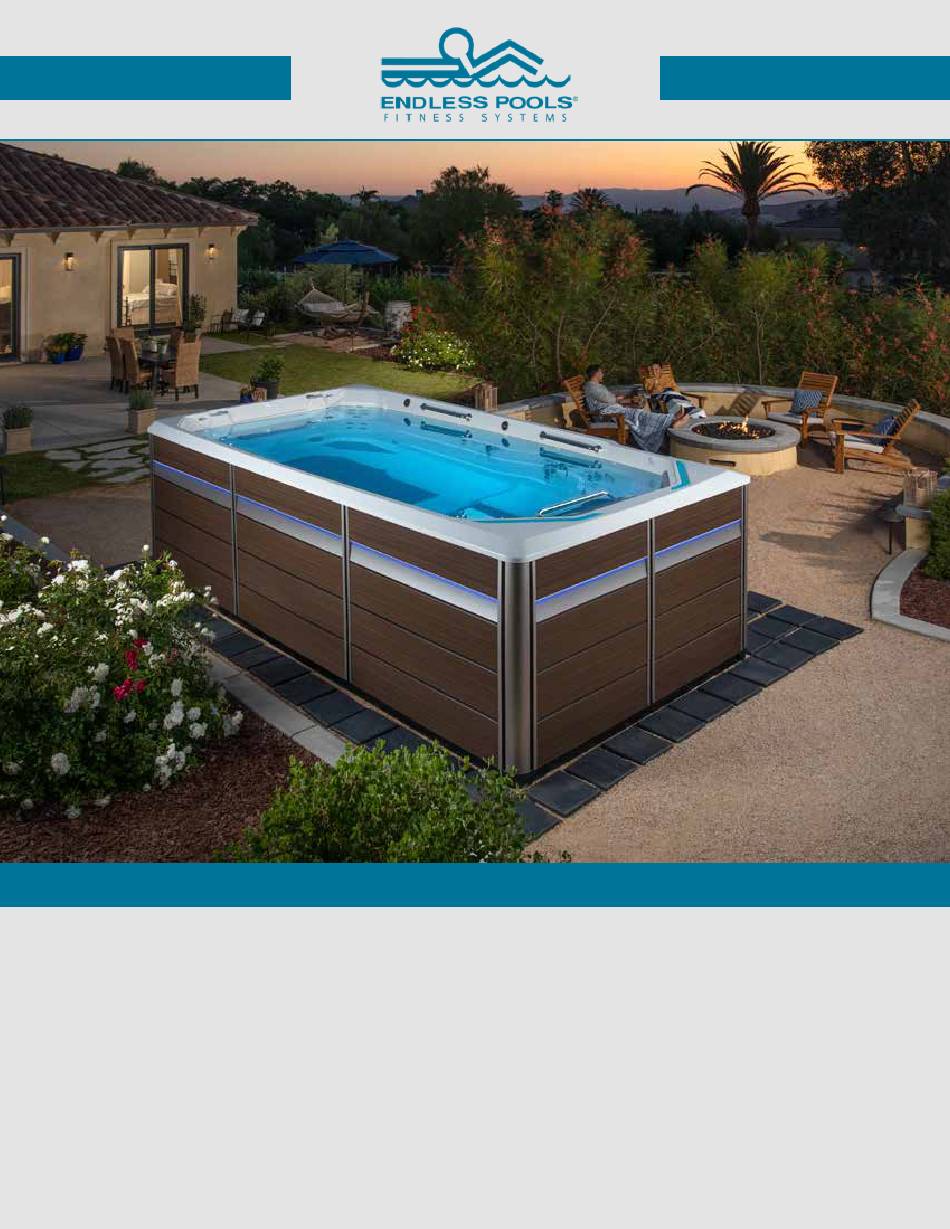

  • Page 1 Fitness Systems by Endless Pools ® O W N E R ' S M A N U A L 5 0 H Z...
  • Page 2 As a general practice, your local Building Department will inform you of any applicable barrier requirements at the time a permit is obtained for the installation of an electrical circuit. Your ENDLESS POOLS dealer can provide...

  • Page 3: Table Of Contents

    DECK INSTALLATION ............5 HOW TO ADD CHEMICALS TO THE WATER ....19 DELIVERY ACCESS ............5 FUNDAMENTALS OF WATER MAINTENANCE ...19 E500 MODELS ............... 6 THE ENDLESS POOLS WATER MAINTENANCE E700 MODELS ............... 7 PROGRAM ................20 ELECTRICAL REQUIREMENTS VACATION WATER CARE INSTRUCTIONS ....21 SINGLE PHASE (MODEL) WIRING ........

  • Page 4: Safety Information

    NO DIVING Safety Information IMPORTANT SAFETY Danger: Diving may result INSTRUCTIONS in serious injury or death. (READ AND FOLLOW ALL or conduit within 1.5 m (5 feet) of the unit as needed to comply with local requirements. INSTRUCTIONS) • Do not connect any auxiliary components (for example, cable, additional speakers, headphones, additional audio components) to the audio system unless approved by Watkins Wellness.
  • Page 5 DON'T: • Keep the water clean and sanitized with correct chemical care. The recommended levels for your ENDLESS POOLS fitness system are: • Use the fitness system with the equipment compartment door removed.

  • Page 6: Important Fitness System Instructions

    To obtain additional SAFETY SIGNS, • Leave the fitness system exposed to the sun without water or a cover contact your ENDLESS POOLS dealer. Safety labels that are affixed to in place. Exposure to direct sunlight can cause solar distress of the the shell are intended to be permanent and should not be removed.

  • Page 7: Site Requirements

    Should there a be a gap or should the water puddle inside the footprint, positive support is adequate. Call your builder and a structural call your ENDLESS POOLS dealer prior to continuing to discuss the engineer. best way to resolve this situation.

  • Page 8: Deck Installation

    When access to your site is limited a crane may be used to lift your system over obstructions for precise placement. The ENDLESS POOLS Exercise System delivery personnel will supervise the crane delivery and complete the system installation.

  • Page 9: E500 Models

    DOOR SIDE NOTE: ENDLESS POOLS requires that the E500 Models be installed on a minimum 15 cm (6") thick reinforced concrete pad or structurally sound deck able to support the “dead weight” found in the specification chart on the back page.
  • Page 10 41 cm NOTE: ENDLESS POOLS requires that the E550 Models be installed on a minimum 15 cm (6") thick reinforced concrete pad or structurally sound deck able to support the “dead weight” found in the specification chart on the back page.

  • Page 11: E700 Models

    DOOR SIDE NOTE: ENDLESS POOLS requires that the E700 Models be installed on a minimum 15 cm (6") thick reinforced concrete pad or structurally sound deck able to support the “dead weight” found in the specification chart on the back page.

  • Page 12: Electrical Requirements

    30 mA in an electrical subpanel. IMPORTANT: If you ever need to move or relocate your ENDLESS POOLS fitness system, it is essential that you understand and apply these installation requirements. Your ENDLESS POOLS fitness system has been carefully engineered to provide maximum safety against electric shock.

  • Page 13: Phase (Model) Wiring

    (back side of fitness system). Slide panel towards center, raise IMPORTANT: If you ever need to move or relocate your ENDLESS POOLS fitness system, it is essential that you understand and apply these installation requirements. Your ENDLESS POOLS fitness system has been carefully engineered to provide maximum safety against electric shock.

  • Page 14: Equipment Compartment

    The illustrations below are to be used as a reference only (your fitness system may look different). The equipment compartment is located behind the hydromassage seats (back of the fitness system) for the E500 & E700 and below the Control Panel on the front left side for the E550.

  • Page 15: Getting Started

    Getting Started E500 & E700 FITNESS SYSTEM FEATURES Your fitness system may look different than the illustration 1 ) The control panel provides a quick visual check of the fitness system ’s status and allows the user to set different functions of the fitness system.
  • Page 16 E550 FITNESS SYSTEM FEATURES 1 ) The control panel provides a quick visual check of the fitness system’s status and allows the user to set different functions of the fitness system. 2) The Air Valve allows you to add air to your hydromassage jets.

  • Page 17: Hydromassage Jets

    HYDROMASSAGE JETS SWIM MACHINE-HYDRAULIC SWIM MACHINE OPERATION - Two teal remote controls have been LARGE HYDROMASSAGE Jets - This jet provides a unique, pulsating provided with your system and have massage. The water flow is adjustable in that it can be turned from low been packaged in the owner's packet to high (by rotating the jet faceplate ¼...

  • Page 18: Quick Start-Up Instructions

    PACE DISPLAY (OPTIONAL) the fitness system, wipe the fitness system shell clean with a soft rag. SWIM PACE DISPLAY - For any ENDLESS POOLS’ product that The following instructions must be read and followed exactly to ensure generates a swim current the default setting a successful start-up or refill.
  • Page 19 3. TO CHECK THE OPERATION OF THE HYDROMASSAGE JET 6. SUPERCHLORINATE THE FITNESS SYSTEM WATER by adding SYSTEM and to purge any remaining air from the system complete 1½ teaspoons of chlorine (sodium dichlor) per 950 liters the following steps: (250 gallons) of water while running the swim machine above 50% for 10 minutes.

  • Page 20: Operating Instructions

    Operating Instructions WATER CARE / HEATER SETTINGS The Water Care section will help you set up your ideal heater settings. Choose from Away from Home, Standard, MAIN CONTROL PANEL Energy Savings, Super Energy Savings, and Weekender, depending on your needs. The main control panel provides a bright, full color display, and intuitive user experience, while its screen’s high resolution brings fitness system (middle left) button to choose...
  • Page 21 KEYPAD SETTINGS To delete a highlighted schedule, press (top right) lit button. In this section, you can change the You can modify the schedules by selecting (middle left) lit button and temperature unit, language, display adjusting the schedule using the buttons.

  • Page 22: Audio In.stream 2 (Optional)

    WI-FI IN.STREAM 2 FUNCTIONS (OPTIONAL) This menu allows you to connect Press the button in the home screen to access your audio system. your in.touch 2 module to a Wi-Fi If you are using a device with Bluetooth technology, it must be connected network or to change its network.

  • Page 23: Jets Control

    / memory on functions (not The sequence is as follows: White, Aqua, Magenta, Azure, Amber, available on the E550 model). Emerald, Ruby, color wheel with abrupt color changes, slow full color • Press jet button to activate the hydromassage jets. Press wheel and fast full color wheel.

  • Page 24: Water Quality And Maintenance

    Turn swim machine ON, run for 10 minutes and turn OFF. water every year; however, it is dependent on the amount of usage. Check with your ENDLESS POOLS dealer to determine if water in your Carefully measure the recommended amount of chemical and disperse into swim area while swim machine is on.

  • Page 25: The Endless Pools Water Maintenance Program

    Wellness. month. Raising/lowering the TA may cause the pH readings to fluctuate widely. Ignore the pH readings on the test strip while you THE ENDLESS POOLS WATER are balancing the TA. MAINTENANCE PROGRAM 3. pH - The pH is the measure of the acidity and alkalinity.

  • Page 26: Vacation Water Care Instructions

    PERFORMING SUPER CHLORINATION/ liquid or compressed bromine/chlorine or unapproved sanitizer WILL damage your fitness system and is specifically not covered under the NON-CHLORINE SHOCK TREATMENT terms of the limited warranty. A weekly or monthly super chlorination (1.5 tsp dichlor/950 liters) or OZONE PLUS UV-C MAINTENANCE shock (4tbs mps/950 liters) may be required of your chosen sanitation program.

  • Page 27: Glossary

    The measure of the fitness system water’s acidity and alkalinity. of the larger particles during the filling of the fitness system. In-line pre- filters can be purchased at your local ENDLESS POOLS dealer. ppm: The abbreviation of “parts per million”, the standard measurement Foam Inhibitors of chemical concentration in water.

  • Page 28: Care And Maintenance

    Care and Maintenance Pull skimmer tray away from wall, remove and clean. Your ENDLESS POOLS fitness system is manufactured from the highest quality, most durable materials available. Even so, the fitness system care and maintenance program you develop will ultimately determine how long your fitness system, and its individual components, will last.

  • Page 29: Draining Your Fitness System

    SYSTEM Turn off all RCD breakers in sub-panel, or main electrical panel. An ENDLESS POOLS fitness system may be used year round, even Locate the drain valve (bottom, lower right of control panel) for the in colder climates. If you will not be using the fitness system during the fitness system.

  • Page 30: Care Of The Exterior

    FITNESS SYSTEM SHELL cleaning and conditioning are recommended to maintain its beauty. Your ENDLESS POOLS fitness system has an acrylic shell. Stains and To clean and condition the vinyl cover without a lifter: dirt generally will not adhere to your fitness system’s surface. A soft rag Remove the covers from the fitness system and gently lean against or a nylon scrubber should easily remove most dirt.

  • Page 31: Service Information

    ACTS INVALIDATING WARRANTY If upon checking the RCD you find that they have not tripped, check The limited warranty is void if the ENDLESS POOLS fitness system the house breaker panel and ensure the main breaker for the electrical has been improperly installed, subjected to alteration, misuse, or abuse, circuit supplying the fitness system has not tripped.

  • Page 32: Disclaimers

    Watkins Wellness shall not be liable for loss of use of the ENDLESS POOLS fitness system, or other incidental, consequential, special, If you have any questions about any aspect of your ENDLESS POOLS indirect, or punitive costs, expenses or damages, which may include...
  • Page 33 • Let cool for one hour. Motor overload will reset automatically. If problem persists, contact your ENDLESS POOLS dealer • Disconnect fitness system and contact your ENDLESS POOLS dealer • Control switch failure if jet symbol does not come on Noisy pump or motor •...
  • Page 36 FITNESS SYSTEM SPECIFICATIONS This manual contains installation, operating, maintenance, and service information for the following ENDLESS POOLS fitness systems: 6,705 1,320 8,800 220-240 volt, 50Hz, 457 cm x 226 cm 147 cm liters 7.7 m² 117 cm kg/m² E500-58 18 m²...
