CONNECTION AND MAINTENANCE

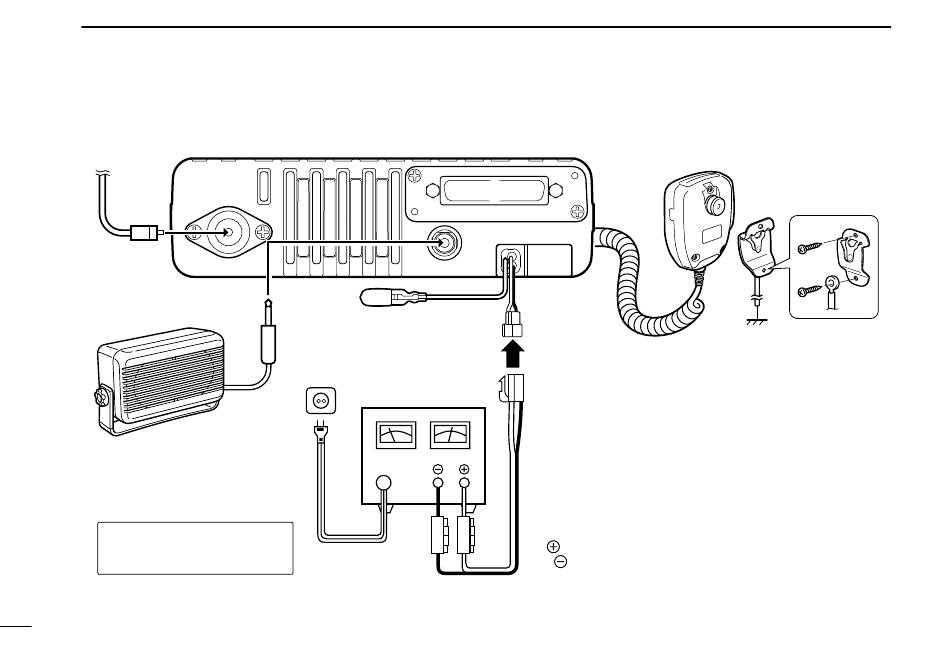

■ Rear panel connection (Continued)
D For base station operation
To antenna
q
Optional speaker
R CAUTION! NEVER remove
t h e f u s e - h o l d e r f r o m t h e D C
power cable.
15
t
w
DC power
supply 13.2 V
to an
AC
outlet
Fuses
10 A
e
y
q
ANTENNA CONNECTOR
w
IGNITION LEAD
e
D-Sub 25-pin
Connect an external unit.
r
MICROPHONE HANGER
Connect the supplied mi-
crophone hanger to the
ground for microphone
on/off hook functions.
(See p. 1)
Red
Black
Microphone
r
t
EXTERNAL
SPEAKER JACK
Connect a 4–8 ø
external speaker.
y
DC POWER
RECEPTACLE
Connects to a 13.2 V
DC power supply. Pay
attention to polarities.
Make sure the ground
terminal of the DC
power supply
grounded.
is
