- Page 1 USER MANUAL 4 Port 4K 60Hz Switch with usb-C and HDMI inputs JTD-3005 | JTECH-4KSW3H1C J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM...
- Page 2 Scan the QR code below, or visit https://resource.jtechdigital.com/products/3005 to view and access detailed digital resources regarding this unit.
- Page 3 Safety Instructions: Before using this product, please carefully read the following safety instructions to ensure its proper use and keep this manual for future reference: To prevent electric shock, do not attempt to open the product. • Only qualified personnel should perform any repairs or maintenance. •...
-
Page 4: Table Of Contents
Table of Contents 1. What’s Included ..................... 5 2. Remote Control Function and Panel Overview ............. 6 3. Connection Diagram ..................... 7 4. Introduction ......................8 5. Features ........................ 8 6. Specifications ...................... 10 7. Troubleshooting ....................11 8. Maintenance ......................11 9. -
Page 5: What's Included
1. What’s Included... -
Page 6: Remote Control Function And Panel Overview
2. Remote Control Function and Panel Overview... -
Page 7: Connection Diagram
3. Connection Diagram... -
Page 8: Introduction

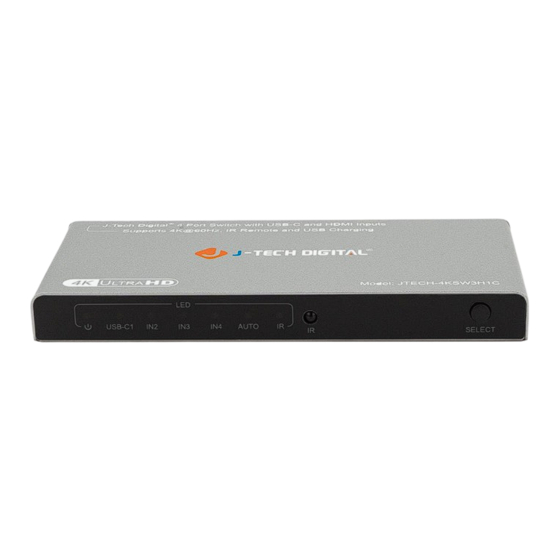

4. Introduction The HDMI 3 x HDMI + 1 USB-C 4K switcher 4K@60Hz 4:4:4 lets you connect a display or projector with three HDMI enabled video sources and one USB-C enabled video sources. The switch features four independent (3 x HDMI + 1 x USB-C) inputs that each support 4K resolution and 7.1 surround sound audio. - Page 9 HDCP 2.2 and 1.4 compliant. • Compatible with Thunderbolt 3 for USB-C input. • Compatible with DP 1.4 alt mode for USB-C input. • Supports High Dynamic Range (HDR) video. • Supports Consumer Electronic Control. • Supports highest data transfer rate up to 6.0Gbps per channel (18Gbps all channels). •...
-
Page 10: Specifications
6. Specifications Input Ports HDMI x 3, USB-C x 1 Output Ports HDMI x 1, USB-A x 1 Vertical Frequency Range 50/60Hz Video Amplifier Bandwidth 6.0Gbps/600MHz per channel (18Gbps all channels) Interlaced (50 & 60Hz) 480i, 576i, 1080i Progressive (50 & 60Hz) 480p, 576p, 720p, 1080p, 45@24/25/30/50/60Hz Limited Warranty... -
Page 11: Troubleshooting
7. Troubleshooting Problems Causes Solution Power light is off and product Power cable could not be Please check if the power is not working properly connected or the adapter is connected properly source device is off and the switch on the HDMI input source Screen splash issues HDMI cable may not be 2.0... -
Page 12: Mail-In Service
During the “Labor” limited warranty period, there will be no charge for labor. During the “Parts” warranty period, there will be no charge for parts. You must mail-in your product during the warranty period. This Limited Warranty is extended only to the original purchaser and only covers products purchased as new. - Page 13 WWW.JTECHDIGITAL.COM PUBLISHED BY J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM...
