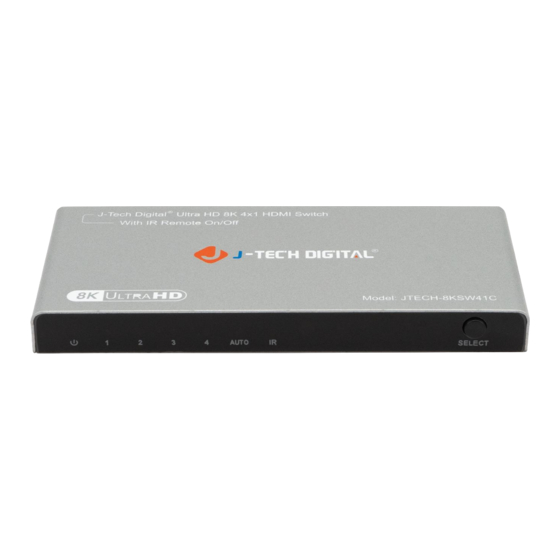

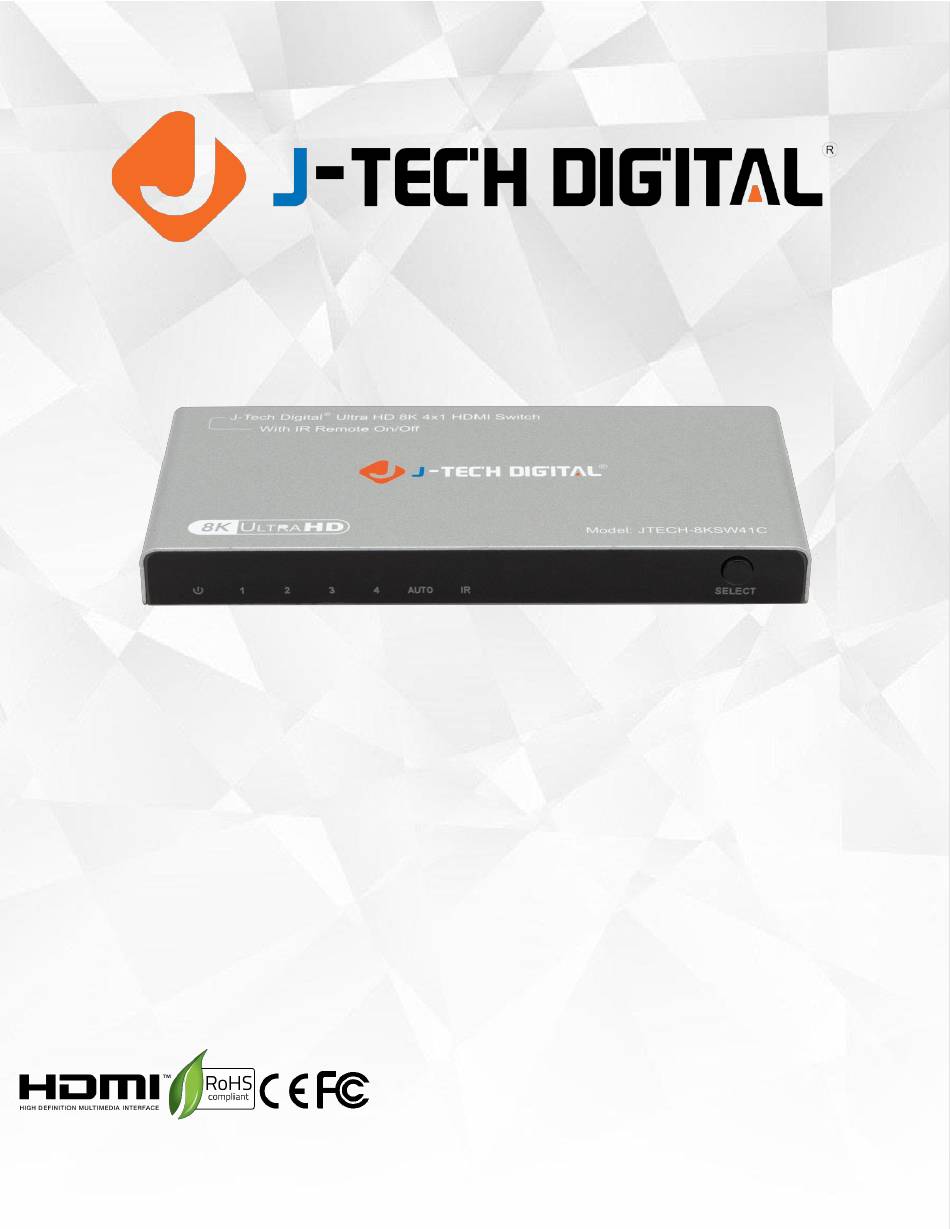

- Page 1 USER MANUAL Ultra HD 8K 4x1 HDMI Switch JTD-3004 | JTECH-8KSW41C J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM...
- Page 2 Scan the QR code below, or visit https://resource.jtechdigital.com/products/3004 to view and access detailed digital resources regarding this unit.
- Page 3 Safety Instructions: Before using this product, please carefully read the following safety instructions to ensure its proper use and keep this manual for future reference: To prevent electric shock, do not attempt to open the product. • Only qualified personnel should perform any repairs or maintenance. •...
-
Page 4: Table Of Contents
Table of Contents 1. Introduction ......................5 2. Package Contents ....................5 3. Remote Control Function and Panel Overview ............. 6 4. Features ........................ 8 5. Specifications ......................9 6. Connection Diagram ................... 10 7. Troubleshooting Common Issues ............... 11 8. -
Page 5: Introduction
1. Introduction The 4 port HDMI switch supports 8K@60Hz (7680x4320p@60Hz) lets you share a display or projector with 2 HDMI enable video sources. The switch features two independent inputs that each support 8K resolution and 7.1 surround sound audio. You’ll be amazed at how this video switch maintains Ultra-HD picture quality. -
Page 6: Remote Control Function And Panel Overview
3. Remote Control Function and Panel Overview 1. Power: Press to turn the switch on/off 2. 1-4: Press the number to select the input source accordingly 3. IR: Press to turn on/off the IR receiver function. If the IR mode LED indicator on the switch is on, the unit is in normal IR receiver mode. - Page 7 4. DC/5V: DC 5V Input via USB-C 5. HDMI Output Port 6. HDMI Input 1 -4 Ports 7. Power LED Indicator a. Blue LED indicates “working mode” b. No LED indicates “No power supply connected” or “standby mode” 8. 1 - 4 HDMI Input LED Indicators: a.
-
Page 8: Features
12. Source select button. Short press to change the input channel, and long press for 3 seconds to change between automatic and manual switching modes. Auto mode LED indicator will be on for automatic switching mode and off for manual switching mode. Long press the selector button for 6 seconds to turn on/off the IR receiver mode. -
Page 9: Specifications
Audio and Dolby True-HD) Note: 1. If you would like to output 8K@60Hz, 4K@120Hz, and 1080P@240Hz via the switcher in your displays, please make sure your source devices, your cable, and your monitors can all support the compatible resolution and refresh rates 2. -
Page 10: Connection Diagram
Dimensions (LxWxH) 136.3 x 61.5 x 14.5mm Net Weight 173g Note: Specifications are subject to change without notice 6. Connection Diagram... -
Page 11: Troubleshooting Common Issues
7. Troubleshooting Common Issues Q: Power light is off and product is not working. How can I fix this? A: First, please check the following items: 1. Ensure that your device’s HDMI input device is properly connected and it is powered on. 2. -
Page 12: Mail-In Service
During the “Labor” limited warranty period, there will be no charge for labor. During the “Parts” warranty period, there will be no charge for parts. You must mail-in your product during the warranty period. This Limited Warranty is extended only to the original purchaser and only covers products purchased as new. - Page 13 WWW.JTECHDIGITAL.COM PUBLISHED BY J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM...
