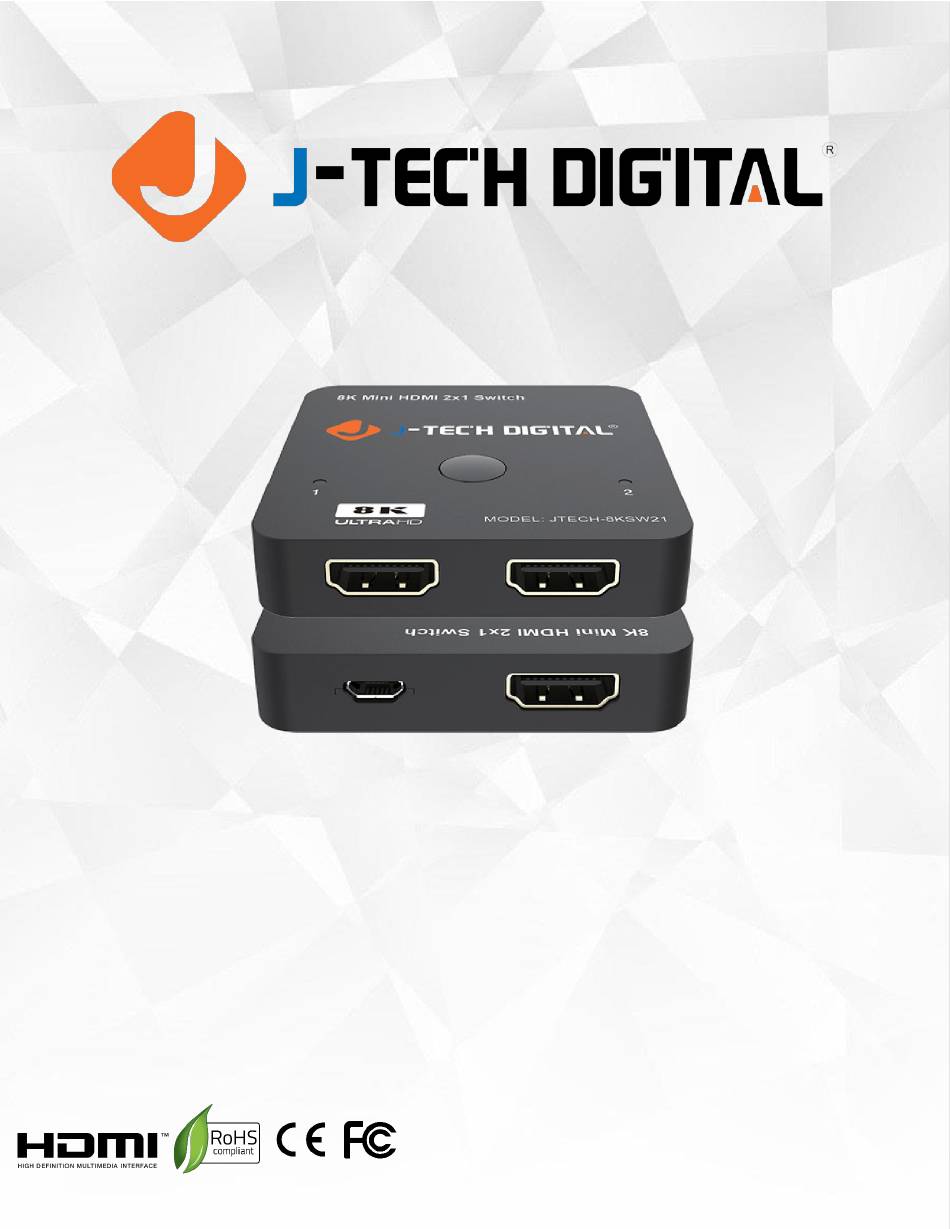

- Page 1 USER MANUAL 8K HDMI 2x1 Switch JTD-2935 | JTECH-8KSW21 J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction ................3 2. Features ................3 3. Package Contents ..............3 4. Specifications ............... 4 5. Operation Controls and Functions ..........5 6. Notes ................... 6 7. Application Example .............. 6 8. Product Service ..............7 9. -
Page 3: Introduction

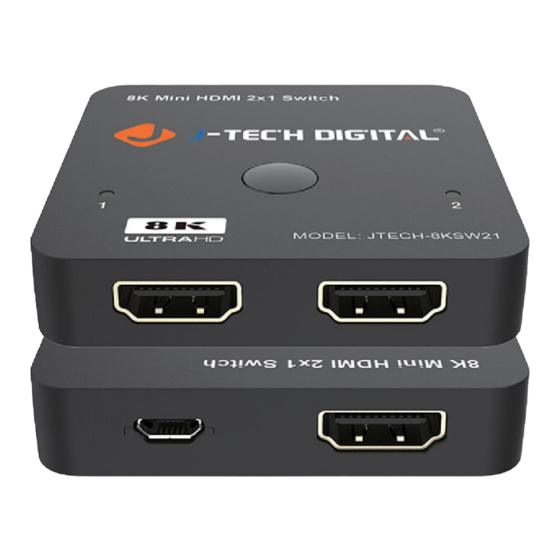

Introduction This 8K 2x1 HDMI 2.1 switcher can switch any of the 2 HDMI sources to 1 display. It supports video resolution up to 8K @ 60Hz 4:4:4, 48GBbps video bandwidth. It is suitable for outdoor display, video conference rooms, security monitoring, home theater and other applications. By using this 8K HDMI switcher, you can connect 2 sources, one in HDMI 1 and another in HDMI 2, and connect an external display to HDMI out. -
Page 4: Specifications
Specifications Technical HDMI Compliance HDMI 2.1 HDCP Compliance HDCP 2.3 Video Bandwidth 48Gbps Up to 8K@60Hzx 4:4:4 8/10/12bit, Video Resolution 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10- bit, 4K@120Hz 4:4:4 10-bit Color Depth 8-bit, 10-bit, 12-bit Color Space RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0 LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, HDMI Audio Formats DTS, DTS-EX, DTS-96/24, DTS High Res,... -
Page 5: Operation Controls And Functions
Operation Controls and Functions P a g e... -
Page 6: Notes
Notes • While using the HDMI switcher, power supply via Micro USB cable is not necessary. But in case some of your HDMI devices with insufficient power, please connect Micro USB cable to your USB devices for power supply. • If you need to use the switcher to output signals of 4K@ 120Hz or 8K@60Hz, please make sure that your HDMI cable, HDMI signal source and HDMI display all support the above resolution. -
Page 7: Product Service
Product Service 1) Damage requiring service: The unit should be serviced by qualified service personnel if: (a) The DC power supply cord or AC adapter has been damaged; (b) Objects or liquids have gotten into the unit; (c) The unit has been exposed to rain; (d) The unit does not operate normally or exhibits a marked change in performance;... -
Page 8: 11. Limited Warranty Limits And Exclusions
LIMITED WARRANTY, ARE YOUR RESPONSIBILITY. 12. Extended Warranty With the registration of supported J-Tech Digital products, you extend the current warranty by 6 months. This extension is added to the warranty that starts at the purchase date of the device supported. - Page 9 WWW.JTECHDIGITAL.COM PUBLISHED BY J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM P a g e...
