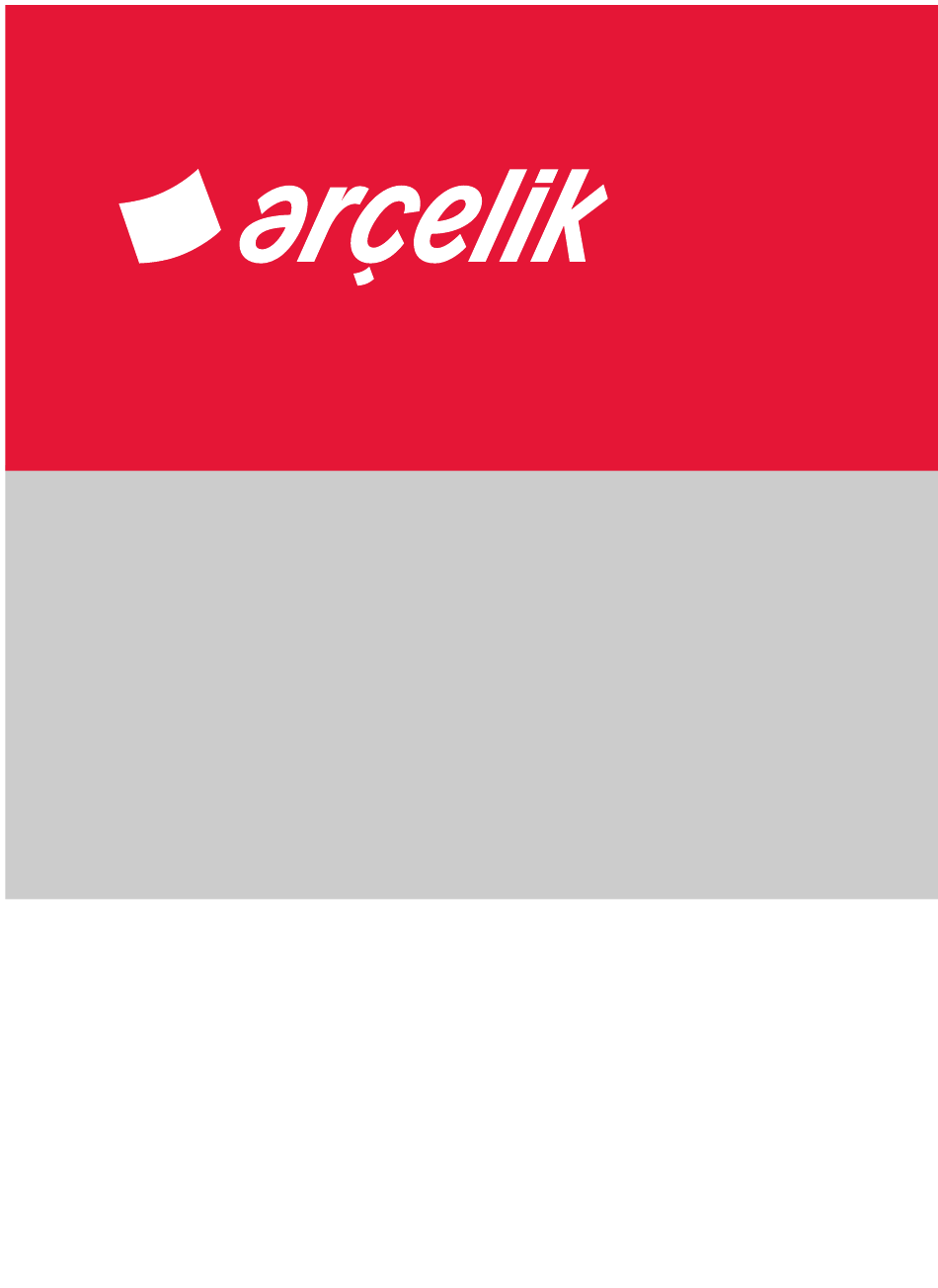

- Page 1 Washing Machine User's Manual 6104 HS 6084 H...
- Page 2 Please read this user manual first! Dear Customer, We hope that you get the best results from the product which has been manufactured in state-of-the-art plants and passed through a strict quality control procedure. Therefore, please read the entire user manual carefully before using the product and keep it as a reference for future use.
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1 Your washing machine Additional programmes ... . 18 • Gömlek (Shirts) ....18 Overview . -
Page 4: Your Washing Machine
Your washing machine Overview 1- Power cable 5- Adjustable feet 2- Top panel 6- Loading door 3- Control panel 7- Detergent drawer 4- Filter cap 8- Drain hose... -
Page 5: Technical Specifications
Technical specifications Models Maximum dry laundry capacity (kg) Height (cm) Width (cm) Depth (cm) Net weight (±4 kg.) 220-240 V / 50Hz Electrical input (V/Hz) Total current (A) 2000-2350 Total power (W) 1000 Spin speed (rpm max.) 1.35 1.35 Stand-by mode power (W) 0.25 0.25 Off-mode power (W) -
Page 6: Important Safety Instructions
Important safety instructions • Never open the loading door or This section contains safety instructions remove the filter while there is still that will help protect from risk of personal water in the drum. Otherwise, risk of injury or property damage. Failure to flooding and injury from hot water will follow these instructions shall void any occur. -
Page 7: Children's Safety
Children's safety • Electrical products are dangerous for the children. Keep children away from the product when it is in use. Do not let them to tamper with the product. Use child lock to prevent children from intervening with the product. •... -
Page 8: Installation
Installation Refer to the nearest Authorised Service Removing packaging Agent for installation of the product. To reinforcement make the product ready for use, review Tilt the machine backwards to remove the information in the user manual and the packaging reinforcement. Remove the make sure that the electricity, tap water packaging reinforcement by pulling the supply and water drainage systems are... -
Page 9: Connecting Water Supply
will get damaged or the product will switch to protection mode and will not operate. Do not use old or used water inlet hoses on the new product. It may cause stains on your laundry. 1. Connect the special hoses supplied with the product to the water inlets 3. -
Page 10: Connecting To The Drain
Connecting to the drain an appropriate clamp as not to come off and leak. • The end of the drain hose must be Adjusting the feet directly connected to the wastewater drain or to the washbasin. In order to ensure that the product Your house will be flooded if the operates more silent and vibration- hose comes out of its housing... -
Page 11: First Use
for any damages that will arise when the Use an anti-limescale suitable for the product is used without grounding in washing machines. accordance with the local regulations. Some water might have remained in • Connection must comply with national the product due to the quality control regulations. -
Page 12: Preparation
Preparation Things to be done for energy saving Following information will help you use the product in an ecological and energy- Wash with sensitive, Washing water efficient manner. .short programmes temperature • Operate the product in the highest capacity allowed by the programme you have selected, but do not overload;... -
Page 13: Correct Load Capacity
Correct load capacity The maximum load capacity depends on the type of laundry, the degree of soiling and the washing programme desired. The machine automatically adjusts the amount of water according to the weight of the loaded laundry. Follow the information in the “Programme and consumption table”. -
Page 14: Using Detergent And Softener
Using detergent and softener • Wash your delicate clothes only with special detergents (liquid detergent, Detergent Drawer wool shampoo, etc.) used solely for The detergent drawer is composed of delicate clothes. three compartments: • When washing dark coloured clothes - (I) for prewash and quilts, it is recommended to use - (II) for main wash liquid detergent. - Page 15 putting in the detergent cup. Tablet detergents may leave residues in the detergent compartment. If you encounter such a case, place the tablet detergent between the laundry, close to the lower part of the drum in future washings. Use the tablet or gel detergent without selecting the prewash function.
-
Page 16: Tips For Efficient Washing
• Oxygen based bleaches can be used agent from the same compartment together with detergents; however, while the machine is still taking in if its thickness is not the same with water. the detergent, put the detergent first Using limescale remover into the compartment nr. -
Page 17: Operating The Product
Operating the product Control panel 1 - Programme Selection knob (Uppermost position On / Off) 2 - Display 3 - Delayed Start button 4 - Programme Follow-up indicator 5 - Start / Pause button 6 - Auxiliary Function buttons 7 - Spin Speed Adjustment button 8 - Temperature Adjustment button Preparing the machine Heavily soiled white cottons... -
Page 18: Main Programmes
that particular type of fabric. • Pamuklu Eko (Cotton Economic) When selecting a programme, always You may wash your normally soiled consider the type of fabric, colour, durable cotton and linen laundry in this degree of soiling and permissible programme with the highest energy and water temperature. -
Page 19: Temperature Selection
Before selecting this programme, select the desired spin speed and press Start / Pause button. First, the machine will drain the water inside of it. Then, it will spin the laundry with the set spin speed and drain the water coming out of them. If you wish to drain only the water without spinning your laundry, select the Pump+Spin programme and then select... -
Page 20: Programme And Consumption Table
Programme and consumption table Auxiliary functions Selectable Programme temperature range °C Pamuklu 2.48 1600 • • • • • • • Cold-90 Pamuklu 1.50 1600 • • • • • • • Cold-90 Pamuklu 0.96 1600 • • • • •... -
Page 21: Auxiliary Function Selection
• İlave Su (Plus water) The auxiliary functions in the table This function enables you to wash and may vary according to the model of rinse your laundry with plenty of water your machine. in Cottons, Synthetics, Delicates, and Auxiliary function selection Woolens programmes. -
Page 22: Starting The Programme
up to 19 hours. Delayed start time can be 2. Programme follow-up light showing increased by increments of 1 hour. the startup of the programme will turn Do not use liquid detergents when you set Delayed Start! There is the If no programme is started or no key risk of staining of the clothes. -
Page 23: Progress Of Programme
and 2 Auxiliary Function buttons the Loading Door while the Loading will flash, and "C03", "C02", "C01" will Door light is off, you have to cancel the appear on the display respectively while current programme; see "Canceling the you keep the buttons pressed for 3 programme". -
Page 24: End Of Programme
will be canceled. End / Cancel light will flash continuously to notify that the programme has been canceled. Pump function is activated for 1-2 minutes regardless of the programme step, and whether there is water in the machine or not. After this period, your machine will be ready to start with the first step of the new programme. -
Page 25: Maintenance And Cleaning
Maintenance and cleaning Service life of the product extends and (compartment nr. II). If the anti-limescale frequently faced problems decrease if is in tablet form, put only one tablet into cleaned at regular intervals. compartment nr. II. Dry the inside of the bellow with a clean piece of cloth after the Cleaning the detergent drawer programme has come to an end. -
Page 26: Draining Remaining Water And Cleaning The Pump Filter
cleaned as they do get dirty. Temperature of the water inside the machine may rise up to 90 ºC. To avoid burning risk, filter must be cleaned after the water in the machine cools down. 2. Open the filter cap. If the filter cap is composed of two pieces, press the tab on the filter cap downwards and pull the piece out... - Page 27 while installing it into its housing. Seat the filter into its place completely. Otherwise, water may leak from the filter cap. 6. If the filter cap is composed of two pieces, close the filter cap by pressing on the tab. If it is one piece, seat the tabs in the lower part into their places first, and then press the upper part to a.
-
Page 28: Troubleshooting
Troubleshooting Programme cannot be started or selected. • Washing machine has switched to self protection mode due to a supply problem (line voltage, water pressure, etc.). >>> Press and hold Start / Pause / Cancel button for 3 seconds to reset the machine to factory settings. (See "Canceling the programme") Water in the machine. - Page 29 Loading door cannot be opened. • Door lock is activated because of the water level in the machine. >>> Drain the water by running the Pump or Spin programme. • Machine is heating up the water or it is at the spinning cycle. >>> Wait until the programme completes.
- Page 30 Machine does not switch to spinning step. • There might be an imbalance of laundry in the machine. >>> Automatic unbalanced load detection system might be activated due to the unbalanced distribution of the laundry in the drum. Machine does not switch to spinning step when the laundry is not evenly distributed in the drum to prevent any damage to the machine and to its surrounding environment.
- Page 31 Colour of the clothes faded. • Excessive laundry was loaded in. >>> Do not load the machine in excess. • Detergent in use is damp. >>> Keep detergents closed in an environment free of humidity and do not expose them to excessive temperatures. •...
- Page 32 Detergent residue in the detergent drawer. • Detergent is put in wet drawer. >>> Dry the detergent drawer before putting in detergent. • Detergent has gotten damp. >>> Keep detergents closed in an environment free of humidity and do not expose them to excessive temperatures. •...
- Page 33 Foam is overflowing from the detergent drawer. • Too much detergent is used. >>> Mix 1 tablespoonful softener and ½ l water and pour into the main wash compartment of the detergent drawer. Put detergent into the machine suitable for the programmes and maximum loads indicated in the “Programme and consumption table”.
