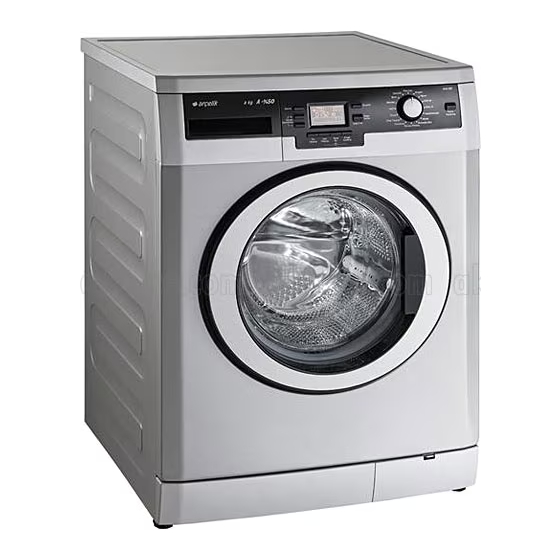

- Page 1 Washing Machine User's Manual 8124 HSE...
- Page 2 Please read this user manual first! Dear Customer, We hope that you get the best results from the product which has been manufactured in state-of-the-art plants and passed through a strict quality control procedure. Therefore, please read the entire user manual carefully before using the product and keep it as a reference for future use.
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1 Your washing machine Main programmes ....18 Additional programmes ... . 18 Overview . -
Page 4: Your Washing Machine
Your washing machine Overview 1- Power cable 5- Adjustable feet 2- Top panel 6- Loading door 3- Control panel 7- Detergent drawer 4- Filter cap 8- Drain hose... -
Page 5: Technical Specifications
Technical specifications 8124 HSE Models Maximum dry laundry capacity (kg) Height (cm) Width (cm) Depth (cm) Net weight (±4 kg.) Electrical input (V/Hz) 220-240 V / 50Hz Total current (A) Total power (W) 2000-2350 Spin speed (rpm max.) 1200 Stand-by mode power (W) 1.40... -
Page 6: Important Safety Instructions
Important safety instructions This section contains safety instructions by a qualified electrician. Our company that will help protect from risk of personal shall not be liable for any damages injury or property damage. Failure to follow that will arise when the product is used these instructions shall void any warranty. -
Page 7: Children's Safety
• The manufacturer waives any responsibility arisen from incorrect usage or transportation. Children's safety • Electrical products are dangerous for the children. Keep children away from the product when it is in use. Do not let them to tamper with the product. Use child lock to prevent children from intervening with the product. -
Page 8: Installation
Installation Refer to the nearest Authorised Service Removing packaging Agent for installation of the product. To reinforcement make the product ready for use, review Tilt the machine backwards to remove the information in the user manual and the packaging reinforcement. Remove the make sure that the electricity, tap water packaging reinforcement by pulling the supply and water drainage systems are... -
Page 9: Connecting Water Supply
3. Attach the plastic covers supplied in the User Manual bag into the holes on the rear panel. (P) Keep the transportation safety bolts in a safe place to reuse when the washing Ensure that the cold and hot water machine needs to be moved again in connections are made correctly when the future. -
Page 10: Adjusting The Feet
• In case the hose is elevated after laying it on the floor level or close to the ground (less than 40 cm above the ground), water discharge becomes more difficult and the laundry may come out excessively wet. Therefore, follow the heights described in the figure. -
Page 11: First Use
fuse. instructions. Do not dispose of them with normal domestic waste. • The specified voltage must be equal to your mains voltage. Transportation of the product • Do not make connections via extension 1. Unplug the product before transporting cables or multi-plugs. Damaged power cables must be 2. -
Page 12: Preparation
Preparation Things to be done for energy saving Following information will help you use the product in an ecological and energy- Wash with sensitive, Washing water efficient manner. .short programmes temperature • Operate the product in the highest capacity allowed by the programme you have selected, but do not overload;... -
Page 13: Correct Load Capacity
Correct load capacity The maximum load capacity depends on the type of laundry, the degree of soiling and the washing programme desired. The machine automatically adjusts the amount of water according to the weight of the loaded laundry. Follow the information in the “Programme and consumption table”. -
Page 14: Using Detergent And Softener
Using detergent and softener • When washing dark coloured clothes and quilts, it is recommended to use Detergent Drawer liquid detergent. The detergent drawer is composed of three • Wash woolens with special detergent compartments: made specifically for woolens. - (I) for prewash Use only detergents manufactured - (II) for main wash specifically for washing machines. - Page 15 detergent between the laundry, close to the lower part of the drum in future washings. Use the tablet or gel detergent without selecting the prewash function. Using starch • Add liquid starch, powder starch or the dyestuff into the softener compartment as instructed on the package.
-
Page 16: Tips For Efficient Washing
Tips for efficient washing Clothes Light colours and Delicates/ Colors Dark colors whites Woolens/Silks (Recommended (Recommended (Recommended (Recommended temperature temperature temperature range temperature range range based range based based on soiling based on soiling level: on soiling level: on soiling level: level: 40-90C) cold-40C) cold-40C) -
Page 17: Operating The Product
Operating the product Control panel Spin Speed Adjustment button Display Temperature Adjustment button Programme Selection knob On / Off button Delayed Start buttons (+ / -) Auxiliary Function buttons Start / Pause / Cancel button Display symbols - Spin Speed indicator - Temperature indicator - Spin symbol - Temperature symbol... -
Page 18: Preparing The Machine
Preparing the machine • Sentetik (Synthetics) Use this programme to wash your synthetic 1. Make sure that the hoses are clothes (shirts, blouses, synthetic/cotton connected tightly. blends, etc.). It washes with a gentle action 2. Plug in your machine. and has a shorter washing cycle compared 3. -
Page 19: Temperature Selection
• Elde Yıkama (Hand wash) Use this programme to wash your woolen/ delicate clothes that bear “not machine- washable” tags and for which hand wash is recommended. It washes laundry with a very gentle washing action to not to damage clothes. •... -
Page 20: Spin Speed Selection
Spin speed selection 10° and finally, “-” symbol indicating the cold wash option appears on the display. Whenever a new programme is selected, the recommended spin speed of the selected programme is displayed on the spin speed indicator. To decrease the spin speed, press the Spin Speed Adjustment button. -
Page 21: Programme And Consumption Table
Programme and consumption table Auxiliary functions Selectable Programme temperature range °C Pamuklu 2.60 1600 • • • • • • 90-Cold Pamuklu 1.75 1600 • • • • • • 90-Cold Pamuklu 0.90 1600 • • • • • • 90-Cold Yorgan 0.75... -
Page 22: Auxiliary Function Selection
Auxiliary function selection F2 appears on the display when you select this function (b). Select the desired auxiliary functions before When you select this function, load starting the programme. Furthermore, you your machine with half of the maximum may also select or cancel auxiliary functions laundry specified in the programme that are suitable to the running programme table. -
Page 23: Time Display
completed. 4. Press Start / Pause / Cancel button. Delayed start countdown starts. • Soaking Delayed Start symbol illuminates The Soaking auxiliary function ensures steadily. Start symbol appears. “:” sign better removal of stains ingrained into the in the middle of the delayed start time clothes by holding them in the detergent on the display starts flashing. -
Page 24: Progress Of Programme
3. Loading door is locked and Door open the loading door in this step. Symbol Locked symbol appears on the display. disappears when the door is ready to open. You can open the door when the symbol 4. The symbol of the step from which the programme has started appears on the disappears. -
Page 25: Child Lock
Child Lock Use Child Lock function to prevent children from tampering with the machine. Thus you can avoid any changes in a running programme. You can switch on and off the If you want to open the loading machine with On / Off button when door after you have cancelled the the Child Lock is active. -
Page 26: Maintenance And Cleaning
Maintenance and cleaning inside of the bellow with a clean piece of Service life of the product extends and cloth after the programme has come to an frequently faced problems decrease if end. cleaned at regular intervals. Repeat Drum Cleaning process in every Cleaning the detergent drawer 2 months. -
Page 27: Draining Remaining Water And Cleaning The Pump Filter
the water in the machine cools down. 2. Open the filter cap. If the filter cap is composed of two pieces, press the tab on the filter cap downwards and pull the piece out towards yourself. 1. Close the taps. 2. - Page 28 is emptied, repeat the above procedure to drain the water in the machine completely. c. When draining of water is finished, close the end by the plug again and fix the hose in its place. d. Turn the pump filter to take it out. Discharging the water when the product does not have an emergency draining hose:...
-
Page 29: Troubleshooting
Troubleshooting Programme cannot be started or selected. • Washing machine has switched to self protection mode due to a supply problem (line voltage, water pressure, etc.). >>> Press and hold Start / Pause / Cancel button for 3 seconds to reset the machine to factory settings. (See "Canceling the programme") Water in the machine. - Page 30 Loading door cannot be opened. • Door lock is activated because of the water level in the machine. >>> Drain the water by running the Pump or Spin programme. • Machine is heating up the water or it is at the spinning cycle. >>> Wait until the programme completes.
- Page 31 Machine does not switch to spinning step. • There might be an imbalance of laundry in the machine. >>> Automatic unbalanced load detection system might be activated due to the unbalanced distribution of the laundry in the drum. Machine does not switch to spinning step when the laundry is not evenly distributed in the drum to prevent any damage to the machine and to its surrounding environment.
- Page 32 Colour of the clothes faded. • Excessive laundry was loaded in. >>> Do not load the machine in excess. • Detergent in use is damp. >>> Keep detergents closed in an environment free of humidity and do not expose them to excessive temperatures. •...
- Page 33 Detergent residue in the detergent drawer. • Detergent is put in wet drawer. >>> Dry the detergent drawer before putting in detergent. • Detergent has gotten damp. >>> Keep detergents closed in an environment free of humidity and do not expose them to excessive temperatures. •...
- Page 34 Laundry remains wet at the end of the programme • Excessive foam might have occurred and automatic foam absorption system might have been activated due to too much detergent usage. >>> Use recommended amount of detergent. Machine does not switch to spinning step when the laundry is not evenly distributed in the drum to prevent any damage to the machine and to its surrounding environment.
