Summary of Contents for GGMgastro FLT-140

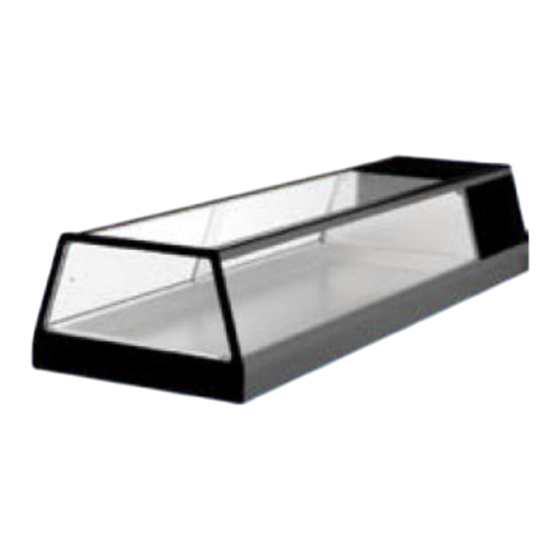

- Page 1 COLD DISPLAY UNIT USER MANUEL...
- Page 2 Safety Tips: Emplace it on a flat, stable surface with the balance. Installation and, if necessary, repairs should be performed by an authorized service representative/authorized technician. Do not remove any components or service panel from this product. Consult Local and National Standards to comply with: Occupational Health and Safety Legislation BS EN Code of Practice Fire precautions...
- Page 3 Promotion Please take a few moments to read this manual carefully. Correct maintenance and operation of this machine is the best possible Food Storage performance of your product. To get the best results from Package Included your device, follow these instructions: The following are included: Refrigerator...
- Page 4 Start-Up: 1. Make sure the power switch is set to [O] and plug it in 2. Turn on the power. The device displays the current temperature inside on the first screen. Control Section: Setting the Working Temperature Manual Defrost...
- Page 5 Press and hold the defrost button The Defrost light comes on for 2 seconds to start a manual defrost. Cleaning, Care and Maintenance • Turn off and disconnect from power source before cleaning. Clean the inside of the device as often as possible. •...
-
Page 6: Before Calling Service
Troubleshooting The following sounds can be heard while your refrigerator is operating. These Normal. Humming sound: A sound is heard in the refrigerant pipes during the first operation, when the gas decides to circulate completely in the system. Vibrating/ Airflow or humming sound: Fans/compressor speed regulation auto-adjusts to achieve performance Hissing/Crying sound: Vibration of refrigerant flow,... - Page 7 Fault Messages L5 - Access Code (Password) is necessary. Def - Informs that a defrost is running (Only if parameter is d2 = 2) E1 – Prop 1 fault. (Open circuit, pass, NTC: heat > 110 °C or <-55°C PTC: heat > 150 °C or < 58 °C) – ( should be equalized at °F WARNING: Snow on the device shows that it is melting.

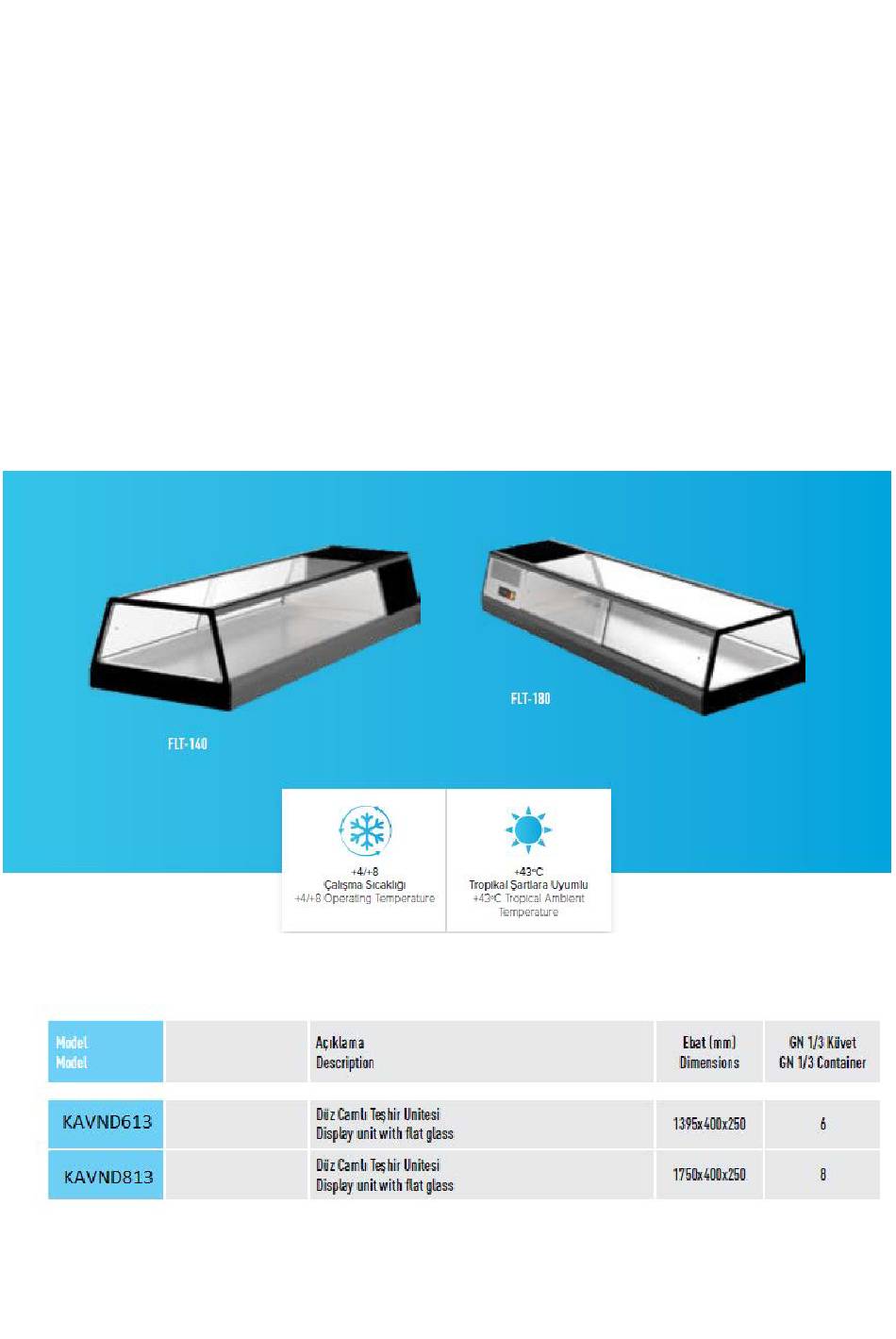

- Page 8 Technical Features: Temperature Dimensions Model Voltage Power Capacity Cooler Range ( HxWxD) mm R290 FLT-140 230V 50Hz 170W Between +4°C / +8°C GN 1/3 Tub:6 1395x400x250 100g R290 FLT-180 230V 50Hz 200W Between +4°C / +8°C GN 1/3 Tub:8 1750x400x250...
- Page 9 All rights reserved. No part of these instructions may be reproduced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise.
