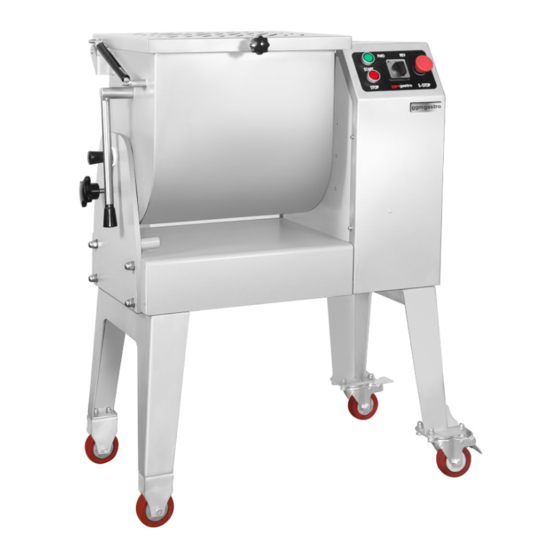

- Page 1 OPERATION MANUAL FOR FMH40 STUFFING MACHINE ENGLISH VERSION USER MANUAL Please read the instruction carefully before use.Parameters are subject to change without prior notice!
- Page 2 INDEX Ⅰ . TECHNICAL DATA 1.1 SCOPE OF APPLICATION 1.2 TECHNICAL PARAMETERS 1.3 OPERATING PRINCIPLE 1.4 MAIN STRUCTURE Ⅱ . GENERAL DESCRIPTION Ⅲ .ENVIRONMENT 3.1 PACKAGE 3.2 CLEAN 3.3 TRIM Ⅳ .INSTALLATION 4.1 UNPACK 4.2 PLACEMENT Ⅴ .CONNECTION 5.1 ELECTRICAL CONNECTION 5.2 REQUIREMENTS FOR THE USE OF CABLES 5.3 CORCUIT INTERRUPTER 5.4 EQUIPOTENTIAL NODE AND EARTH WIRE...
-
Page 3: Scope Of Application
＜85%； Electrical source: 230V□，50Hz□ Noise Level: ≤70dB(A). Shape Size（mm） Model Power（W) Stir Speed（r/min） Efficiency（kg/h） L×W×H FMH40 26.5 850X647X988 1.3 OPERATING PRINCIPLE When the machine is working, close the lid combination and puts various ingredients such as roots, stems,... -
Page 4: Main Structure
leaf vegetables or meat into the stuffing pan. An angle of about 45 degrees is formed between the rotating shaft and the blades fixed on it. Through the rotation of the shaft, the inner filling is moved forward and backward. The blades at both ends ,which are at right angles to the end of the inside wall, will stir up the filling at far end of the slot and then transfer it to the center. - Page 5 Ⅱ General Description Read the installation manual carefully before installation. Please keep the installation manual for later use. Fire prevention- Please ensure that there are no combustible and flammable objects around the electrical equipment.Please keep it away from the flammable objects. ...
- Page 6 Installation and maintenance must be carried out by professional personnel authorized by the manufacturer. !!! Failure to comply with the above will not guarantee the safety of the equipment,and will not enjoy the warranty service. Ⅲ Environment 3.1 PACKAGE Packaging materials are environmentally sound and can be safely incinerated and later stored.
- Page 7 gloves. Check that the random parts are complete. 4.2 PLACEMENT When Handling the machine, be careful not to hurt others. Allow sufficient space for equipment to operate,maintain and ventilate. It is prohibited to store or use flammable objects or liquids around the machine. Check after placement whether horizontal placement is required.The wrong levelling can cause the machine to fail.
- Page 8 human life. Ground wire is reliably grounded. Equipotential identifier, the mutual connection, the use of parts of equipment or system to achieve the same potential terminal, this is not necessarily a grounding potential, such as local connection to each other. Ⅵ...
- Page 9 Ⅶ .CLEANING AND MAINTENANCE Warning: power off the machine before cleaning. Electrical components are not submerged in water! Improper operation will permanently deform and cause damage to the normal operation of the machine! 7.1 EXTERNAL PART Use soapy water after use, remove dirt and residue from steel surface with or without detergent cloth or sponge, and thoroughly dry the surface after cleaning.
-
Page 10: Circuit Diagram
Ⅸ .ACCESSORY 9.1 CIRCUIT DIAGRAM Contactor Change-over switch RECS Electronic centrifugal switch... -
Page 11: Packing List
Operating capacitance Starting capacitance Motor Emergency stop button Stop button Start button S1 Position switch Thermal protector 9.2 PACKING LIST Filling machine ×1 operating instruction ×1...
