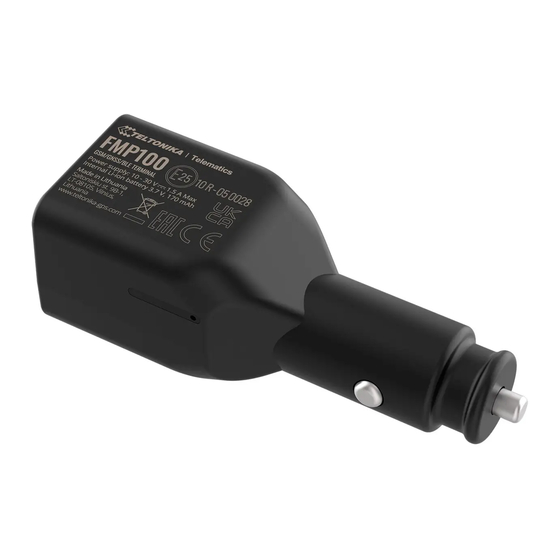

Teltonika FMP100 Manual

Hide thumbs Also See for FMP100:

https://wiki.teltonika-gps.com/view/FMP100_LED_status

FMP100 LED status

Main Page

Fast & Easy Trackers

Contents

1 Package contents

Package contents

The FMP100 device have predefined LED and buzzer indication set out of the box. To better

understand device indications, in this page will be explained device behavior.

GSM indication

When device doesn't obtain GSM signal, after every 300 seconds period, for the 0.5 second

three times will light up RED light and buzzer will make sound simultaneously.

GNSS indication

FMP100

FMP100 Manual

> FMP100 LED status

Table of Contents

Do you have a question about the FMP100 and is the answer not in the manual?

Page 1 3 GNSS indication 4 Event indication Package contents The FMP100 device have predefined LED and buzzer indication set out of the box. To better understand device indications, in this page will be explained device behavior. GSM indication When device doesn't obtain GSM signal, after every 300 seconds period, for the 0.5 second three times will light up RED light and buzzer will make sound simultaneously.
Page 2 GREEN light. Event indication When FMP100 button is pressed, you will hear an audio notification for the 1 second to confirm button click was registered. Private mode will be indicated with GREEN light, which will blink three times for 0.5 second.
