Summary of Contents for Teltonika FM1100
- Page 1 FM1100 with Light Vehicles Can adapter LV-CAN200 Manual V1.8 1/12 Reproduction forbidden without Teltonika, UAB written authorization – All Rights Reserved...
-
Page 2: Table Of Contents
CAN Program Number request by SMS ..................11 Get CAN Packets Count by SMS ....................11 Get LV-CAN info by SMS ......................12 References ..........................12 Changelog ..........................12 2/12 Reproduction forbidden without Teltonika, UAB written authorization – All Rights Reserved... -
Page 3: Legal Notice
The device is designed to be mounted in a zone of limited access, which is inaccessible for the operator. All related devices must meet the requirements of standard EN 60950-1. Teltonika is not responsible for vehicle damage caused by installation of adapter. 3/12... -
Page 4: Purpose Of Light Vehicles Can Adapter Lv-Can200

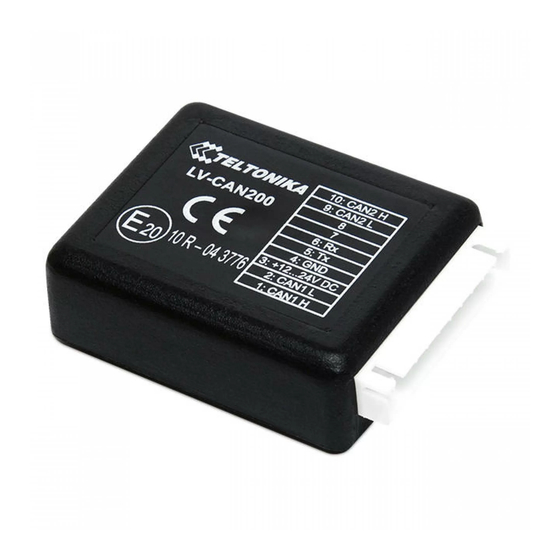

3 Purpose of Light Vehicles Can Adapter LV-CAN200 LV-CAN200 is used to listening data from light vehicles. With this adapter FM1100 device is able to collect and send vehicle data. ECU1 CAR CAN L FM1100 CAN200 ECU2 Figure 1 Connection block diagram FM1100 shares the same USB port for connecting adapter and configuring device with PC. -
Page 5: Lv-Can200 Program Number Selection
LV-CAN200 must be set to program number which depends on vehicle model. Needed program number is always written on LV-CAN200 mounting scheme. LV-CAN200 program number configuration via SMS command Since FM1100 firmware version 43.00.17 and later, LV-CAN200 program number can be set remotely, using SMS command: setcanprog X X is new program number value. -
Page 6: Connecting Fm1100 With Light Vehicles Can Adapter
5 Connecting FM1100 with Light Vehicles Can adapter Connect USB Plug to FM1100 device, connect Light Vehicles Can adapter to other end of the cable. Connect Light Vehicles Can adapter Pin 1 and Pin 2 to cars CAN bus. CAN interface location of the supported light vehicle is described on mounting scheme. -
Page 7: Fm11 Configuration
FM1100 can be configured using “SCAN” function or “Offline Configuration” (Figure 8) SCAN function – is in use when FM1100 is connected to CAN adapter (Figure 6), then wait 10s (Note, that car engine must be started), disconnect adapter from FM1100, and connect PC USB cable to FM1100 Device (Figure 3). -
Page 8: Fuel
For example Speed changes, low fuel level, engine temperate, etc. Send data to server field – allows enabling CAN element so it is added to the AVL data packet and sent to the server. By default, all CAN elements are disabled and FM1100 records only GPS data. - Page 9 Figure 6 Configurator example Available CAN Bus IO parameters and configuration can be found in Configurators CAN tab (Figure 8) and in next chapter “Parameters ID”. 9/12 Reproduction forbidden without Teltonika, UAB written authorization – All Rights Reserved...
-
Page 10: Parameters Id
Fuel Level [%] 0-100 %* NOTE: „Total Fuel Used“ is sent to server multiplied by 10. Example: if value was 150.5 liters, „1505“ will be sent to server. 10/12 Reproduction forbidden without Teltonika, UAB written authorization – All Rights Reserved... -
Page 11: Sms Configuration
Response: “CAN Program Nr: XXXX” 10 Get CAN Packets Count by SMS Total CAN packets count request via SMS: SMS Text: “ getcanpackets” Response: “Total LVCAN200 packets: XXXXXXXX” 11/12 Reproduction forbidden without Teltonika, UAB written authorization – All Rights Reserved... -
Page 12: Get Lv-Can Info By Sms
Table 2 ACQUIRED PARAMETRS IO ID updated 2014 June 20 Table 1 Param Index added 2014 October 14 Added new available LV-CAN200 cable wires color; Added LV-CAN200 program number configuration via SMS 12/12 Reproduction forbidden without Teltonika, UAB written authorization – All Rights Reserved...
