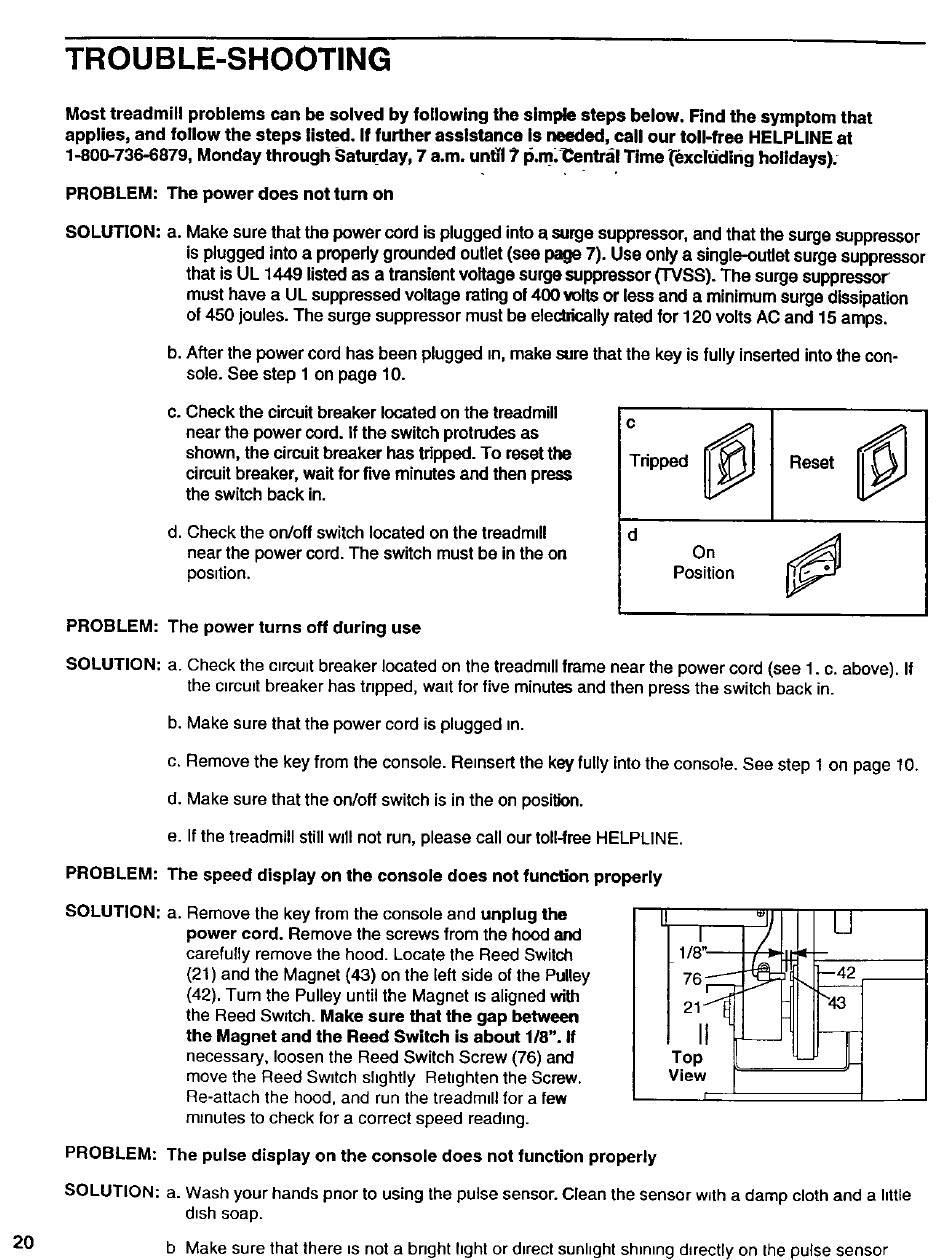

TROUBLE-SHOOTING
Most treadmill problems can be solved by following the simple steps below. Find the symptom that
applies, and follow the steps listed. If further assistance Is needed, call our toll-free HELPLINE at
1-800-736-6879, Monday through Saturday, 7 a.m. untTI 7 I_om.-_.enfralTime (excldding holidays):
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a propedy grounded outlet (see page 7). Use only a single-outlet surge suppressor
that is UL 1449 listed as a transient voltage surge suppressor (FVSS). The surge suppressor
must have a UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation
of 450 joules. The surge suppressor must be elecffically rated for 120 volts AC and 15 amps.
b. After the power cord has been plugged m, make sum that the key is fully inserted into the con-
sole. See step 1 on page 10.
c. Check the cimuit breaker located on the treadmill
near the power cord. If the switch protrudes as
shown, the circuit breaker has tripped. To reset the
circuit breaker, wait for five minutes and then press
the switch back in.
d. Check the on/oft switch located on the treadmill
near the power cord. The switch must be in the on
position.
C
Tdpped
OnJ
Position
PROBLEM: The power turns off during use
SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see 1. c. above). If
the circuit breaker has tripped, watt for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in.
c. Remove the key from the console. Remsert the key fully into the console. See step 1 on page 10.
d. Make sure that the on/off switch is in the on position.
e. If the treadmill still wdl not run, please call our toll-free HELPLINE.
PROBLEM: The speed display on the console does not function properly
SOLUTION: a. Remove the key from the console and unplug the
power cord. Remove the screws from the hood and
carefully remove the hood. Locate the Reed Switch
(21) and the Magnet (43) on the left side of the Pulley
(42). Turn the Pulley until the Magnet =saligned with
the Reed Switch. Make sure that the gap between
the Magnet and the Reed Switch is about 1/8". If
necessary, loosen the Reed Switch Screw (76) and
move the Reed Switch slightly Rehghten the Screw.
Re-attach the hood, and run the treadmill for a few
minutes to check for a correct speed readmg.
,, , 171H u
1/8"-----__ __
__
HIII
,o; I
View
PROBLEM: The pulse display on the console does not function properly
SOLUTION: a. Wash your hands pnor to using the pulse sensor. Clean the sensor w=tha damp cloth and a httle
dish soap.
20 b Make sure that there ts not a bright hght or direct sunhght shining directly on the pulse sensor
