LT28 D19 Engine
Safety, Operation, Maintenance
& Parts Manual

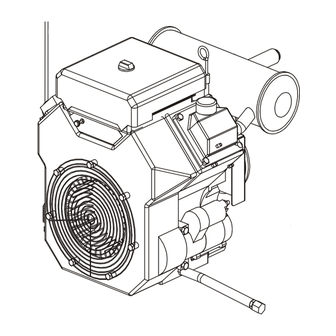

038576 Engine, 19HP Deutz Diesel
rev. C
Safety is our #1 concern!
Form #1351
Used with:
LT28D19
rev. A1.02 - A6.02
WARNING! Read and understand this
!
manual before using this machine.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LT28 D19 and is the answer not in the manual?

Questions and answers

Summary of Contents for Wood-mizer LT28 D19

  • Page 1 LT28 D19 Engine Safety, Operation, Maintenance & Parts Manual 038576 Engine, 19HP Deutz Diesel rev. C Safety is our #1 concern! Form #1351 Used with: LT28D19 rev. A1.02 - A6.02 WARNING! Read and understand this manual before using this machine.
  • Page 2 Active Patents assigned to Wood-Mizer, LLC Wood-Mizer, LLC has received patents that protect our inventions which are a result of a dedication to research, innovation, development, and design. Learn more at: woodmizer.com/patents ©2023 Wood-Mizer LLC Printed in the United States of America, all rights reserved. No part of this manual may be reproduced in any form by any...
  • Page 3: Table Of Contents

    Table of Contents Section-Page SECTION 1 OPERATION AND MAINTENANCE Starting The Engine ................1-1 Safety ..................... 1-1 Battery....................1-2 Fuel Filter....................1-2 RPM Adjustments .................. 1-2 SECTION 2 REPLACEMENT PARTS Fuel Tank ....................2-1 Engine Assembly ................... 3-1 Throttle/Clutch Assembly ..............3-3 Table of Contents WM doc 12/7/23...
  • Page 4: Section 1 Operation And Maintenance

    ABOUT THIS MANUAL This manual is provided as a supplement to the equipment manufacturer’s manuals. This manual provides information spe- cific to the use of this equipment on the Wood-Mizer sawmill. Refer to the sawmill operator’s manual and manufacturer's ®...
  • Page 5: Battery

    Maintenance Battery DANGER! Always be aware of and take proper protective measures against rotating shafts, pul- leys, fans, etc. Always stay a safe distance from rotating members and make sure that loose clothing or long hair does not engage rotating members. Never touch or perform service functions on a hot engine.
  • Page 6: Section 2 Replacement Parts

    Replacement Parts Fuel Tank SECTION 2 REPLACEMENT PARTS Fuel Tank 280043-1B PART # DESCRIPTION COMMENTS QTY. 038580 TRAY ASSEMBLY, LT28 DIESEL CAN A12132 Tank Assembly, 5-Gallon Diesel Fuel P12166 Tank, 5-Gallon Diesel Fuel Available in assemblies only. P12172 Pickup, 9" Fuel P09683 Cap, 3 or 5-Gallon Fuel Tank P12175...
  • Page 7 Replacement Parts Fuel Tank PART # DESCRIPTION COMMENTS QTY. 016338 Hose, 5/16” Fuel Line 8 Ft P649 Clamp, 7/32 - 1/2 Hose 049137 Tray Weldment, LT28 Fuel F05005-34 Bolt, 1/4-20 X 1” Carriage F05010-21 Nut, 1/4-20 Swaged P11258 Strap, 24 Rubber W/Hooks F05007-87 Bolt, 3/8-16 x 1”...
  • Page 8: Engine Assembly

    Deflector, 1 1/4” ID Exhaust D19 047742 Sheave, 3V5.6 x 2-SH 038432 Bushing, SH x 1 1/8” S04124 Key, 1/4” x 1 11/16” 049399 Plate, Throttle D19 049406 Cable, LT15/LT28 D19 038584 Fitting, M14x1.5 Male-1/4 NPT Female WM doc 12/7/23 Replacement Parts...
  • Page 9 Replacement Parts Engine Assembly PART # DESCRIPTION COMMENTS QTY. 038571 Fitting, 1/4” NPT Male 90 Deg 3/8” NPT Fem P10082 Hose, 3/8” NPT x 9 5/8” Rubber P04332 Cap, 3/8 Pipe Galvanize 049389 Plate, Engine Mount D19 F05007-127 Bolt, 3/8-16 x 1 1/4” Carriage Gr5 F05011-3 Washer, 3/8”...
  • Page 10: Throttle/Clutch Assembly

    Replacement Parts Throttle/Clutch Assembly Throttle/Clutch Assembly 280059-1C PART # DESCRIPTION COMMENTS QTY. 065574 BLOCK WELDMENT, LINKAGE CLUTCH/BRAKE Replaces 049139 to make clutch pivot stop adjustable (Rev. A6.05). Tab on Clutch/Brake Block Weldment 049139 modified to provide increased brake adjustment and reduce need for clutch turn- buckle adjustment (Rev.
  • Page 11 Replacement Parts Throttle/Clutch Assembly PART # DESCRIPTION COMMENTS QTY. NUT ASSEMBLY, 1/2-13 SPRING LOCKING 038778 Spring Locking Nut Assembly 038778 added Rev. A3.00 to allow engine acceleration prior to blade engagement (replaces F05010-35 1/2-13 Hex Nut and F05011-9 1/2" Split Lock Washer).
