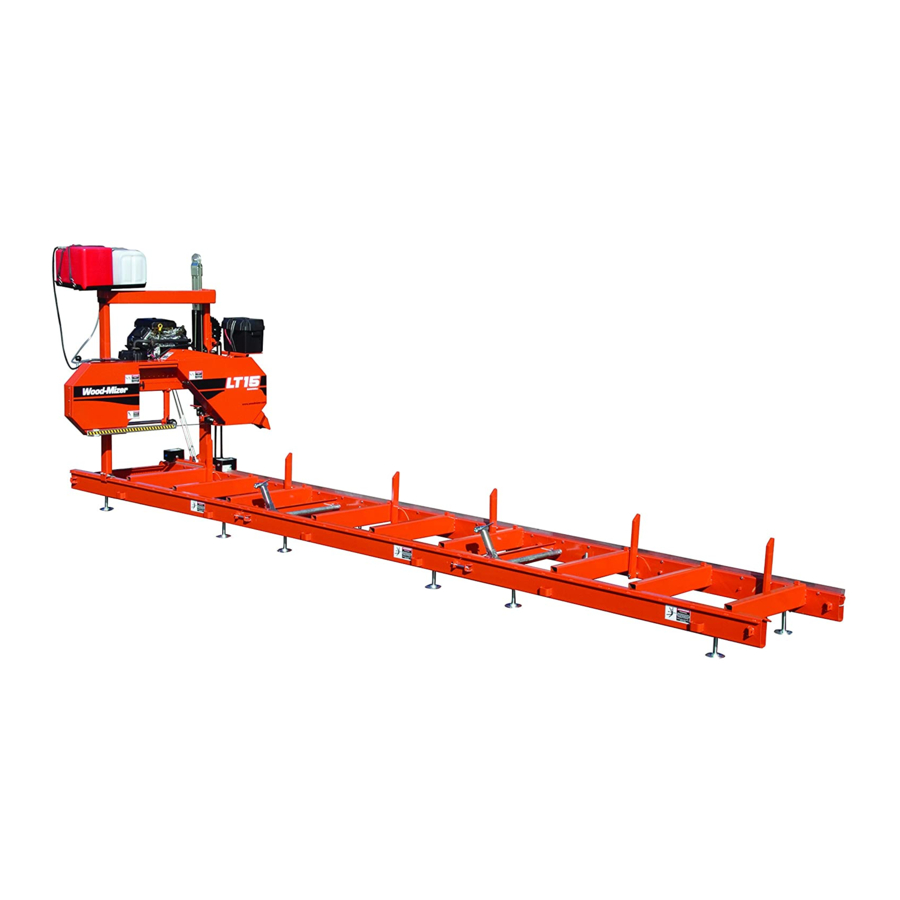

Wood-mizer LT15 Safety, Operation, Maintenance & Parts Manual

Hide thumbs Also See for LT15:
Table of Contents

Advertisement

Quick Links

Download this manual
D17 Engine
Safety, Operation, Maintenance
& Parts Manual
LT15
LT15W
Safety is our #1 concern! Read and understand
all safety information and instructions before oper-
ating, setting up or maintaining this machine.
rev. E8.12
rev. A1.13
Form #1630

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LT15 and is the answer not in the manual?

Questions and answers

Related Manuals for Wood-mizer LT15

Summary of Contents for Wood-mizer LT15

  • Page 1 D17 Engine Safety, Operation, Maintenance & Parts Manual LT15 rev. E8.12 LT15W rev. A1.13 Safety is our #1 concern! Read and understand all safety information and instructions before oper- ating, setting up or maintaining this machine. Form #1630...
  • Page 2 Printed in the United States of America. All rights reserved. No part of this manual may be reproduced in any form by any photographic, electronic, mechanical or other means or used in any information storage and retrieval system without written permission from Wood-Mizer 8180 West 10th Street Indianapolis, Indiana 46214...

  • Page 3: Table Of Contents

    Table of Contents Section-Page SECTION 1 ABOUT THIS MANUAL SECTION 2 OPERATION Starting The Engine................2-1 SECTION 3 MAINTENANCE Safety......................3-1 Air Filter & Pre-Cleaner.................3-1 Fuel Filter ....................3-2 SECTION 4 REPLACEMENT PARTS Fuel Tank....................4-1 Engine Assembly..................5-1 Throttle/Clutch Assembly ..............5-3 INDEX Table of Contents WMdoc080618...

  • Page 4: About This Manual

    SECTION 1 ABOUT THIS MANUAL This manual is provided as a supplement to the equipment manufacturer’s manuals. This manual provides information specific to the use of this equipment on the Wood-Mizer ® sawmill. Refer to the sawmill operator’s manual and manufacturer's manual before attempting to operate this equipment.

  • Page 5: Operation

    Operation Starting The Engine SECTION 2 OPERATION Starting The Engine DANGER! Ensure the blade is disengaged and all persons are out of the path of the blade before starting. Failure to do so will result in death or serious injury. DANGER! Operate your engine only in well ventilated areas.
  • Page 6 Operation Starting The Engine Warm engine: Place throttle control midway between SLOW and FAST positions. Return choke to OFF position as soon as engine starts. A warm engine usually does not require choke on. 4. Slowly pull starter handle until just past compression-STOP! Return starter handle; fi rmly pull straight out to avoid excessive rope wear from starter rope guide.

  • Page 7: Maintenance

    Maintenance Safety SECTION 3 MAINTENANCE Refer to the manufacturer’s manual for maintenance intervals and procedures unless oth- erwise instructed in this manual. Follow the manufacturer’s recommendations for dusty conditions. IMPORTANT! This manual only provides information about additional procedures or procedures to be performed at different time intervals than found in the manufacturer's manuals.

  • Page 8: Fuel Filter

    Maintenance Fuel Filter eye protection, breathing protection, hand protection and foot protec- tion. Service the pre-cleaner every four hours of operation. Service by gently shaking excess sawdust and debris from the foam piece. Clean the air filter (air cleaner element) and pre-cleaner (element wrapper) every eight hours of operation.

  • Page 9: Replacement Parts

    Replacement Parts Fuel Tank SECTION 4 REPLACEMENT PARTS Fuel Tank 150245B DESCRIPTION ( Indicates Parts Available In Assemblies Only) PART # QTY. TANK ASSEMBLY, 5 GALLON DIESEL 074828 Weldment, Fuel Tank Tray 103802 Cover, Fuel Tank 103867 Tank, 5 Gallon Low Pro Diesel 103928 Cap, Fuel Tank Diesel 080185BE 061257...

  • Page 10: Engine Assembly

    Replacement Parts Engine Assembly Engine Assembly 150174-4 DESCRIPTION ( Indicates Parts Available In Assemblies Only) PART # QTY. ENGINE ASSEMBLY, LT15 18HP DIESEL 007333 Engine, 18HP Kohler Diesel Model KDW702 007332  Filter Assembly, Kohler #ED0037004550-S 007401 Filter, Kohler Secondary Air #ED0021751250-S...
  • Page 11 Clamp, 2 1/2” Hose P09895 Elbow, 90° x 2” ID Rubber 007394 Tube, 1 3/4” ID x 2” OD x 4” 007395 Cable, LT15 D18 007392 Guard Weldment, D18 Radiator 007465 Washer, 1/4” SAE Flat F05011-11 Washer, 1/4” Split Lock F05011-14 Bolt, M6 x 1.0 x 16mm Hex Head...

  • Page 12: Throttle/Clutch Assembly

    30 29 DESCRIPTION ( Indicates Parts Available In Assemblies Only) PART # QTY. KNOB, 5/8-11 BALL P04211 HANDLE, LT15 CLUTCH 062313 SCREW, 3/8-16 X 3/8” SOCKET HEAD CUP PT SET F05007-68 ACTUATOR WELDMENT, THROTTLE LT15D&G 034815 LINKAGE, THROTTLE LT15D&G 034818 BOLT, 1/4-20 X 1/2”...
  • Page 13 Replacement Parts Throttle/Clutch Assembly BUSHING, 1” X 1 1/4” X 3/4” FLG BRONZE P737 BRAKE/CLUTCH ASSEMBLY, LT15 065874 Arm Weldment, Clutch/Brake LT15 065873 Bolt, 3/8-16 x 2” Hex Head Gr5 F05007-124 Nut, 3/8-16 Hex Nylon Lock F05010-10 Block, LT15 Brake 016488 Screw, 10-24 x 1”...

  • Page 14: Index

    INDEX maintenance fuel filter parts list engine assembly fuel tank starting 15D19doc080618 Index...
