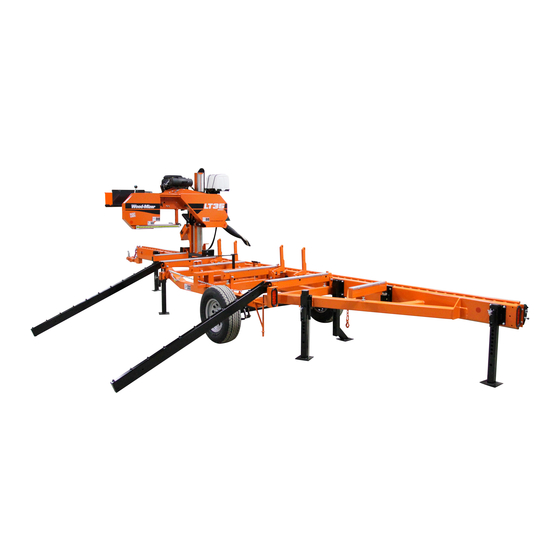

- Page 1 D17 Engine Safety, Operation, Maintenance & Parts Manual LT35 rev. A1.00 - A6.11 LT35HD rev. A1.00 - A6.13 Safety is our #1 concern! Read and understand all safety information and instructions before oper- ating, setting up or maintaining this machine.
- Page 2 Printed in the United States of America, all rights reserved. No part of this manual may be reproduced in any form by any photographic, electronic, mechanical or other means or used in any information storage and retrieval system without written permission from Wood-Mizer 8180 West 10th Street Indianapolis, Indiana 46214...
-
Page 3: Table Of Contents
MAINTENANCE Safety......................3-1 Air Filter & Pre-Cleaner.................3-4 Fuel Filter ....................3-5 Battery ....................3-6 Alternator Belt ..................3-7 SECTION 4 REPLACEMENT PARTS Fuel Tank....................4-1 LT35 Rev. A6.07+ LT35HD Rev. A6.08+ Fuel Tank....................4-2 LT35 Rev. A1.00 - A6.06 LT35HD Rev. A1.00 - A6.07 Engine Assembly..................4-4 Throttle/Clutch Assembly ..............4-6... -
Page 4: About This Manual
This manual is provided as a supplement to the equipment manufacturer’s manuals. This ® manual provides information specific to the use of this equipment on the Wood-Mizer sawmill. Refer to the sawmill operator’s manual and manufacturer's manual before attempting to operate this equipment. -
Page 5: Operation
Operation Starting The Engine SECTION 2 OPERATION Starting The Engine Engine Start DANGER! Always be sure the blade is disengaged and all persons are out of the path of the blade before starting the engine. Failure to do so will result in serious injury. DANGER! Operate your engine/machine only in well venti- lated areas. -
Page 6: Maintenance
Maintenance Safety SECTION 3 MAINTENANCE Refer to the manufacturer’s manual for maintenance intervals and procedures unless oth- erwise instructed in this manual. Follow the manufacturer’s recommendations for dusty conditions. IMPORTANT! This manual only provides information about additional procedures or procedures to be performed at dif- ferent time intervals than found in the manufacturer's manu- als. - Page 7 Maintenance Safety This symbol identifies the interval (hours of operation) at which each maintenance pro- cedure should be performed. "AR" signifies maintenance procedures which should be performed as required. Maintenance doc081619...
- Page 8 Maintenance Safety doc081619 Maintenance...
-
Page 9: Air Filter & Pre-Cleaner
Maintenance Air Filter & Pre-Cleaner Air Filter & Pre-Cleaner WARNING! Always wear proper and necessary safety equipment when performing service functions. Proper safety equipment includes eye protection, breathing protec- tion, hand protection and foot protection. Service the pre-cleaner every four hours of operation. Service by gently shaking excess sawdust and debris from the foam piece. -
Page 10: Fuel Filter
Maintenance Fuel Filter Fuel Filter Replace the fuel filter every 100 hours of operation or as required for engine perfor- mance. doc081619 Maintenance... -
Page 11: Battery
Maintenance Battery Battery Check the battery electrolyte level every 50 hours of operation. See manufacturer’s man- ual for instructions. DANGER! Batteries expel explosive gases. Keep sparks, flames, burning cigarettes, or other ignition sources away at all times. Always wear safety goggles and a face shield when working near batteries. -
Page 12: Alternator Belt
Pivot the alternator away from the motor until the belt has 3/16" (5 mm) deflection with a 5 lb. deflection force. Retighten the adjust- ment bolt. See Figure 3-1. Loosen bolt to pivot alternator clockwise and tighten belt 3H1171-1 FIG. 3-1 LT35 D18/G25 doc081619 Maintenance... -
Page 13: Replacement Parts
Replacement Parts Fuel Tank SECTION 4 REPLACEMENT PARTS Fuel Tank LT35 Rev. A6.07+ LT35HD Rev. A6.08+ 280062B DESCRIPTION ( Indicates Parts Available In Assemblies Only) PART # QTY. TRAY ASSEMBLY, LT28/35 FUEL TANK 074829 Weldment, Fuel Tank Tray 103810 Cover, Fuel Tank... -
Page 14: Fuel Tank
Replacement Parts Fuel Tank Fuel Tank LT35 Rev. A1.00 - A6.06 LT35HD Rev. A1.00 - A6.07 280047-1C DESCRIPTION ( Indicates Parts Available In Assemblies Only) PART # QTY. TRAY ASSEMBLY, LT28 DIESEL CAN 038580 Tank, 5-Gallon Diesel P12166 Pickup, 9" Fuel... - Page 15 Replacement Parts Fuel Tank Fitting, 1/4” NPT Male Quick Disconnect 015583 Tray Weldment, LT28 Fuel 048600 Bolt, 1/4-20 X 1” Carriage F05005-34 Nut, 1/4-20 Swaged F05010-21 Strap, 24 Rubber W/Hooks P11258 Bolt, 3/8-16 x 2 3/4” Hex Head F05007-29 Washer, 3/8” SAE Flat F05011-3 Nut, 3/8-16 Hex Nylon Lock F05010-10...
-
Page 16: Engine Assembly
Replacement Parts Engine Assembly Engine Assembly 150174-1C DESCRIPTION ( Indicates Parts Available In Assemblies Only) PART # QTY. ENGINE ASSEMBLY, 18HP DIESEL 007333 Engine, 18HP Kohler Diesel Model KDW702 007332 Filter Assembly, Kohler #ED0037004550-S 007401 Filter, Kohler Secondary Air #ED0021751250-S 007613 Filter, Kohler Primary Air #ED0021751240-S 007408... - Page 17 Replacement Parts Engine Assembly Switch, Diesel Fuel Shut-Off 014279 Pump, Diesel Fuel 014289 Plug, Diesel Glow 014278 Bracket, Air Filter Mount 062308 Bolt, 5/16-18 x 1 1/4” Hex Head Full Thread F05006-18 Washer, 5/16” SAE Flat F05011-17 Nut, 5/16-18 Self-Locking Hex F05010-20 Clamp, 2 1/2”...
-
Page 18: Throttle/Clutch Assembly
Replacement Parts Throttle/Clutch Assembly Throttle/Clutch Assembly 3H1089-4D DESCRIPTION ( Indicates Parts Available In Assemblies Only) PART # QTY. BLOCK WELDMENT, LINKAGE CLUTCH/BRAKE 065574 PIN, 3/16” X 1 1/4” ROLL F05012-16 BUSHING, 5/8” ID X 7/8” OD X 1 1/4” LONG FL BRONZE 016486 SHAFT, LT28 THROTTLE 049340... - Page 19 Replacement Parts Throttle/Clutch Assembly Nut, 1/2-13 Hex Jam F05010-31 Nut, 1/2-13 Spring Lock 038777 Spring, .72” OD x .576” ID x 1.25L Compression 046975 Nut, 1/2-13 Half Nylon Lock F05010-127 BRAKE/CLUTCH ASSEMBLY 065874 Arm Weldment, Clutch/Brake 065873 Bolt, 3/8-16 x 2 Hex Head Grade 5 F05007-124 Nut, 3/8-16 Hex Nyl Lock F05010-10...
-
Page 20: Index
INDEX maintenance alternator belt battery fuel filter parts list engine assembly fuel tank 4-1, 4-2 starting 35D17doc081619 Index...
