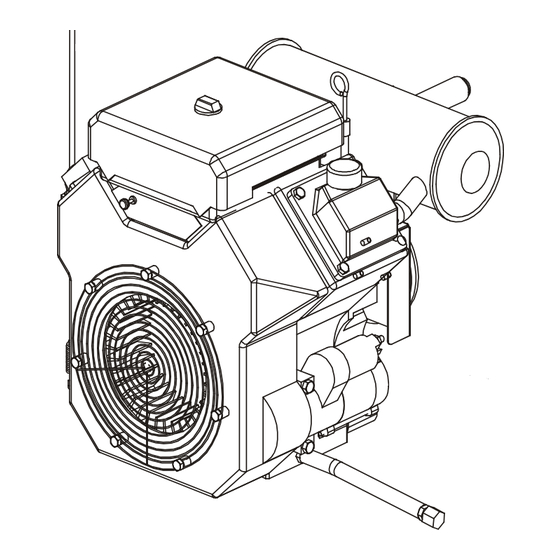

LT28 G19 Engine
Safety, Operation, Maintenance
& Parts Manual
Used with
LT28G19
rev. A1.00 - A6.16
Safety is our #1 concern!
Form #1343

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LT28 G19 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Wood-mizer LT28 G19

  • Page 1 LT28 G19 Engine Safety, Operation, Maintenance & Parts Manual Used with LT28G19 rev. A1.00 - A6.16 Safety is our #1 concern! Form #1343...
  • Page 2 For more information go to www.P65Warnings.ca.gov/wood. Active Patents assigned to Wood-Mizer, LLC Wood-Mizer, LLC has received patents that protect our inventions which are a result of a dedication to research, innovation, development, and design. Learn more at: woodmizer.com/patents ©2022 Wood-Mizer LLC...
  • Page 3: Table Of Contents

    Table of Contents Section-Page SECTION 1 ABOUT THIS MANUAL SECTION 2 OPERATION Starting The Engine................2-1 SECTION 3 MAINTENANCE Maintenance ...................3-1 Safety......................3-1 Cooling System ..................3-1 Air Filter & Pre-Cleaner .................3-1 Fuel Filter ....................3-2 Battery ....................3-2 RPM Adjustments ..................3-2 Miscellaneous Maintenance ..............3-2 SECTION 4 REPLACEMENT PARTS Fuel Tank....................4-1...
  • Page 4: About This Manual

    SECTION 1 ABOUT THIS MANUAL This manual is provided as a supplement to the equipment manufacturer’s manuals. This manual provides information specific to the use of this equipment on the Wood-Mizer ® sawmill. Refer to the sawmill operator’s manual and manufacturer's manual before attempting to operate this equipment.
  • Page 5: Operation

    Operation Starting The Engine SECTION 2 OPERATION Starting The Engine DANGER! Always be sure the blade is disengaged and clear the path of the blade before starting the engine. Failure to do so will result in serious injury or death. Operate your engine/machine only in well ventilated areas.Exhaust gases can cause nausea, delirium and potentially death unless adequate ventilation is present.
  • Page 6: Maintenance

    Maintenance Maintenance SECTION 3 MAINTENANCE Maintenance Refer to the manufacturer’s manual for maintenance intervals and procedures unless otherwise instructed in this manual. Fol- low the manufacturer’s recommendations for dusty conditions. This manual only provides information about additional procedures or NOTICE procedures to be performed at different time intervals than found in the manu- facturer's manuals.
  • Page 7: Fuel Filter

    Maintenance Fuel Filter Fuel Filter Replace the fuel filter every 100 hours of operation or as required for engine performance. Battery Check the battery electrolyte level every 50 hours of operation. See manufacturer’s manual for instructions. DANGER! Batteries expel explosive gases. Keep sparks, flames, burning cigarettes, or other ignition sources away at all times.
  • Page 8: Replacement Parts

    Replacement Parts Fuel Tank SECTION 4 REPLACEMENT PARTS Fuel Tank 280061C PART # DESCRIPTION COMMENTS QTY. 103816 TRAY ASSEMBLY, LT28/35 FUEL TANK 103810 Weldment, Fuel Tank Tray 103867 Cover, Fuel Tank 103878 Tank, 5 Gallon Low Pro EPA Fuel 061250 Grommet, Shut Off 061251 Gas Cap, LT15...
  • Page 9: Fuel Tank Rev. A6.10 - A6.11

    Replacement Parts Fuel Tank Rev. A6.10 - A6.11 Fuel Tank Rev. A6.10 - A6.11 280060 PART # DESCRIPTION COMMENTS QTY. 076479 TRAY ASSEMBLY, LT28 GAS CAN 074643 Tank Assembly, 6 Gallon Gas Service 076478 Tank, Gasoline Available in assemblies only. 015583 Fitting, 1/4”...
  • Page 10: Fuel Tank Rev. A3.00 - A6.09

    Replacement Parts Fuel Tank Rev. A3.00 - A6.09 Fuel Tank Rev. A3.00 - A6.09 280060-2 PART # DESCRIPTION COMMENTS QTY. 076479 TRAY ASSEMBLY, LT28 GAS CAN 074643 Tank Assembly, 6 Gallon Gas Service 5 gallon gas can assemblies are available only for customers with sawmills and edgers manu- factured prior to 2010 (See Sec- tion 4.4).
  • Page 11 Replacement Parts Fuel Tank Rev. A3.00 - A6.09 Fuel Tank Rev. A3.00 - A6.09 280048B PART # DESCRIPTION COMMENTS QTY. 049138 TRAY ASSEMBLY, LT28 GAS CAN A12285 Tank Assembly, 5-gallon Red Gasoline Customers with sawmills and edgers manufactured in 2010 and later need to use new EPA approved 3 or 6 gallon gas can assemblies (See Section 4.2).
  • Page 12 Replacement Parts Fuel Tank Rev. A3.00 - A6.09 PART # DESCRIPTION COMMENTS QTY. F05010-10 Nut, 3/8-16 Hex Nylon Lock WM doc 11/21/22 Replacement Parts...
  • Page 13: Fuel Tank Rev. A1.00 - A2.01

    Replacement Parts Fuel Tank Rev. A1.00 - A2.01 Fuel Tank Rev. A1.00 - A2.01 280034 PART # DESCRIPTION COMMENTS QTY. 049138 TRAY ASSEMBLY, LT28 GAS CAN A12285 Tank Assembly, 5-gallon Red Gasoline P12167 Tank, 5-Gallon Red Fuel Available in assemblies only. P12172 Pickup, 9"...
  • Page 14 Replacement Parts Fuel Tank Rev. A1.00 - A2.01 PART # DESCRIPTION COMMENTS QTY. F05011-3 Washer, 3/8” SAE Flat WM doc 11/21/22 Replacement Parts...
  • Page 15: Engine Assembly

    Replacement Parts Engine Assembly Engine Assembly 280035 PART # DESCRIPTION COMMENTS QTY. P12393 COVER, ENGINE 049055 ENGINE ASSEMBLY, LT28 GAS 19HP 016899 Engine, 19HP Kohler #PA62590 Available in assemblies only. 006907 Filter, Kohler Air #47-083-03 006931 Pre Cleaner, Kohler #24-083-02 P12757 Plug, RC12YC Kohler Spark #12-132-02 014717...
  • Page 16 Replacement Parts Engine Assembly PART # DESCRIPTION COMMENTS QTY. BOLT, 3/8-16 X 1 3/4” HEX HEAD GRADE 5 F05007-119 F05011-3 WASHER, 3/8” SAE FLAT F05010-10 NUT, 3/8-16 HEX NYLON LOCK 048237 SUPPORT WELDMENT, DRIVE BELT F05007-118 BOLT, 3/8-16 X 3/4” HEX HEAD GRADE 5 F05010-19 NUT, 3/8-16 SELF-LOCKING HEX BELT, 2/3VFL900 DRIVE...
  • Page 17: Throttle/Clutch Assembly

    Replacement Parts Throttle/Clutch Assembly Throttle/Clutch Assembly 280059-1C PART # DESCRIPTION COMMENTS QTY. 065574 BLOCK WELDMENT, LINKAGE CLUTCH/BRAKE PIN, 3/16” X 1 1/4” ROLL F05012-16 016486 BUSHING, 5/8” ID X 7/8” OD X 1 1/4” LONG FL BRONZE 049340 SHAFT, LT28 THROTTLE 034815 ACTUATOR WELDMENT, THROTTLE LT15D&G F05007-68...
  • Page 18 Replacement Parts Throttle/Clutch Assembly PART # DESCRIPTION COMMENTS QTY. F05010-127 Nut, 1/2-13 Half Nylon Lock 065874 BRAKE/CLUTCH ASSEMBLY 065873 Arm Weldment, Clutch/Brake F05007-124 Bolt, 3/8-16 x 2 Hex Head Grade 5 F05010-10 Nut, 3/8-16 Hex Nyl Lock F05011-3 Washer, 3/8” Flat SAE F05010-25 Nut, 3/8-16 Swaged 034810...
