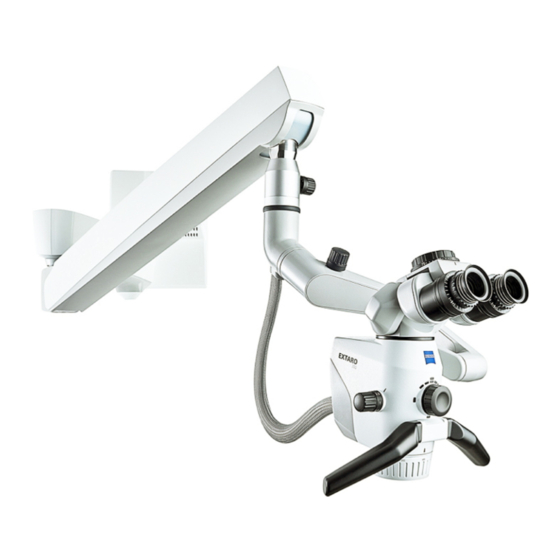

Zeiss EXTARO 300 Service Manual

Hide thumbs Also See for EXTARO 300:
Table of Contents

Advertisement

Quick Links

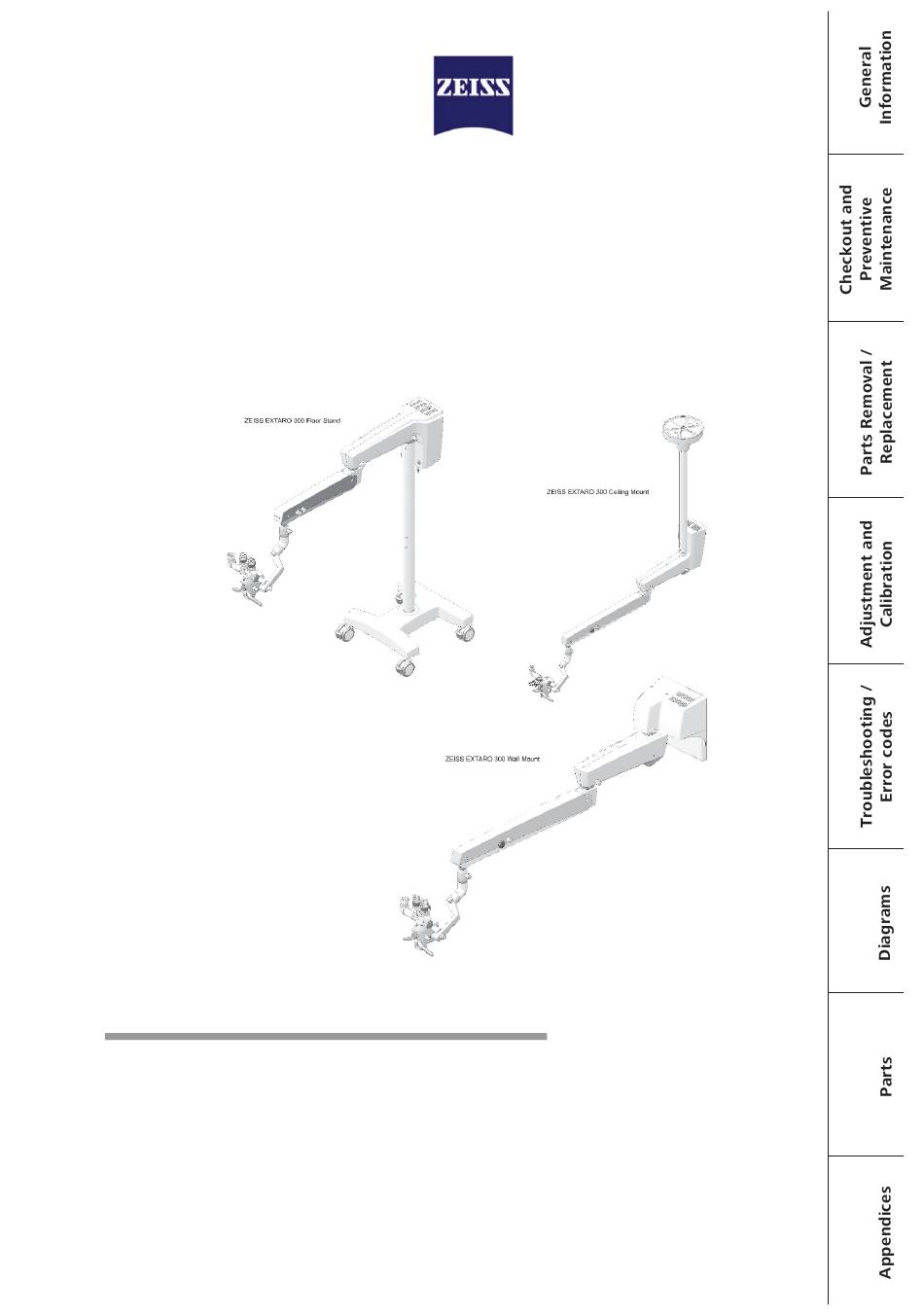

ZEISS EXTARO 300
Service Manual
Confidential and Proprietary
SM-30-0053
Version 01, 2017-03-10
Order No. 2215-710

Advertisement

Table of Contents
loading

Related Manuals for Zeiss EXTARO 300

Summary of Contents for Zeiss EXTARO 300

  • Page 1 ZEISS EXTARO 300 Service Manual Confidential and Proprietary SM-30-0053 Version 01, 2017-03-10 Order No. 2215-710...
  • Page 2 ZEISS EXTARO 300 COPYRIGHT NOTE The information contained in this document is subject to the copyright of Carl Zeiss Meditec AG and must not be reproduced either in whole or in part without prior written consent by Carl Zeiss Meditec AG. The content of this document is intended to provide the user with detailed information required for the repair and maintenance of the delivered system and for spare part orders.
  • Page 3 ZEISS EXTARO 300 REVISION CONTROL LIST Document: Service Manual „ZEISS EXTARO 300” Document No.: SM-30-0053 Order No.: 2215-710 Date of issue: 2017-03-10 Section Version Date of issue 1 – General Information 2017-03-10 2 – Checkout and Preventive Maintenance 2017-03-10 3 – Parts Removal / Replacement 2017-03-10 4 –...
  • Page 4 ZEISS EXTARO 300 Service Manual SM-30-0053 Confidential and Proprietary Order No. 2215-710 Version 01, 2017-03-10...

  • Page 5: Table Of Contents

    ZEISS EXTARO 300 Contents Section 1 – General Information Section 2 – Checkout and Preventive Maintenance Section 3 – Parts Removal / Replacement Section 4 – Adjustment and Calibration Section 5 – Troubleshooting / Error codes Section 6 – Diagrams Section 7 –...
  • Page 6 Section 1 – General Information 1.1 Update information ..................... 2 1.2 About This Manual....................3 1.2.1 General Notes ........................3 1.2.2 Conventions ........................4 1.3 Service bulletins ....................4 1.4 Service Strategy ....................5 SM-30-0053 Service Manual Confidential and Proprietary Version 01, 2017-03-10 1 - 1 Order No.

  • Page 7: Section 1 - General Information

    General Information ZEISS EXTARO 300 1.1 Update information Version Comments 2017-03-10: First Issue Notes Service Manual SM-30-0053 Confidential and Proprietary Order No. 2215-710 1 - 2 Version 01, 2017-03-10...

  • Page 8: About This Manual

    1.2.1 General Notes This manual is the field service reference for troubleshooting, repair, adjustment, and calibration of the ZEISS EXTARO 300. The manual is intended for use by field service engineers who have completed specific service training on the ZEISS EXTARO 300.

  • Page 9: Conventions

    Service bulletins are confidential and proprietary documents for the sole use of personnel employed by ZEISS. As a ZEISS employee, subsidiary or distributor you are required to handle your service bulletins as appropriate for proprietary and confidential information. Service Manual...

  • Page 10: Service Strategy

    General Information 1.4 Service Strategy The service strategy for the ZEISS EXTARO 300 stipulates that only a limited scope of work may be performed in field service. This scope is appropriately marked in this service manual and is dealt with in detail during the service training for this product.

  • Page 11: Section 2 - Checkout And Preventive Maintenance

    Section 2 – Checkout and Preventive Maintenance ZEISS EXTARO 300 on Floor Stand Installation Instruction ......SM-30-0053-A01 ZEISS EXTARO 300 on Ceiling Mount Installation Instruction ....... SM-30-0053-A02 ZEISS EXTARO 300 on Wall Mount Installation Instruction ......SM-30-0053-A03 SM-30-0053 Service Manual...
  • Page 12 Checkout and Preventive Maintenance ZEISS EXTARO 300 Notes Service Manual SM-30-0053 Confidential and Proprietary Order No. 2215-710 2 - 2 Version 01, 2017-03-10...

  • Page 13: Section 3 - Parts Removal / Replacement

    Lubricants and thread locker ..................3 3.2.3 Screw torque specification ..................... 3 3.2.4 Documents required ...................... 3 3.3 ZEISS EXTARO 300 ....................4 3.3.1 Removing OPMI from Yoke ................... 4 3.3.2 Removing the rear OPMI cover with cable cover ............5 3.3.3...

  • Page 14: Update Information

    Parts Removal / Replacement ZEISS EXTARO 300 Update information Version Comments 2017-03-10: First Issue Notes Service Manual SM-30-0053 Confidential and Proprietary Order No. 2215-710 3 - 2 Version 01, 2017-03-10...

  • Page 15: General Information

    3.2.3 Screw torque specification Recommended screw torque specification tolerance ± 5 % Size Kgf*cm M2.5 13.9 31.2 3.2.4 Documents required Service Manual for ZEISS EXTARO 300 SM-30-0053 Technical Safety Check SM-30-8005-115 SM-30-0053 Service Manual Confidential and Proprietary Version 01, 2017-03-10 3 - 3 Order No.
  • Page 16 Parts Removal / Replacement ZEISS EXTARO 300 ZEISS EXTARO 300 3.3.1 Removing OPMI from Yoke 1) Unscrew the cover (1) and remove it. Fig. 1: Removing the cover 2) Remove the screw (2) M6x20 ISO 14579 -A2-70 with T30 Torx screw driver.

  • Page 17: Zeiss Extaro 300

    ZEISS EXTARO 300 Parts Removal / Replacement 3.3.2 Removing the rear OPMI cover with cable cover 1) Remove the two screws (1) M3x8 ISO 14579 -A2-70. 2) Remove the screw (2) M3x12 ISO 10642 -A2-70 with the manual filter driver.

  • Page 18: Removing The Illumination Module

    Parts Removal / Replacement ZEISS EXTARO 300 3.3.3 Removing the illumination module Remove the rear OPMI cover with cable cover (see Section 3.3.2). 1) Unplug the light guide from the socket (1). Fig. 5: Unplugging the light guide 2) Remove the four screws (2) M3x10 ISO 14580 –A2-70 from the bottom.
  • Page 19 ZEISS EXTARO 300 Parts Removal / Replacement 3) Take out the varioscope together with the illumination module. Fig. 7: Varioscope with illumination module 4) Undo the two screws (3) M2.5x6 ISO 14579 - A2-70 and remove the cable bracket. Fig. 8: Removing the cable bracket...
  • Page 20 Parts Removal / Replacement ZEISS EXTARO 300 5) Remove the four screws (4) M3x8 (the other two screws are at the other side). Fig. 9: Removing the four screws 6) Take out the illumination module. Fig. 10: Illumination module Service Manual...

  • Page 21: Removing The Varioscope

    ZEISS EXTARO 300 Parts Removal / Replacement 3.3.4 Removing the varioscope Remove the rear OPMI cover with cable cover (see Section 3.3.2). 1) Unplug the light guide from the socket (1). Fig. 11: Unplugging the light guide 2) Remove the four screws from the bottom (2) M3x10 ISO 14580 -A2-70.
  • Page 22 Parts Removal / Replacement ZEISS EXTARO 300 3) Remove the four screws (3) M2.5x8 ISO 14579 -A2-70. Fig. 13: Illumination module 4) Take out of the varioscope. Fig. 14: Varioscope Service Manual SM-30-0053 Confidential and Proprietary Order No. 2215-710 3 - 10...

  • Page 23: Removing The Opmi Pcba

    ZEISS EXTARO 300 Parts Removal / Replacement 3.3.5 Removing the OPMI PCBA Remove the rear OPMI cover with cable cover (see Section 3.3.2). 1) Unplug the cables from OPMI PCB. 2) Remove five screws (1) M2.5x6 ISO 14579 -A2-70. Fig. 15: Removing screws 3) Take the OPMI PCB out of the housing.

  • Page 24: Removing The Filter Wheel Module (Option)

    Parts Removal / Replacement ZEISS EXTARO 300 3.3.6 Removing the filter wheel module (option) Remove the rear OPMI cover with cable cover (see Section 3.3.2). Remove the varioscope together with illumination (see Section 3.3.4). Remove the OPMI PCBA (see Section 3.3.5).

  • Page 25: Changing The Filter Wheel Motor

    ZEISS EXTARO 300 Parts Removal / Replacement 3.3.7 Changing the filter wheel motor Remove the filter wheel module (see Section 3.3.6). 1) Remove the two set screws (1) M2.5x4 ISO 4029 -A2-21H and gear. Fig. 19: Removing set screws and gear 2) Remove the two screws (2) M2x5 ISO 14580 -A2-70.

  • Page 26: Changing The Magnification Changer

    Parts Removal / Replacement ZEISS EXTARO 300 3.3.8 Changing the magnification changer Remove the rear OPMI cover with cable cover (see Section 3.3.2). Remove the varioscope together with illumination module (see Section 3.3.4). Remove the OPMI PCBA (see Section 3.3.5).
  • Page 27 ZEISS EXTARO 300 Parts Removal / Replacement 5) Mark the position of the magnification changer (right/left) in the housing. 6) Remove the magnification changer. Note When installing the same magnification changer note the marked installation position of the catch springs.

  • Page 28: Changing The Multiple Function Knob

    Parts Removal / Replacement ZEISS EXTARO 300 3.3.9 Changing the multiple function knob Remove the rear OPMI cover with cable cover (see Section 3.3.2). 1) Remove the set screw (1) M2.5x8. 2) Remove the knob cover. Fig. 25: Removing set screw and knob cover 3) Remove the two screws (2).
  • Page 29 ZEISS EXTARO 300 Parts Removal / Replacement 4) Undo two screws (3) M1.6x2.5 DIN 912 and remove the dovetail cover. Fig. 27: Removing dovetail cover 5) Take the multiple function knob cable (4) out of the cable guide (5) and unplug it from the OPMI PCB.
  • Page 30 Parts Removal / Replacement ZEISS EXTARO 300 6) Take the multiple function knob out of the OPMI. Fig. 29: Multiple function knob 7) Note the cable routing (6) for later reinstallation. Fig. 30: Cable routing Service Manual SM-30-0053 Confidential and Proprietary Order No.

  • Page 31: Changing The Led Indicator Pcb

    ZEISS EXTARO 300 Parts Removal / Replacement 3.3.10 Changing the LED Indicator PCB Remove the multiple function knob (see Section 3.3.9). Remove the rear OPMI cover with cable cover (see Section 3.3.2). Remove the Varioscope together with illumination module (see Section 3.3.4).
  • Page 32 Parts Removal / Replacement ZEISS EXTARO 300 3) Take the LED Indication PCB out of the OPMI body. Note Take care of the LED when reinstalling it. Fig. 33: LED Indication PCB Service Manual SM-30-0053 Confidential and Proprietary Order No. 2215-710...

  • Page 33: Floor Stand

    ZEISS EXTARO 300 Parts Removal / Replacement Floor Stand 3.4.1 Changing upper covers of the suspension arm 1) Remove the two knobs (1). 2) Remove the four screws (2). The other two screws are on the other side. 3) Remove the Philips screw (3) at the front.

  • Page 34: Changing Carrier Arm Cover

    Parts Removal / Replacement ZEISS EXTARO 300 5) Remove the connector (3). 6) Remove the lower cover. Fig. 36: Removing the cap 3.4.3 Changing carrier arm cover 1) Remove the two knobs from the carrier arm. 2) Remove three screws (1).

  • Page 35: Changing The Gas Spring

    ZEISS EXTARO 300 Parts Removal / Replacement 3.4.4 Changing the gas spring 1) Remove rear cover from suspension arm (1). Fig. 38: Removing rear cover 2) Remove the upper cover from the suspension arm (Section 3.4.1). 3) Release the spring force by screwing (2, HEX 8) clockwise (max.
  • Page 36 Parts Removal / Replacement ZEISS EXTARO 300 4) Loosen the three set screws (3) M3x8 ISO 4026 -A2-21H (HEX 1.5). Note The arm must be in the upper position. Use a ladder. Fig. 40: Loosening set screws 5) Remove c-clip (4) 5 DIN 6799 -A2 and then remove the three bolts (5).
  • Page 37 ZEISS EXTARO 300 Parts Removal / Replacement 7) Remove the balance screw (7) M10x75. Fig. 43: Removing balance screw 8) Remove the gas spring. Fig. 44: Removing gas spring SM-30-0053 Service Manual Confidential and Proprietary Version 01, 2017-03-10 3 - 25...

  • Page 38: Changing The Limit Switch

    Parts Removal / Replacement ZEISS EXTARO 300 3.4.5 Changing the limit switch 1) Remove the upper cover (Section 3.4.1). 2) Undo the two screws (1) M3x16 DIN 84 -5.8. 3) Remove the cover from the carrier arm (Section 3.4.3). Fig. 45: Limit switch 4) Unlock the cable fixing (2).

  • Page 39: Changing The Suspension Arm

    ZEISS EXTARO 300 Parts Removal / Replacement 3.4.6 Changing the suspension arm 1) Remove the OPMI with Yoke from suspension arm. 2) Remove the cover from the carrier arm (Section 3.4.3). 3) Unlock the cable fixing (1). 4) Remove the cables PE, limit switch and Power/CAN cable (2) from central control PCB.

  • Page 40: Changing The Carrier Arm

    Parts Removal / Replacement ZEISS EXTARO 300 3.4.7 Changing the carrier arm 7) Remove the cover from the carrier arm (Section 3.4.3). 8) Remove the suspension arm (Section 3.4.6). 9) Remove the two c-clips and washer (1). Fig. 50: Removing c-clips and washer 10) Lift up the carrier arm.
  • Page 41 Section 4 – Adjustment and Calibration 4.1 Update information ..................... 2 4.2 Adjustment ......................3 4.2.1 Adjustment pattern ......................3 4.2.2 Adjust the magnification changer ..................4 4.3 Adjust the limit switch ..................6 SM-30-0053 Service Manual Confidential and Proprietary Version 01, 2017-03-10 4 - 1 Order No.

  • Page 42: Section 4 - Adjustment And Calibration

    Adjustment and Calibration ZEISS EXTARO 300 4.1 Update information Version Comments 2017-03-10: First Issue Notes Service Manual SM-30-0053 Confidential and Proprietary Order No. 2215-710 4 - 2 Version 01, 2017-03-10...

  • Page 43: Adjustment

    ZEISS EXTARO 300 Adjustment and Calibration 4.2 Adjustment 4.2.1 Adjustment pattern 1) Tube: f = 170 mm 2) Eyepieces: 12.5x (copy as required) SM-30-0053 Service Manual Confidential and Proprietary Version 01, 2017-03-10 4 - 3 Order No. 2215-710...

  • Page 44: Adjust The Magnification Changer

    Adjustment and Calibration ZEISS EXTARO 300 4.2.2 Adjust the magnification changer 1) Set the magnification changer to position 1 (free passage). 2) Focus the system on an object (e.g. cross lines on graph paper). 3) Center the object in the field of view.
  • Page 45 ZEISS EXTARO 300 Adjustment and Calibration 6) Remove the two screws (2) M4x12 ISO 14579 -A2-70 with T20 Torx Screw driver. Fig. 2: Remove screws 7) Loosen screw (3) M2.5x4 ISO 14579 -A2-70 with T9 Torx screw driver and rotate the magnification changer slightly.

  • Page 46: Adjust The Limit Switch

    Adjustment and Calibration ZEISS EXTARO 300 4.2.3 Adjust the limit switch 1) Remove suspension arm upper cover (Section 1) Loosen screws (1) and adjust the limit switch. It should be activated 30-40 mm before the topmost position. Tighten screws (1).

  • Page 47: Section 5 - Troubleshooting / Error Codes

    Section 5 – Troubleshooting / Error Codes Information is not yet available but will be provided with the next version of the Service Manual. SM-30-0053 Service Manual Confidential and Proprietary Version 01, 2017-03-10 5 - 1 Order No. 2215-710...

  • Page 48: Section 6 - Diagrams

    Section 6 – Diagrams Update information ..................... 2 6.1.1 General information ..................... 2 Electrical schematic (overview) ..................3 SM-30-0053 Service Manual Confidential and Proprietary Version 01, 2017-03-10 6 - 1 Order No. 2215-710...
  • Page 49 Diagrams ZEISS EXTARO 300 Update information Version Comments 2017-03-10: First issue 6.1.1 General information All Electrical Interconnections and PCB Boards can be find in Spare Parts Section. Notes Service Manual SM-30-0053 Confidential and Proprietary Order No.2215-710 6 - 2 Version 01, 2017-03-10...

  • Page 51: Section 7 - Parts

    Section 7 – Spare Parts Spare Parts, see icon: on selection bar SM-30-0053 Service Manual Confidential and Proprietary Version 01, 2017-03-10 7 - 1 Order No. 2215-710...

  • Page 52: Section 8 - Appendices

    Section 8 – Appendices Service Bulletins SM-30-0053 Service Manual Confidential and Proprietary Version 01, 2017-03-10 8 - 1 Order No. 2215-710...

  • Page 53: Confidential And Proprietary

    ZEISS EXTARO 300 on Floor Stand Installation Instruction Service Instructions Confidential and Proprietary SM-30-0053-A01 Version 01, 2017-03-10 Order No. -...
  • Page 54 ZEISS EXTARO 300 on Floor Stand Service Instructions SM-30-0053-A01 Confidential and Proprietary Order No. - 2 / 37 Version 01, 2017-03-10...
  • Page 55 ZEISS EXTARO 300 on Floor Stand Contents Contents ........................3 Update information....................4 General information ....................5 3.1 Tools and auxiliaries ....................5 3.1.1 Tool required ....................... 5 3.1.2 Documents required ..................... 5 Installation ....................... 6 4.1 Unpacking the instrument..................6 4.2 Mounting the stand column ..................

  • Page 56: Update Information

    ZEISS EXTARO 300 on Floor Stand Update information Version Comments 2017-03-10: First issue Service Instructions SM-30-0053-A01 Confidential and Proprietary Order No. - 4 / 37 Version 01, 2017-03-10...

  • Page 57: General Information

    ZEISS EXTARO 300 on Floor Stand General information The relevant ESD protection measures have to be observed when working on electrical components. Fasten cable ties and additional components after dismantling. Tools and auxiliaries 3.1.1 Tool required Standard tool kit ESD service kit...

  • Page 58: Installation

    ZEISS EXTARO 300 on Floor Stand Installation Unpacking the instrument 1) Open the package. 2) Remove suspension arm, carrier arm, OPMI and base cover. Fig. 1: Unpacking the instrument 3) Remove the packaging sleeve. 4) Remove the column. 5) Unscrew stand base from the packaging floor.

  • Page 59: Mounting The Stand Column

    ZEISS EXTARO 300 on Floor Stand Mounting the stand column 4.2.1 Mounting the stand column (with short suspension arm) 1) Move the base from middle to the side of the wood plate. Fig. 3: Move the base to the side 2) Turn the base up.
  • Page 60 ZEISS EXTARO 300 on Floor Stand 4) Bring the base with the column into an upright position. 5) Remove the four screws (1) and remove the wood plate. Fig. 6: Remove the wooden plate 6) Remove the tab from Velcro Tape, pre-attached to the base cover and paste the tab to the base.

  • Page 61: Mounting The Stand Column (With Long Suspension Arm)

    ZEISS EXTARO 300 on Floor Stand 4.2.2 Mounting the stand column (with long suspension arm) 1) Move the base from middle to the side of the wood plate. Fig. 8: Move the base to the side 2) Turn the base up.
  • Page 62 ZEISS EXTARO 300 on Floor Stand 4) Install the 10 kg additional weight to the base from the bottom by fixing the two screws (1). Fig. 11: Mounting 10 kg additional weight 5) Install the second piece of 10 kg additional weight to the base from the bottom by fixing the two screws (2).
  • Page 63 ZEISS EXTARO 300 on Floor Stand 6) Bring the base with the column into an upright position. 7) Remove the four screws (3) and remove the wood plate. Fig. 13: Remove the wooden plate 8) Remove the tab from Velcro Tape, pre-attached to the base cover and paste the tab to the base.

  • Page 64: Preparing And Mounting The Carrier Arm

    ZEISS EXTARO 300 on Floor Stand Preparing and mounting the carrier arm 1) Place the washer (1) DIA36/52 (2195-054) on the column and insert the mounting shaft into column. Fig. 15: Mounting shaft to the column 2) Secure it with two set screws (2) M6x10 ISO 4027 (2171-980) into indentations of shaft.
  • Page 65 ZEISS EXTARO 300 on Floor Stand 4) Place one thrust washer (4) onto the mounting shaft. Fig. 18: Install the washer 5) Remove the cover of carrier arm and mount the carrier arm onto the mounting shaft of the stand.

  • Page 66: Preparing And Mounting The Suspension Arm

    ZEISS EXTARO 300 on Floor Stand Preparing and mounting the suspension arm 1) Attach the suspension arm to the carrier arm. Insert the 8mm Allan wrench into the hole (1). Fig. 21: Mounting suspension arm to carrier arm 2) Secure the suspension arm with one thrust washer (2) and two retaining rings (3 and 4).
  • Page 67 ZEISS EXTARO 300 on Floor Stand 4) Connect the power cables to control board in the carrier arm and mount the cables to the bracket (7). 5) Connect the PE cable (8) to the power supply. Note The shielding must be connected to sheet metal.

  • Page 68: Installation Of The Handle (Optional)

    Installation of the handle (optional) The handle is optional for customer, the handle package includes below items (the handle is shipped in two packages): This parts are not for EXTARO 300, please do not install them Fig. 27: Parts for other devices Fig.
  • Page 69 ZEISS EXTARO 300 on Floor Stand 2) Mount the grip (2) to the column and fix it with screws. Fig. 29: Install the grip 3) Install the cable mount (3) and fix it with screw. Fig. 30: Install the cable mount 4) Install the cap (4).

  • Page 70: Installation Of The Violet Module (Optional)

    ZEISS EXTARO 300 on Floor Stand Installation of the violet module (optional) Ignore this step if customer does not order the violet modules. Reset the dip switch after install the violet module. 1) Disconnect the two cables (1). 2) Remove the five screws (2).
  • Page 71 ZEISS EXTARO 300 on Floor Stand 6) Take the back cover (5) out. Fig. 34: RGB LED light source cover 7) Remove the metal cover by undo the two screws (6). Fig. 35: Remove the metal cover SM-30-0053-A01 Service Instructions...
  • Page 72 ZEISS EXTARO 300 on Floor Stand 8) Mount the Violet module onto the RGB LED light source. Fig. 36: Mount the Violet module 9) Connect the cable (7) to RGB LED light source. 10) Paste the warning label (8) to the cover.

  • Page 73: Installation Of The Opmi

    ZEISS EXTARO 300 on Floor Stand Installation of the OPMI 1) Unscrew the screw (1) from the yoke. 2) Remove the yoke cover (2). Fig. 39: Remove yoke cover 3) Attach the yoke with OPMI to the suspension arm. Pull through the cable from the yoke.
  • Page 74 ZEISS EXTARO 300 on Floor Stand 7) Connect the power cable (6) to the PCB and secure the PE cable (7) to the yoke. Fig. 41: Plug in the power cable 8) Undo the three screws and remove the rear OPMI cover with cable cover (8).

  • Page 75: Installation Of The Optical Fiber

    ZEISS EXTARO 300 on Floor Stand Installation of the Optical Fiber 1) Remove the two knobs (1). 2) Remove the four screws (2). The other two screw are at the other side. 3) Remove the Philips screw (3) on the front.
  • Page 76 ZEISS EXTARO 300 on Floor Stand 6) Plug in the fiber to light source socket. Fig. 45: Plug fiber into socket 7) Routing the cable in the way of the figure shows. Fix the cable with cable tie in the suspension arm.
  • Page 77 ZEISS EXTARO 300 on Floor Stand 8) Fix the fiber and cable in the yoke. Fig. 47: Fix the fiber 9) Fix the cable and fiber with the bracket. Fig. 48: Fix the cables SM-30-0053-A01 Service Instructions Confidential and Proprietary...
  • Page 78 ZEISS EXTARO 300 on Floor Stand 10) Install back the rear OPMI cover with cable cover. Fig. 49: Mount the rear OPMI cover 11) Install the yoke cover. Fig. 50: Mount the yoke cover Service Instructions SM-30-0053-A01 Confidential and Proprietary Order No.

  • Page 79: Installation Of Integrated Video (Optional)

    ZEISS EXTARO 300 on Floor Stand Installation of Integrated Video (optional) Ignore this step if customer does not order the Integrated Video. 1) Remove the small cover at the bottom of the carrier arm and install the IR receiver with cable (1).
  • Page 80 ZEISS EXTARO 300 on Floor Stand 6) Connect the IR receiver cable (6) to the CCU. Fig. 55: Connect IR receiver cable 7) Mount the CCU bracket B and fix it with two screws (7). Note The CCU power cable and CAN cable should be below the bracket B.
  • Page 81 ZEISS EXTARO 300 on Floor Stand 9) Connect the USB cable and HDMI cable from CCU to the Video interface PCB. Fig. 58: Connect cable 10) Fix the cables using three cable ties. Fig. 59: Fix the cable SM-30-0053-A01 Service Instructions...
  • Page 82 ZEISS EXTARO 300 on Floor Stand 11) Remove five screws (9). Fig. 60: Remove screws 12) Pull the OPMI PCB downwards, and mount the camera head into OPMI body. Attach the camera head to the left of the OPMI body as much as possible.
  • Page 83 ZEISS EXTARO 300 on Floor Stand 14) Routing the video cable from OPMI to suspension arm, carrier arm and then connect with CCU. 15) Connect the video cable to the camera head and then install the OPMI PCB back. Fig. 62: Connect the video cable 16) Fix the cables with bracket.
  • Page 84 ZEISS EXTARO 300 on Floor Stand 17) Fix the cables with cable tie in the yoke. Fig. 64: Fix cables 18) Routing the camera cable. Fig. 65: Cable routing Service Instructions SM-30-0053-A01 Confidential and Proprietary Order No. - 32 / 37...
  • Page 85 ZEISS EXTARO 300 on Floor Stand 19) Mount the rear OPMI cover with cable cover. Fig. 66: Install rear OPMI cover 20) Mount the yoke cover. Fig. 67: Install yoke cover SM-30-0053-A01 Service Instructions Confidential and Proprietary Version 01, 2017-03-10 33 / 37 Order No.

  • Page 86: Installation Of Wifi Module (Optional)

    ZEISS EXTARO 300 on Floor Stand 4.10 Installation of WIFI Module (optional) Ignore this step if customer does not order the WIFI Module. The module is shipped in one box, it includes below items: WIFI router Power cable LAN cable...
  • Page 87 ZEISS EXTARO 300 on Floor Stand 4) Mount the Interface PCB to backpack. Fig. 71: Mount interface PCB 5) Connect the power cable from Quick connect PCB to WIFI router. Fig. 72: Connect power cable 6) Connect the Ethernet cable (2205-232) from CCU to LAN-1.
  • Page 88 ZEISS EXTARO 300 on Floor Stand 8) Fix the power cable and the Ethernet cable with cable ties. Fig. 74: Fix the cable Service Instructions SM-30-0053-A01 Confidential and Proprietary Order No. - 36 / 37 Version 01, 2017-03-10...

  • Page 89: Final Assemble

    ZEISS EXTARO 300 on Floor Stand 4.11 Final Assemble 1) Mount the arm cover and secure it with three screws (1). The 3 one is at the bottom of the cover. 2) Let the opposite cover of the carrier arm open to have access to the central control PCBA later.
  • Page 90 ZEISS EXTARO 300 on Wall Mount Mounting Instruction Service Instructions Confidential and Proprietary SM-30-0053-A03 Version 01, 2017-03-10 Order No. -...
  • Page 91 ZEISS EXTARO 300 on Wall Mount Service Instructions SM-30-0053-A03 Confidential and Proprietary Order No. - 2 / 42 Version 01, 2017-03-10...
  • Page 92 ZEISS EXTARO 300 on Wall Mount Contents Contents ........................3 Update information....................4 General information ....................5 3.1 Tools and auxiliaries ....................5 3.1.1 Tools required ......................5 3.1.2 Documents required ..................... 5 Installation ....................... 6 4.1 Unpacking the instrument..................6 4.2 Install the wall Adaptor .....................

  • Page 93: Update Information

    ZEISS EXTARO 300 on Wall Mount Update information Version Comments 2017-03-10: First issue Service Instructions SM-30-0053-A03 Confidential and Proprietary Order No. - 4 / 42 Version 01, 2017-03-10...

  • Page 94: General Information

    The relevant ESD protection measures have to be observed when working on electrical components. Fasten cable ties and additional components after dismantling. The ZEISS EXTARO 300 wall mount must only be mounted by authorized service staff. If needed, the wall adaptor (pre-installation set) must have been mounted by a construction specialist prior to installation.

  • Page 95: Installation

    ZEISS EXTARO 300 on Wall Mount Installation Unpacking the instrument 1) Open the package. 2) Take the arms, OPMI and the other parts out of the box. Fig. 1: Unpacking the instrument (example) Install the wall Adaptor Note It is the customer's responsibility to ensure that the wall at the site of installation is prepared in accordance with the instructions and specifications given in the planning manual M-30-1999.

  • Page 96: Preparing And Mounting The Carrier Arm

    ZEISS EXTARO 300 on Wall Mount Preparing and mounting the carrier arm 1) Remove the three screws (1). Take out the blocker. Fig. 3: Remove the blocker 2) Install the washer kit (2) into the adaptor. Fig. 4: Mount the carrier arm...
  • Page 97 ZEISS EXTARO 300 on Wall Mount 3) Mount the shaft (3) into the adaptor. Then install back the blocker. 4) Tighten the shaft with the knob (4). Fig. 5: Install the shaft 5) Remove the cover of carrier arm, then mount the carrier arm (4) from below onto the main shaft (3).
  • Page 98 ZEISS EXTARO 300 on Wall Mount 2) Mount the lower flange (5) (2177-540) and insert the locking pin (6) (2177-732). Fix the pin with the screw (0086-167) M5x8 DIN 6912 -A2-70 and two washers (0504-854) 6 ISO 7092 from the other side.
  • Page 99 ZEISS EXTARO 300 on Wall Mount 7) Install one retaining ring (8) (0527-652) 35x1.5 DIN 471 –A2 below the system. Fig. 9: Install the retaining ring 8) Rotate the carrier arm. Make sure that the opening direction (9) is paralleled with the carrier arm.
  • Page 100 ZEISS EXTARO 300 on Wall Mount 9) Fixing the lower flange with 6 screws (0515-187) M5x25 ISO 14580 -A2-70. Release the knob, rotate the arm from left to right, and make sure the arm has no touch with the wall.

  • Page 101: Preparing And Mounting The Suspension Arm

    ZEISS EXTARO 300 on Wall Mount Preparing and mounting the suspension arm 1) Attach the suspension arm to the carrier arm. 2) Insert the 8 mm Allan wrench (1) into the hole to prevent the arm drop. Fig. 12: Mounting suspension arm to carrier arm...
  • Page 102 ZEISS EXTARO 300 on Wall Mount 7) Connect the power cables to the central control board in the carrier arm and mount the cables to the bracket (7). Tilt switch cable and cable from the coupling PCBA in the yoke.

  • Page 103: Installation Of The Opmi

    ZEISS EXTARO 300 on Wall Mount Installation of the OPMI 1) Unscrew the screw (1) from the yoke. 2) Remove the yoke cover (2). Fig. 17: Remove yoke cover 3) Attach the yoke with OPMI to the suspension arm. Pull through the cable and the optical fiber from the yoke.
  • Page 104 ZEISS EXTARO 300 on Wall Mount 7) Connect the CAN/ power cable (6) to the PCB and secure the PE cable (7) to the yoke. Fig. 19: Plug in the power cable 8) Undo the three screws and remove the rear OPMI cover (8).

  • Page 105: Installation Of The Optical Fiber

    ZEISS EXTARO 300 on Wall Mount Installation of the Optical Fiber 1) Remove the two knobs (1). 2) Remove the four screws (2). The other two screw are at the other side. 3) Remove the Philips screw (3) on the front.
  • Page 106 ZEISS EXTARO 300 on Wall Mount 6) Routing the cable in the way of the figure shows. Fix the cable with cable tie in the suspension arm. Note If the integrated video system will be installed, do not fix the cable at this step.
  • Page 107 ZEISS EXTARO 300 on Wall Mount 8) Fix the cable and fiber with the bracket. Fig. 25: Fix the fiber optic 9) Reinstall the rear OPMI cover (1). 10) Fix the cover with two screws (2). 11) Fix the emergency knob with one screw (3).
  • Page 108 ZEISS EXTARO 300 on Wall Mount 13) Reinstall the yoke cover with one screw (1) 14) Take care that there are no gaps between the cover and yoke Fig. 27: Fix the yoke cover SM-30-0053-A03 Service Instructions Confidential and Proprietary...

  • Page 109: Mount The Rgb Led Light Source

    In that case the LED’s can be controlled individually. If the customer has an iPad with ZEISS connect app the color temperature of the light can be changed from 3000 K - 6500 K in 500 K steps. Optionally the RGB LED light source can be equipped with a violet module which generates 405 nm light for carries and filling detection.
  • Page 110 ZEISS EXTARO 300 on Wall Mount 4) Remove the metal cover by undo the two screws (4). Fig. 30: Remove the metal cover 5) Mount the Violet module onto the RGB LED light source. Fig. 31: Mount the Violet module...
  • Page 111 ZEISS EXTARO 300 on Wall Mount 6) Connect the cable (5) to RGB LED light source. 7) Paste the warning label (6) to the cover. Fig. 32: Paste the warning label 8) Mount the cover back. 9) Reset the dip switch of the RGB LED light source to enable the violet light.

  • Page 112: Installation Of The Rgb Led Light Source

    ZEISS EXTARO 300 on Wall Mount 4.7.2 Installation of the RGB LED light source Note The PE cable and the LED light are not necessary for ZEISS EXTARO 300. Please throw them away. Fig. 34: PE cable and LED light 1) Mount the RGB LED light source onto the wall mount bracket (3) with four screws.
  • Page 113 ZEISS EXTARO 300 on Wall Mount 3) Mount the RGB LED light source module onto the wall adaptor with four screws. Fig. 37: Mount the RGB LED light source 4) Connect the PE cable (3) between RGB LED light source and the adaptor.
  • Page 114 ZEISS EXTARO 300 on Wall Mount 5) Note the pole of both cables. 6) Remove the green connector (4) from the power cable. Fig. 39: Remove the green connector 7) Route the RGB LED light source power cable and the Ethernet cable (2164-896) from the adaptor.
  • Page 115 ZEISS EXTARO 300 on Wall Mount 8) Reconnect the green connector and plug the two cable (Ethernet and power cable) into the RGB LED light source PCB. Fig. 41: Cable Routing 9) Route the light guide through the adaptor and connect it with RGB LED light source.
  • Page 116 ZEISS EXTARO 300 on Wall Mount 10) Route the LAN cable, power cable and fiber from the wall adaptor. Fig. 43: Remove the bracket 11) Connect the system power cable. from system from customer Fig. 44: Connect the power cable...

  • Page 117: Installation Of Integrated Video (Optional)

    ZEISS EXTARO 300 on Wall Mount Installation of Integrated Video (optional) Ignore this step if customer does not order the video module. Install the CCU 1) Remove the small cover at the bottom of the carrier arm and install the IR receiver with cable (1).
  • Page 118 ZEISS EXTARO 300 on Wall Mount 6) Connect the IR receiver cable (6) to the CCU. Fig. 49: Connect IR receiver cable 7) Mount the CCU bracket B and fix it with two screws (7). Note The CCU power cable and CAN cable should be under the bracket.
  • Page 119 ZEISS EXTARO 300 on Wall Mount Install the camera head 1) Undo the three screws and remove the rear OPMI cover with cable cover (1). Fig. 51: Remove the OPMI cover 2) Remove the five screws (2) of the OPMI PCB.
  • Page 120 ZEISS EXTARO 300 on Wall Mount 3) Pull the OPMI PCB downwards, and mount the camera head onto the OPMI body. Attach the camera head to the left of the OPMI body as much as possible. Fig. 53: Mount the camera head 4) Install back the OPMI control board with the five screws.
  • Page 121 ZEISS EXTARO 300 on Wall Mount 5) Routing the video cable from OPMI to suspension arm, carrier arm and then connect it with the CCU. 6) Connect the video cable to the camera head. Fig. 55: Connect the video cable...
  • Page 122 ZEISS EXTARO 300 on Wall Mount 7) Fix the cables with bracket. Fig. 56: Connect the video cable 8) Fix the cables with cable tie in the yoke. Fig. 57: Fix cable SM-30-0053-A03 Service Instructions Confidential and Proprietary Version 01, 2017-03-10 33 / 42 Order No.
  • Page 123 ZEISS EXTARO 300 on Wall Mount 9) Fix the cables with cable ties in the suspension arm. Fig. 58: Cable routing 10) Mount the rear OPMI cover with cable cover with three screws. 11) Take care that no gaps are between the OPMI and cover.
  • Page 124 ZEISS EXTARO 300 on Wall Mount 12) Mount the yoke cover with one screw. 13) Take care that no gaps are between the OPMI and cover. Fig. 60: Install yoke cover 14) Install the video interface PCB to the backpack (2) 15) Connect the USB cable from the video interface PCB to the USB of the CCU in the carrier arm.
  • Page 125 ZEISS EXTARO 300 on Wall Mount 16) Mount the HDMI inter-connector PCB (3) to the adaptor. Fig. 62: Mount the HDMI inter-connector PCB 17) Routing the HDMI cable (4) from CCU to adaptor and then connect to the HDMI inter-connector PCB.

  • Page 126: Installation Of Wifi Module (Optional)

    ZEISS EXTARO 300 on Wall Mount Installation of WIFI Module (optional) Ignore this step if customer does not order the WIFI Module. The module is shipped in one box, it includes below items: WIFI router Power cable LAN cables Bracket Interface PCB Fig.
  • Page 127 ZEISS EXTARO 300 on Wall Mount 2) Mount the WIFI router onto the wall mount adaptor. Fig. 67: Mount WIFI module 3) Mount the six spacer bolts to adaptor, then install the two interface PCB (1) with six screws M3x6 ISO 14583 -A2-70 to adaptor.
  • Page 128 ZEISS EXTARO 300 on Wall Mount 4) Routing the WIFI router power cable (2) from quick connect PCB through the adaptor and connect it to the USB type B of the WIFI router. 5) Routing one of the Ethernet cable (3)
  • Page 129 ZEISS EXTARO 300 on Wall Mount 7) Connect the WIFI router and interface PCB with two Ethernet cable (5) (2208-841). from LAN-2 to iPad from WAN/LAN-3 to customer Ethernet Fig. 71: Network connectivity 8) Fix the cable with cable tie (6).

  • Page 130: Final Assemble

    ZEISS EXTARO 300 on Wall Mount 4.10 Final Assemble 1) Mount the arm cover and secure it with two screws (1). Fig. 73: Mount the carrier arm cover 2) Mount the knob (2) of the carrier arm. 3) Let the opposite cover of the carrier arm open to have access to the central control PCBA later.
  • Page 131 ZEISS EXTARO 300 on Wall Mount 6) Mount the suspension arm cover. 7) Mount the tube and eyepieces on the microscope. 8) Mount the microscope accessories, if provided. 9) Hold the suspension arm and loosen locking knob (6). 10) Adjust balancing screw (7) in such a way that the suspension arm remains stationary in every position (8 mm hex key).
  • Page 132 ZEISS EXTARO 300 on Ceiling Mount Installation Instruction Service Instructions Confidential and Proprietary SM-30-0053-A02 Version 01, 2017-03-10 Order No. -...
  • Page 133 ZEISS EXTARO 300 on Ceiling Mount Service Instructions SM-30-0053-A02 Confidential and Proprietary Order No. - 2 / 37 Version 01, 2017-03-10...
  • Page 134 ZEISS EXTARO 300 on Ceiling Mount Contents Contents ........................3 Update information....................4 General information ....................5 3.1 Tools and auxiliaries ....................5 3.1.1 Tool required ....................... 5 3.1.2 Documents required ..................... 5 Installation ....................... 6 4.1 Unpacking the instrument..................6 4.2 Install the column ......................

  • Page 135: Update Information

    ZEISS EXTARO 300 on Ceiling Mount Update information Version Comments 2017-03-10: First issue Service Instructions SM-30-0053-A02 Confidential and Proprietary Order No. - 4 / 37 Version 01, 2017-03-10...

  • Page 136: General Information

    The relevant ESD protection measures have to be observed when working on electrical components. Fasten cable ties and additional components after dismantling. The ZEISS EXTARO 300 ceiling mount must only be mounted by authorized service staff. The ceiling anchor plate (pre-installation set) must have been mounted by a construction specialist prior to installation.

  • Page 137: Installation

    ZEISS EXTARO 300 on Ceiling Mount Installation Unpacking the instrument 1) Open the package. 2) Take out the suspension arm, carrier arm, OPMI and other parts. Fig. 1: Unpacking the instrument (example) Install the column Note It is the customer's responsibility to ensure that the ceiling at the site of installation is prepared in accordance with the instructions and specifications given in the planning manual M-30-1999.
  • Page 138 ZEISS EXTARO 300 on Ceiling Mount 2) Install the column adaptor into the ceiling flange. Insert the pin (1) (1248-097) and tighten it with 3 mm Allen wrench. Tighten the six screws (2) with 4 mm Allen wrench. Fig. 3: Install the column adaptor...
  • Page 139 ZEISS EXTARO 300 on Ceiling Mount 3) Attach the column into the adaptor. Insert the pin (3) (2178-241) and fix it with washer (0214-468) and screw (2207-679). Tighten the six set screws (4) with 2.5 mm Allen wrench. Fig. 6: Attach column into adaptor 4) Level the adapter by using 6x adjustment screws (5).
  • Page 140 ZEISS EXTARO 300 on Ceiling Mount 6) In case the cables are routed in the column before attaching it with the ceiling flange. The cable opening has to show in direction of the patient. Fig. 8: Cable routing (bottom) 7) Insert the pin (5) (2179-656) and fix it with washer (0210-898) and screw (0523-868).
  • Page 141 ZEISS EXTARO 300 on Ceiling Mount 9) Mount the ceiling flange cover (6) and fix it to the middle of the column with the cover support (7). Fig. 10: Install the ceiling flange cover Service Instructions SM-30-0053-A02 Confidential and Proprietary Order No.

  • Page 142: Preparing And Mounting The Carrier Arm

    ZEISS EXTARO 300 on Ceiling Mount Preparing and mounting the carrier arm 1) Mount the carrier arm to the ceiling column. Tighten the knob (1) and check that the arm should not drop off. Note Make sure the big opening points to the carrier arm central control PCB.
  • Page 143 ZEISS EXTARO 300 on Ceiling Mount 4) Route the string from the adaptor above to the bigger opening (7) of the shaft. 5) Fix the power cable to the middle of the string (8) with insulation tap. Fig. 13: Power cable routing with string...
  • Page 144 ZEISS EXTARO 300 on Ceiling Mount Fig. 15: Connect the power cable SM-30-0053-A02 Service Instructions Confidential and Proprietary Version 01, 2017-03-10 13 / 37 Order No. -...

  • Page 145: Preparing And Mounting The Suspension Arm

    ZEISS EXTARO 300 on Ceiling Mount Preparing and mounting the suspension arm 1) Attach the suspension arm to the carrier arm. 2) Insert the 8 mm Allen wrench (1) into the hole to prevent the suspension arm from falling. Fig. 16: Mounting suspension arm to carrier arm...
  • Page 146 ZEISS EXTARO 300 on Ceiling Mount 7) Connect the power cables to control board in the carrier arm and mount the cables to the bracket (6). 8) Connect the PE cable (7) to the power supply. Note The shielding must be connected to sheet metal.

  • Page 147: Installation Of The Opmi

    ZEISS EXTARO 300 on Ceiling Mount Installation of the OPMI 1) Unscrew the screw (1) from the yoke. 2) Remove the yoke cover (2). Fig. 21: Remove yoke cover 3) Attach the yoke with OPMI to the suspension arm. Pull through the cable from the yoke.
  • Page 148 ZEISS EXTARO 300 on Ceiling Mount 7) Connect the power cable (6) to the PCB and secure the PE cable (7) to the yoke. Fig. 23: Plug in the power cable 8) Undo the three screws and remove the rear OPMI cover with cable cover (8).

  • Page 149: Installation Of The Optical Fiber

    ZEISS EXTARO 300 on Ceiling Mount Installation of the Optical Fiber 1) Remove the two knobs (1). 2) Remove the four screws (2). The other two screw are at the other side. 3) Remove the Philips screw (3) on the front.
  • Page 150 ZEISS EXTARO 300 on Ceiling Mount Note In case of optional camera has to be installed please consider also the CCU/camera cable described in section Fehler! Verweisquelle konnte nicht gefunden werden.. 6) Route the optical fiber from carrier arm to suspension arm, and the yoke.
  • Page 151 ZEISS EXTARO 300 on Ceiling Mount 10) Fix the cable and fiber with the bracket (5). Fig. 30: Plug fiber into socket 11) Install back the rear OPMI cover with cable cover with three screws. Fig. 31: Fix the fiber...
  • Page 152 ZEISS EXTARO 300 on Ceiling Mount 12) Install the yoke cover with the screw (6). Take care that there are no gaps between the cover and yoke Fig. 32: Fix the yoke cover SM-30-0053-A02 Service Instructions Confidential and Proprietary Version 01, 2017-03-10 21 / 37 Order No.

  • Page 153: Installation Of The Violet Module (Optional)

    ZEISS EXTARO 300 on Ceiling Mount 3.2. Installation of the Violet Module (optional) Ignore this step if customer does not order the violet module. 1) Remove the backpack cover. 2) Remove the three screws (1). Take the bracket out. Fig. 33: Remove the bracket 3) Disconnect the cable (2) from RGB LED light source.
  • Page 154 ZEISS EXTARO 300 on Ceiling Mount 6) Remove the metal cover by undo the two screws (5). 7) Mount the Violet module onto the RGB LED Light source. Fig. 35: Remove the metal cover 8) Connect the cable (6) to RGB LED light source.

  • Page 155: Installation Of Integrated Video (Optional)

    ZEISS EXTARO 300 on Ceiling Mount Installation of Integrated Video (optional) Ignore this step if customer does not order the video module. Install the CCU 1) Remove the backpack cover (see section 3). 2) Remove the small cover at the bottom of the carrier arm and install the IR receiver with cable (1).
  • Page 156 ZEISS EXTARO 300 on Ceiling Mount 7) Connect the IR receiver cable (7) to the CCU Fig. 42: Remove the metal cover 8) Mount the CCU bracket B and fix it with two screws (8) with T20 hex driver. Note The CCU power cable and CAN cable should be under the bracket B.
  • Page 157 ZEISS EXTARO 300 on Ceiling Mount 10) Connect the USB cable (11) from USB interface of CCU to the interface PCB. Fig. 45: Connect the USB cable 11) Fix the USB cable to the carrier arm with a cable tie.
  • Page 158 ZEISS EXTARO 300 on Ceiling Mount Install the camera head 1) Remove the rear OPMI cover with cable cover (1). 2) Remove the five screws of the OPMI PCB Fig. 47: Remove screws 3) Pull the PCB (1) down and position the OPMI camera head (2) into the OPMI body.
  • Page 159 ZEISS EXTARO 300 on Ceiling Mount 7) Route the video cable from CCU in carrier arm to the OPMI, through the suspension arm and yoke. 8) Connect the cable with the CCU and camera head (4). Fig. 49: Plug in the camera cable 9) Fix the cables in yoke with cable tie.
  • Page 160 ZEISS EXTARO 300 on Ceiling Mount 10) Fix the cables with bracket. Fig. 51: Fix the cable in OPMI 11) Fix the cables with cable ties Fig. 52: Fix the cables with cable ties SM-30-0053-A02 Service Instructions Confidential and Proprietary...
  • Page 161 ZEISS EXTARO 300 on Ceiling Mount 12) Mount the rear OPMI cover with cable cover with three screws. 13) Take care that no gaps are between the OPMI and cover. Fig. 53: Mount the OPMI back cover 14) Mount the yoke cover with one screw.
  • Page 162 ZEISS EXTARO 300 on Ceiling Mount 16) Remove the terminal (5) from the ceiling flange. Fig. 55: Remove the terminal 17) Replace the terminal by bracket with HDMI connector socket (6). 18) Mount the HDMI inter-connector with the bracket with four screws (7).
  • Page 163 ZEISS EXTARO 300 on Ceiling Mount 21) If not done before route the HDMI cable from CCU, through the column big opening to the HDMI connector. Make sure that the magnetic ring (10) is at the top. Note To routing the cables through the column a string can be helpful for pulling.

  • Page 164: Installation Of Wifi Module (Optional)

    ZEISS EXTARO 300 on Ceiling Mount Installation of WIFI Module (optional) Ignore this step if customer does not order the WIFI Module. The module is shipped in one box, it includes following items: WIFI router with antenna Power cable 2x LAN cables 2x RJ45 Inter-connector PCBs Fig.
  • Page 165 ZEISS EXTARO 300 on Ceiling Mount 2) Mount the WIFI router onto the bracket with four screws. Fig. 61: Mount the WIFI router with the bracket 3) Mount the WIFI router onto the backpack with the three screws. 4) Connect the power cable into WIFI router (USB type B).
  • Page 166 ZEISS EXTARO 300 on Ceiling Mount 6) Connect the WIFI router power cable to the quick connector PCB (1). 7) Connect the Ethernet cable (2) (2205-232) from CCU to WIFI Router LAN-1. 8) Fix the cables to the carrier arm with cable tie (3).
  • Page 167 ZEISS EXTARO 300 on Ceiling Mount 1) Connect the two Ethernet cables (4) (2197-854) from WIFI router to the interconnector PCB. 2) Route the cable from the big opening of the shaft. Note from LAN-2 To routing the cables through the column a string can be helpful for pulling.

  • Page 168: Final Assemble

    ZEISS EXTARO 300 on Ceiling Mount Final Assemble 1) Mount the arm cover and secure it with two screws (1). 2) Let the opposite cover of the carrier arm open to have access to the central control PCBA later Fig. 67: Mount the carrier arm cover 3) Mount the knobs (2) of the carrier arm.

Table of Contents
