Summary of Contents for Bluetti PS72

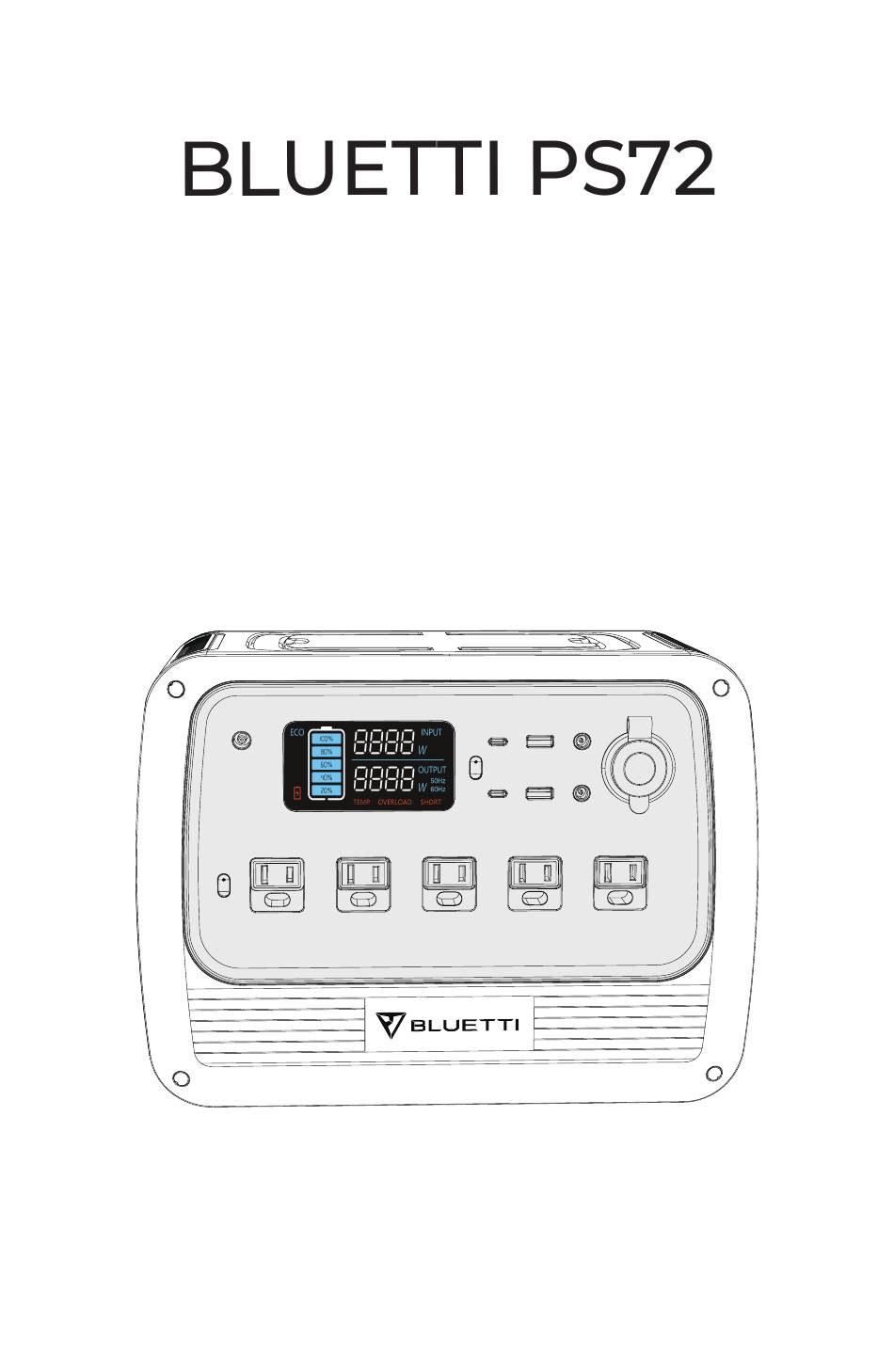

- Page 1 User Manual...
- Page 2 Thank You Thank you for making BLUETTI a part of your family. From the very beginning, BLUETTI has tried to stay true to a sustainable future through green energy storage solutions for both indoor and outdoor use while delivering an exceptional eco-friendly experience for our homes and our world.
-
Page 3: Table Of Contents
CONTENTS Safety Instructions General Safety Handling Storage and Usage What's In The Box Standard Packaging Product Overview Diagram Specifications Operation LCD Screen Powering On/Off Mode Setting Charging Discharging Appendix FAQs (Frequently Asked Questions) FCC Warning Technical Support... -
Page 4: Safety Instructions
• Unauthorized disassembly, alteration of the equipment or modification of the software code is not allowed. BLUETTI shall not be liable for the following circumstances: • Equipment damage caused by force majeure, such as earthquake, fire, storm, flood, mudslide, etc. - Page 5 Do not move the unit during operation as the vibrations and shocks associated with movement may cause damage to the internal hardware. • In case of malfunction, turn off the unit immediately and contact BLUETTI support or your local BLUETTI dealers if this manual cannot adequately explain the malfunction to you. •...
-
Page 6: Handling
It is recommended to charge the unit via an AC source. If charging via solar energy, ensure that your solar system provides an output of more than 100W. BLUETTI shall not be liable for any equipment damage caused by the violation of above instructions. -
Page 7: What's In The Box
What's In The Box Standard Packaging Power Station AC Adapter Car Charging Cable Solar Charging Cable User Manual Warranty Card * AC Adapter: 94.5in/240cm. Car Charging Cable: 28in/72cm. Cigarette lighter port to DC7909. Solar Charging Cable: 59in/150cm. MC4 to DC7909. Note: All measurements are for reference only. -
Page 8: Product Overview
Product Overview Diagram ① ⑦ Charging Port USB-C Port x 2pcs ② ⑧ USB-A Port x 2pcs LCD Screen ③ ⑨ DC 5521 Output Port x 2pcs AC Power Button ④ ⑩ Cigarette Lighter Port x 1pcs US AC output x 5 pcs ⑤... -
Page 9: Specifications
Specifications PS72 General Battery Capacity 716Wh Cell Type LiFePO4 Dimensions (L*W*H) 12.4 in×8.4in×9.2in / 315mm×212mm×233 mm Weight 21.4 Ibs / 9.7 kg Discharging Temperature -4°F-104°F/-20°C-40°C Charging Temperature 32°F-104°F/0°C-40°C Working Humidity 10-90% AC Output 120V 700W Power 220-240V 1000W Surge 1400W... -
Page 10: Operation
Operation LCD Screen a: ECO Mode e: Temperature Anomaly Alert b: Battery Capacity f: Output Power c: Input Power g: Overload Alert d: Low-battery Alert h: Short-circuit Alert Powering On/Off Powering on: Press the AC/DC Power Button to start up corresponding output. Green light(on the button) LCD Display * The LCD screen is on for about 30-60 seconds. -
Page 11: Mode
: Under 'Setting Mode', press the AC power button to switch. Charging AC Charging Simply plug the PS72 into a standard wall outlet and start charging. Wall Outlet AC Adapter When on this mode, the AC output will automatically turn off after 4-hour low (≤10W) or no load to save power. - Page 12 Solar Charging Cable Car Charging Connect the PS72 directly to the vehicle plug-in cigarette lighter port via the car charging cable. Car Charging Cable OCV: Open circuit voltage, also for Voc. The maximum voltage that the solar panel can produce with no load on it.
-
Page 13: Discharging
Generator Charging Connect the AC adapter input plug to the generator while the output plug goes to the charging port of PS72. Discharging Smart Phone LED Light 50-60 Times 20-30 Hrs 7-8 Hrs 10Wh Power Tools Refrigerator Slow Cooker 7-8 Hrs... -
Page 14: Appendix
A: Yes. Press the DC Power Button to enable the wireless charging. Q: Can it charge and discharge at the same time? A: Yes. It supports pass-through charging. PS72 comes with the premium LiFePO4 battery and proprietary Battery Management System to ensure that it can charge and discharge at the same time. -
Page 15: Fcc Warning
FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1)This device may not cause harmful interference 2)This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 16: Technical Support
Technical Support Should you require any further assistance, please do not hesitate to contact BLUETTI service team. BLUETTI POWER INC Web: https://www.bluettipower.com/ Tel: 833-988-3663 / 702-463-4792 Mail: service@bluettipower.com Add: 6185 S Valley View Blvd Ste D. Las Vegas, NV 89118.
