BOLT M8 x 100
HALF WASHER M8
8 PCS.
8 PCS.
HEADBOARD (1 Pc)

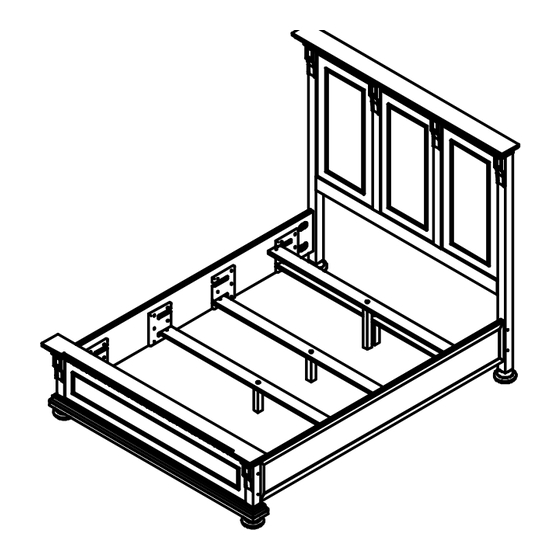

23365 QUEEN BED
23366 KING BED
HARDWARE LIST
C
D
SPRING W. M8
HEXAGONAL NUT
8 PCS
.
M8 (8 PCS.)
M6 X 40 (4 PCS.)
PART INSIDE
1
2
FOOTBOARD (1 Pc)
Assembly Instruction
STEP 1:
TURN CONNECTING BOLT (A) INTO THE THREADED INSERT THAT IS FIXED IN
THE HEADBOARD (1) AND FOOTBOARD (2). PLACE SIDE RAIL (3) IN POSITION
AND ATTACH WITH THE HALFMOON WASHER (B), SPRING WASHER (C), HEX
NUT (D) USING WRENCH KEY (G) PROVIDED.
E
F
ALLEN KEY L4
WRENCH KEY
ALLEN BOLT
(FOR ALLEN BOLT)
(FOR HEXA BOLT)
1 PC.
3
4
(2 Pcs)
SLATS (4 Pcs)
Page 1 of 2
G
H
DOWEL
1 PC.
4 PCS.
I
SCREW
1
" (8 PCS.)
2
5
SUPPORT SLATS
(8 Pcs)
(4 Pcs)
(4 Pcs)
(A)
(B)
(C)
(D)
(G)
Advertisement
Table of Contents
Related Manuals for Howard Miller HEKMAN 23365
Summary of Contents for Howard Miller HEKMAN 23365

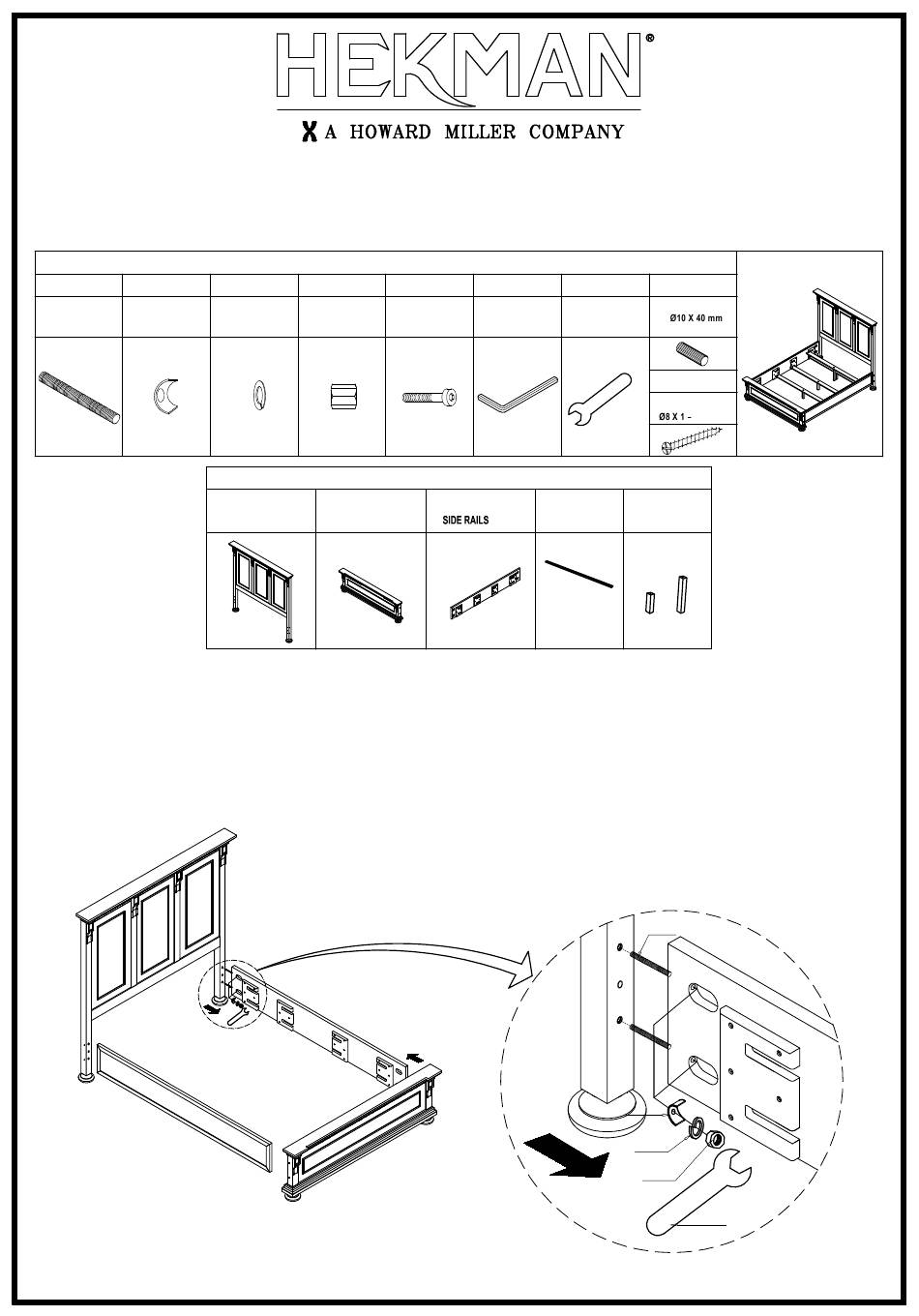

- Page 1 23365 QUEEN BED 23366 KING BED HARDWARE LIST ALLEN KEY L4 WRENCH KEY DOWEL BOLT M8 x 100 HALF WASHER M8 SPRING W. M8 HEXAGONAL NUT ALLEN BOLT (FOR ALLEN BOLT) (FOR HEXA BOLT) 8 PCS. 8 PCS. 8 PCS M8 (8 PCS.) M6 X 40 (4 PCS.) 1 PC.
- Page 2 STEP 2: PLACE SLATS IN THE WOOD RAIL BRACKET FOUND INSIDE THE SIDE RAILS USING SCREW (I) AND TIGHTEN WITH SCREW DRIVER (NOT INCLUDED). ATTACH SUPPORT LEGS TO SLATS, ATTACH WITH ALLEN BOLT (D) AND TIGHTEN USING ALLEN KEY M4 (F). IF THE BED SUPPORTS ARE NOT LEVEL WITH THE FLOOR, ADJUST THE ADJUSTABLE LEVELERS FOUND ON THE BOTTOM OF THE LEG SUPPORTS.
