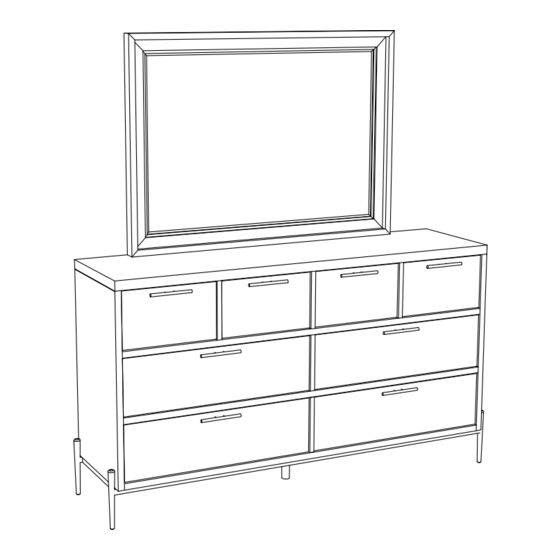

Howard Miller HEKMAN 23760 Assembly Instruction

HARDWARE LIST

NO. ITEM DESCRIPTIN
1
JCB Bolt M6 X 20 MM
2
JCB Bolt M6 X 30 MM
3
JCB Bolt M6 X 40 MM
4
JCB Bolt M6 X 50 MM
5 Flat washer M8X25 MM
6
Allen wrench
7
Bolt M8X20 MM
8
Flat washer M8X18 MM
9
Wrench

TO ASSEMBLY :

STEP 1 : Unpack dresser and remove drawers.
STEP 2 : Roll dresser on its back, then on its top on a clean, soft surface.
STEP 3 : Thread the HEX. bolt(7) to iron leg(B) & iron cross bar(C).using small washers(8) tighten end assemblies fully.
STEP 4 : Set base assembly on the upside down case and attach with bolt (1) and washer (5) using allen wrench (6).
STEP 5 : Tighten bolts in step 6 fully with allen wrench (6) & wrench (9) then carefully turn the buffet upright.
STEP 6 : Align hole in center leg (D) with holes on bottom of dresser (A) and slide it into position.
STEP 7 : Thread the flat washer(5) , JCB bolt (1) to leg (B) .tighten bolts in step 6 fully with allen wrench (6) then carefully turn the table upright.
STEP 8 : Install drawers.
h h h h G G G G o o o o v v v v ~ ~ ~ ~ h h h h y y y y k k k k G G G G t t t t p p p p s s s s s s s s l l l l y y y y G G G G j j j j v v v v t t t t w w w w h h h h u u u u € € € € G G G G

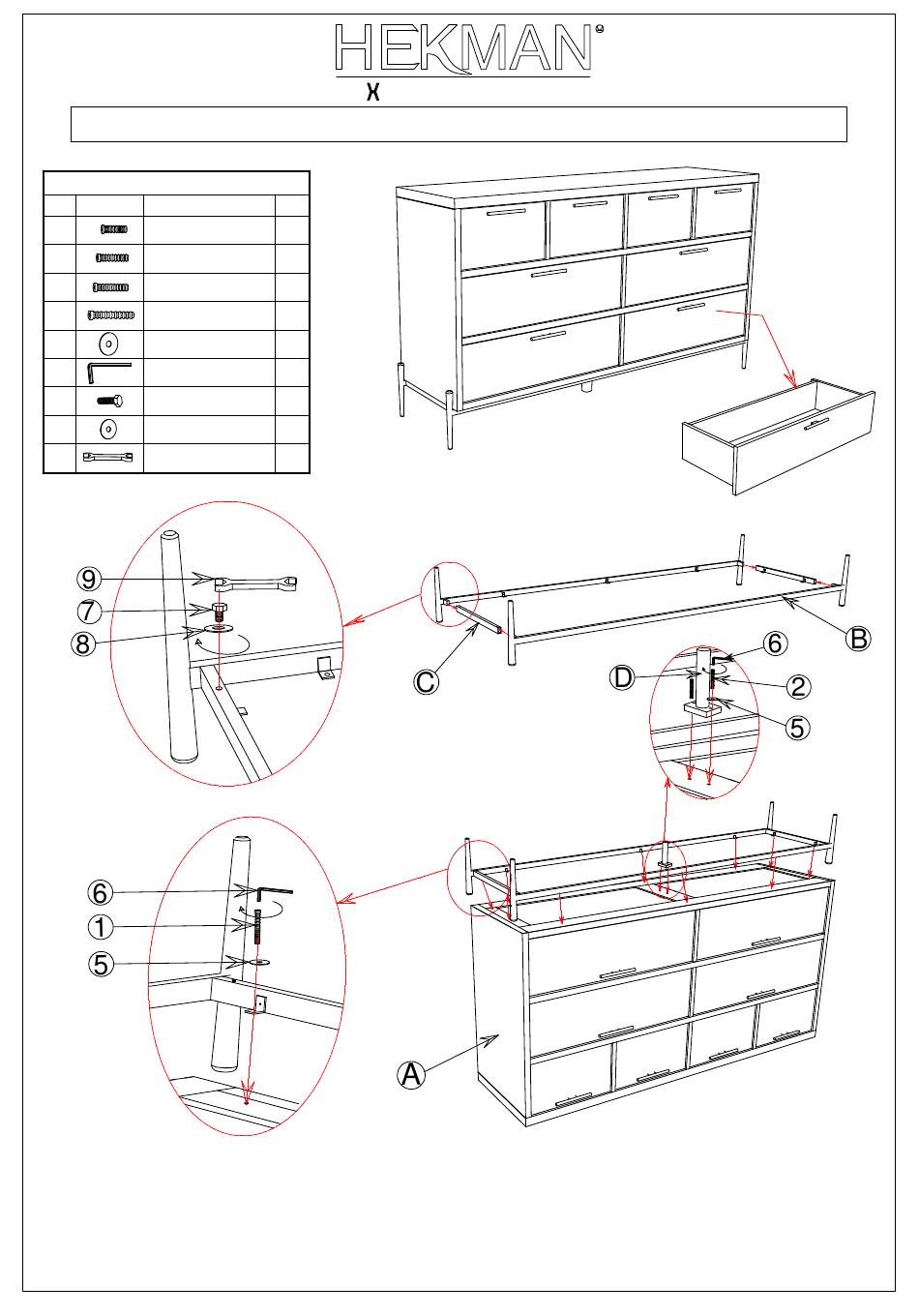

ASSEMBLY INSTRUCTION FOR 23760 DRESSER

QTY.
10
2
4
4
20
1
4
4
1
Page 1/2
