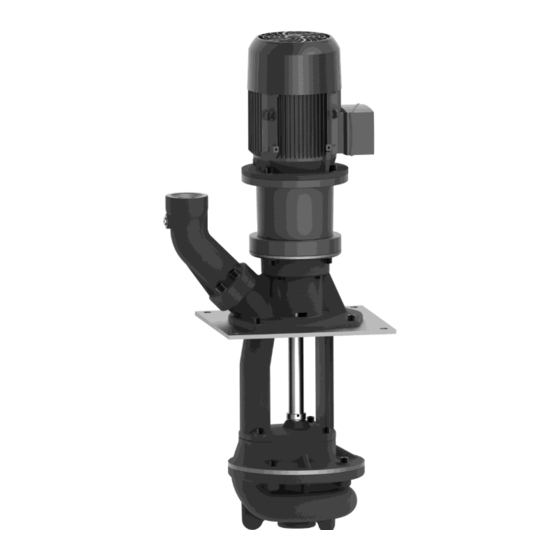

BRINKMANN Free Flow-Immersion Pumps
Brinkmann Pumpen
K. H. Brinkmann GmbH & Co. KG
Friedrichstraße 2
D-58791 Werdohl
Tel.: +49-2392 / 5006-0
Fax.: +49-2392 / 5006-180
Subject to change without prior notice.
© Brinkmann Pumpen
BE1554 Operating Instructions
(Translation of original)
Edition
SFT1554-C
www.brinkmannpumps.de
sales@brinkmannpumps.de
Order - No.: BE1554 ENGLISH
01/2023
1
11
Page
of
Advertisement
Table of Contents
Related Manuals for BRINKMANN PUMPS SFT1554-C
Summary of Contents for BRINKMANN PUMPS SFT1554-C
- Page 1 BE1554 Operating Instructions (Translation of original) BRINKMANN Free Flow-Immersion Pumps SFT1554-C Brinkmann Pumpen K. H. Brinkmann GmbH & Co. KG Friedrichstraße 2 D-58791 Werdohl Tel.: +49-2392 / 5006-0 www.brinkmannpumps.de Fax.: +49-2392 / 5006-180 sales@brinkmannpumps.de Subject to change without prior notice.
-
Page 2: Table Of Contents
Brinkmann Free Flow-Immersion Series SFT1554-C Contents 9 Trouble shooter’s guide ........7 Indication to the manual ........2 Description of product ........2-3 10 Spare part ............8-9 Safety instructions ..........4 11 Repair ............... 9 Transport and storage ........4 12 Disposal ............ - Page 3 Technical data Max. del. Max. del. Height Depth of Weight Power pressure volume immersion (4-pole) bar / spec. 50 / 60 Hz Type weight 1 l/min H mm h mm SFT1554 / 360-C 1.25 4.0 / 4.55 / 490-C The motor is surface-cooled and compliant with DIN IEC 34 and EN 60034 (protection degree IP 55).
-
Page 4: Safety Instructions
• Guards for moving parts (e.g. coupling) must not 3 Safety instructions be removed from the machine while in opera- When operating the pump, the safety instructions contained in this manual, the relevant national tion. accident prevention regulations and any other •... -
Page 5: Installation And Connection
5 Installation and Connection Electric wiring Mechanical installation During any assembly or disassembly process the pumps must be secured against tipping trough ropes for example at all times. All service work must be carried out by quali- Pumps must be mounted securely. Piping, tank and fied service personnel. -
Page 6: Start Up / Shut Down
6 Start up / Shut down ATTENTION Start up The SFT pump should be operated in continual ATTENTION operation mode, not pulsed mode! Pulsed mode causes increased wear due to the Switch off at the mains. return flow of chips and additional load on the After connection the electrical wires, close the bearings terminal box. -
Page 7: Trouble Shooter's Guide
9 Trouble shooter’s guide Fault Cause Remedy Motor does not start, no motor At least two of the power supply Check fuses, terminals and supply noise leads have failed leads . Overload has tripped Inspect overload Motor does not start, humming noise One of the supply leads has failed See above Impeller faulty... -
Page 8: Spare Part
10 Spare part 10.1 Spare part list for the immersion pumps of the series SFT1554-C Item Description Stator with terminal board Motor flange End shield Terminal box Fan cover Ball bearing DIN 625 10 Ball bearing DIN 625 11 Gasket... -
Page 9: Repair
10.2 Indications to the spare part order 11.2 Assembling the insert shaft and motor shaft Spare parts are available from the supplier. Standard commercially available parts are to be ATTENTION purchased in accordance with the model type. The ordering of spare parts should contain the Clean the contact surfaces of the insert shaft (2) following details: (inside) and the motor shaft (3). -
Page 10: Eclarations Of Conformity
Manufacturer Brinkmann Pumpen, K. H. Brinkmann GmbH & Co. KG Friedrichstraße 2 D-58791 Werdohl Germany This declaration of conformity is issued under the sole responsibility of Brinkmann Pumps and belongs to the following product. Product name Free-flow Immersion Pumps Type... - Page 11 Freistrom-Tauchpumpen / Free-flow Immersion Pumps / Pompes plongeantes non - engorgeables / Bombas de inmersión de torbellino Typ / Type / Tipo SFT1554-C Das bezeichnete Produkt stimmt mit den folgenden Richtlinien des Rates zur Angleichung der Rechtsvorschriften der EG-Mitgliedsstaaten überein: The named product conforms to the following Council Directives on approximation of laws of the EEC Member States: Le produit sus-mentionné...
