Summary of Contents for Trek DOMANE+AL 2023

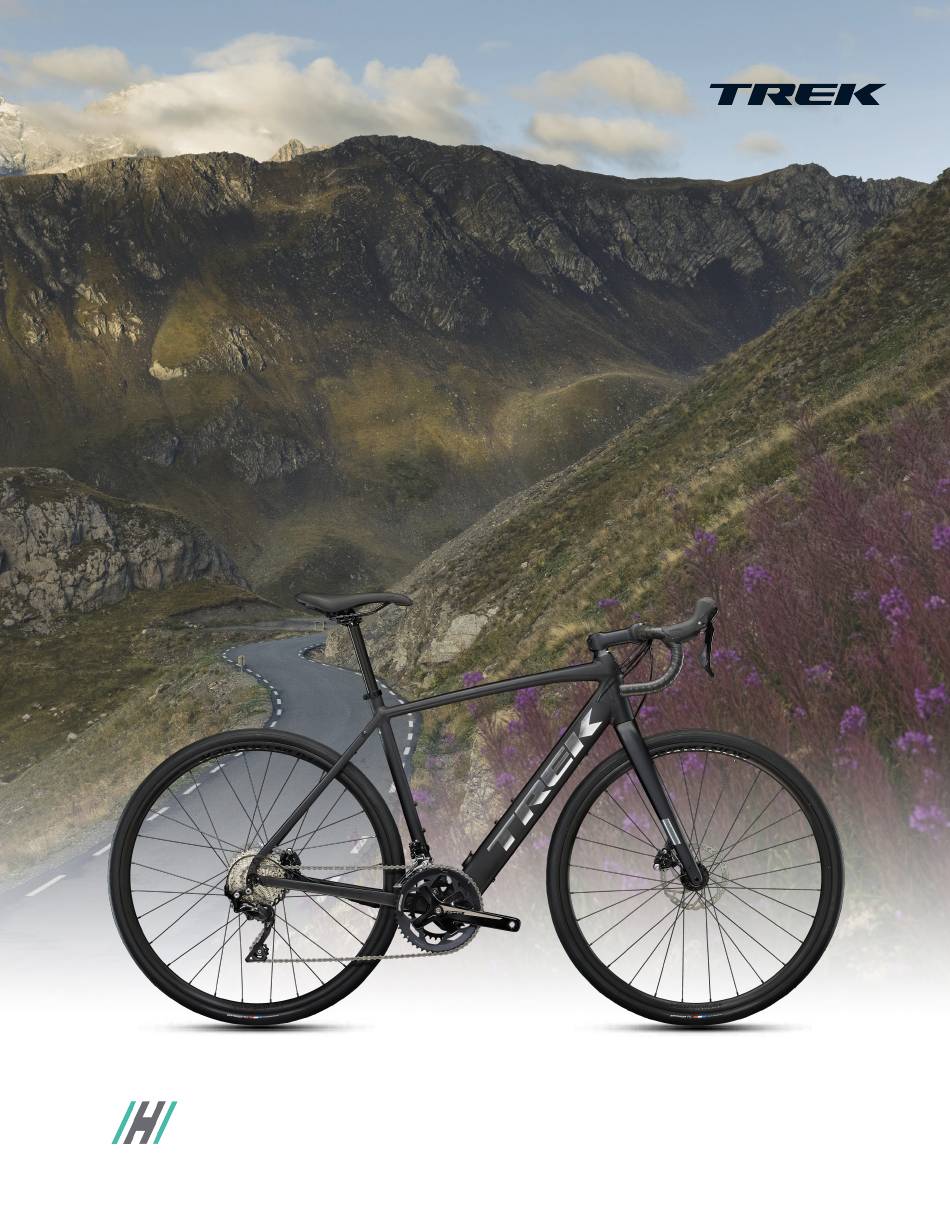

  • Page 1 2023 DOMANE+ AL SERVICE MANUAL...
  • Page 2: Additional Info

    • Owner’s Manual – comprehensive instructions that damage the bicycle and result in injury to the rider. come with your bicycle • Hyena E-bike Owner’s Manual – detailed instructions on the e-system found under Electric bikes > 2023 Copyright 2022 Trek Bicycle Corporation All Rights Reserved...
  • Page 3 2023 Domane+ AL Brake/shift routing 2 Nm Derailleur hanger bolts (M3x6.4 mm) – W318604 Derailleur hanger – W5268484 Rear brake hose Rear derailleur cable Front brake hose. Front derailleur cable...
  • Page 4 2023 Domane+ AL E-system 11 Nm 11 Nm 6 Nm   3 Nm 2 Nm 3 Nm 2 Nm 2 Nm Cable guide Hub motor – W5266204 5284388 Cable guide bolt (M4x6 mm) Remote – W5257327 Torque sensor – W5257770 Anti-rotational flange nuts 5288641...
  • Page 5: Remove The Rear Wheel

    2023 Domane+ AL Remove the rear wheel Shift to the smallest rear cog (highest gear) and front, inner chain ring. Unplug the motor cable at the chainstay and remove the cable from the cable guide (10). Remove both axle bolts (13) and flange nuts (12).
  • Page 6 2023 Domane+ AL Remove the bottom bracket/torque sensor AUTHORISED DEALERS ONLY: Only authorised dealers should perform service on the e-system. Improper handling, tools used or torque applied to these parts may result in damage to the e-system components and cables. Remove the three bolts from the bottom bracket Unplug the torque sensor cable.
  • Page 7 2023 Domane+ AL Install the bottom bracket/torque sensor AUTHORISED DEALERS ONLY: Only authorised dealers should perform service on the e-system. Improper handling, tools used or torque applied to these parts may result in damage to the e-system components and cables. Install the driveside cup and tighten it to 35 Nm.
  • Page 8: Remove The Battery

    2023 Domane+ AL Remove the battery AUTHORISED DEALERS ONLY: Only authorised dealers should perform service on the e-system. Improper handling, tools used or torque applied to these parts may result in damage to the e-system components and cables. Remove the bottom bracket/torque sensor (see Rotate the bicycle and slide the battery assembly out.
  • Page 9: Install The Battery

    2023 Domane+ AL Install the battery AUTHORISED DEALERS ONLY: Only authorised dealers should perform service on the e-system. Improper handling, tools used or torque applied to these parts may result in damage to the e-system components and cables. Use the four bolts (7) to attach the controller to the Install the bottom bracket/torque sensor (see battery (if they are disconnected).
  • Page 10: Fork And Headset

    2023 Domane+ AL Fork and headset Top cover – W590959 Compression ring – W532842 Upper headset bearing – W531676 Lower headset bearing – 417578 30 mm Optional spacers...
  • Page 11 2023 Domane+ AL Chainkeeper Bolt (M4x22 mm) Chainkeeper 5305773 Flat washer (M5x10 mm) 1 Nm Bolt (M5x16 mm) 3 Nm Adjust the chainkeeper Shift to the lowest gear (largest rear cassette cog) and front, inner chain ring. Loosen the bolt (1) on the chainkeeper. Rotate the loose piece (shown in red below) so there is 1 mm of horizontal clearance to the chain.
  • Page 12 2023 Domane+ AL Frame mounts Mudguards and rear rack 3 Nm Bolts (M4x8 mm) – W575056 Seat stay bridge – W503255 W308963 *Hole cover – *Used to cover mudguard and rack mount bosses Access plug Water bottle cage mounts Remove the hole cover (1) and use the upper access hole to push the remote out.
  • Page 13: Specifications

    2023 Domane+ AL Specifications Frame Rear hub OLD 141 mm Front hub OLD 100 mm Upper fork steerer tube OD 28.6 mm Lower fork steerer tube OD 38.1 mm Front 140/160 mm Brake rotor diameter min/max Rear 140/160 mm With mudguards 32 mm 700c tyre, max width Without mud-...
