- Page 1 Operator’s Manual Vibroplate VP1030A-CE VP1030AW-CE 1119 5000401966 5 0 0 0 4 0 1 9 6 6...
- Page 2 Wacker Neuson Machinery (China) Co., Ltd. Any type of reproduction or distribution not authorized by Wacker Neuson Machinery (China) Co., Ltd. represents an infringement of valid copyrights. Violators will be prosecuted.
-
Page 3: Foreword
(China) Co., Ltd. will be referred to as Wacker Neuson. Keep a copy of the Operator’s Manual with the machine at all times. If you are missing any of these documents, please contact Wacker Neuson to order a replacement or visit www.wackerneuson.com. - Page 4 The information contained in this manual is based on machines manufactured up until the time of publication. Wacker Neuson reserves the right to change any portion of this information without notice. The illustrations, parts, and procedures in this manual refer to Wacker Neuson ...
-
Page 5: Table Of Contents
VP1030A/AW Table of Contents Foreword Safety Information Signal Words Used in this Manual ............7 Machine Description and Intended Use ..........8 Operating Safety..................9 Operator Safety while Using Internal Combustion Engines ....11 Service Safety ..................12 Labels Label Locations ................... 14 Label Meanings ................... - Page 6 Table of Contents VP1030A/AW Maintenance Maintaining the Emission Control System ........... 23 Periodic Maintenance Schedule ............23 Servicing the Spark Plug ..............25 Servicing the Air Cleaner ..............26 Changing the Engine Oil..............27 Cleaning the Sediment Cup..............27 Adjusting the Carburetor ..............28 Servicing the Drive Belt ...............
-
Page 7: Safety Information
VP1030A/AW Safety Information Safety Information Signal Words Used in this Manual This manual contains DANGER, WARNING, CAUTION, NOTICE, and NOTE signal words which must be followed to reduce the possibility of personal injury, damage to the equipment, or improper service. This is the safety alert symbol. -
Page 8: Machine Description And Intended Use

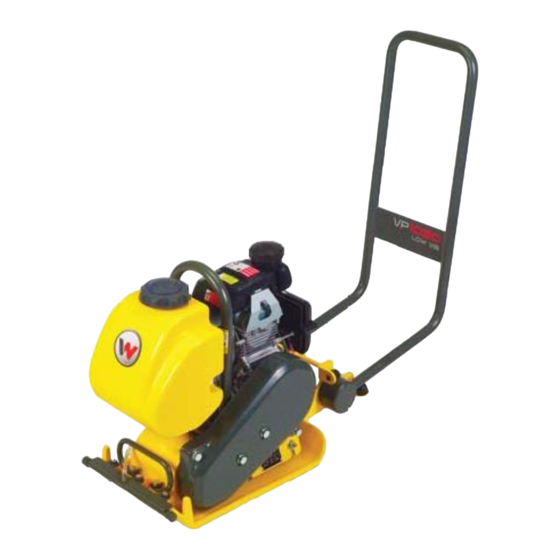

VP1030A/AW Safety Information Machine Description and Intended Use The Wacker Neuson vibratory plate offers functionality and performance. The compact design allows for compaction of mixed soils in the narrowest of spaces— even in extremely narrow trenches. This machine is optimally suited for a variety of compaction applications with high speed and simple maneuverability. -
Page 9: Operating Safety
To ensure safe operation of the machine: Do not operate the machine if any safety devices or guards are missing or inoperative. Do not modify or defeat the safety devices. Only use accessories or attachments that are approved by Wacker Neuson. wpm_si001046gb.fm... - Page 10 VP1030A/AW Safety Information Safe When operating this machine: operating Remain aware of the machine’s moving parts. Keep hands, feet, and loose practices clothing away from the machine’s moving parts. When operating this machine: Do not operate a machine in need of repair. ...
-
Page 11: Operator Safety While Using Internal Combustion Engines
VP1030A/AW Safety Information Operator Safety while Using Internal Combustion Engines WARNING Internal combustion engines present special hazards during operation and fueling. Failure to follow the warnings and safety standards could result in severe injury or death. ► Read and follow the warning instructions in the engine owner’s manual and the safety guidelines below. -
Page 12: Service Safety
procedures are complete. Machine When servicing or maintaining the machine: modifications Use only accessories/attachments that are approved by Wacker Neuson. When servicing or maintaining the machine: Do not defeat safety devices. Do not modify the machine without the express written approval of Wacker ... - Page 13 VP1030A/AW Safety Information Cleaning When cleaning and servicing the machine: Keep the machine clean and free of debris such as leaves, paper, cartons, etc. Keep the labels legible. When cleaning the machine: Do not clean the machine while it is running. ...
-
Page 14: Labels
VP1030A/AW Labels Labels Label Locations wpm_gr013776 wpm_si001047_01gb.fm... -
Page 15: Label Meanings
VP1030A/AW Labels Label Meanings WARNING Hot surface Guaranteed sound power level in dB(A). WARNING Hand injury if caught in moving belt. Always replace beltguard. CAUTION! Read and understand the supplied operator’s manual before operating the machine. Failure to do so increases the risk of injury to yourself and others. - Page 16 VP1030A/AW Labels Throttle control lever: Turtle = Idle or Slow Rabbit = Full or Fast DANGER! Engines emit carbon monoxide; operate only in well-ventilated area. Read the operator’s Manual No sparks, flames, or burning objects near the machine. Shut off the engine before refueling. Label-machine model VP1030 LOW VIB...
- Page 17 VP1030A/AW Labels DANGER! Engines emit carbon monoxide; operate only in well-ventilated area. Read the operator’s Manual No sparks, flames, or burning objects near the machine. Shut off the engine before refueling. wpm_si001047_01gb.fm...
-
Page 18: Lifting And Transporting
VP1030A/AW Lifting and Transporting Lifting and Transporting Lifting the This machine is heavy enough to cause injury if proper lifting techniques are not Machine used. Observe the following guidelines when lifting the vibroplate. Do not attempt to lift the machine unassisted. Grasp machine by lifting handles ... -
Page 19: Operation
1. Make sure all loose packaging materials have been removed from the machine. 2. Check the machine and its components for damage. If there is visible damage, do not operate the machine! Contact your Wacker Neuson dealer immediately for assistance. -
Page 20: Recommended Fuel
Before using an oxygenated fuel, confirm the fuel’s contents. Some states and provinces require this information to be posted on the fuel pump. The following is the Wacker Neuson approved percentage of oxygenates: Ethanol (Ethyl or grain alcohol) 10% by volume. You may use gasoline containing up to 10% ethanol by volume (commonly referred to as E10). -
Page 21: Starting The Machine
VP1030A/AW Operation Starting the Machine Procedure Perform the procedures below to start the machine. 1. Open fuel valve by moving lever to the right (a1). Note: If the engine is cold, move the choke lever to close position (b1). If the engine is hot, set the choke to open position (b2). -
Page 22: Operation
VP1030A/AW Operation Operation Run the engine at full throttle and allow the plate to pull itself along at its normal speed. When operating on an incline, it may be necessary to assist the plate by pushing it forward slightly. When operating downhill, hold the plate back slightly, if it begins to pickup speed. -
Page 23: Maintenance
WACKER NEUSON. The use of service parts that are not equivalent in performance and durability by authorized parts may impair the effectiveness of the emission control system and may have a bearing on the outcome of a warranty. - Page 24 VP1030A/AW Maintenance Machine Maintenance The chart below lists basic machine maintenance. After Daily Every Every Every first 100 hr before 50 hr 300 hr 20 hr or 6 starting or 3 or 1 yr. 1mo. Check the external hardware ...
-
Page 25: Servicing The Spark Plug
VP1030A/AW Maintenance Servicing the Spark Plug Clean or replace the spark plug as needed to ensure proper operation. Refer to your engine operator’s manual. WARNING The muffler becomes very hot during operation and remains hot for a while after stopping the engine. Do not touch the muffler while it is hot. NOTICE: Refer to section “Technical Data”... -
Page 26: Servicing The Air Cleaner
VP1030A/AW Maintenance Servicing the Air Cleaner Background A dirty air filter element can restrict air flowing into the carburetor. To keep the carburetor in good working conditions, service the air filter element periodically. If operating the engine in extremely dusty area, the job should be done more often. WARNING Explosion hazard and fire hazard. -
Page 27: Changing The Engine Oil
VP1030A/AW Maintenance Changing the Engine Oil Procedure Perform th procedure below to change the engine oil. 1. Drain the oil while the engine is still warm. 2. Remove the oil filter plug (a) and the drain plug (b) to drain the oil. Note: In the interest of environmental protection, place a plastic sheet and a container under the machine to collect any liquid that drains off. -
Page 28: Adjusting The Carburetor
VP1030A/AW Maintenance Adjusting the Carburetor Procedure Perform the procedure below to adjust the carburetor. 1. Start the engine and allow it to warm up to operating temperature. 2. Set the pilot screw (a) two turns out. See Note. 3. With the engine idling, turn the pilot screw (a) in or out to the setting that produces the highest rpm. -
Page 29: Servicing The Drive Belt
VP1030A/AW Maintenance Servicing the Drive Belt Check On new machines or after installing a new belt, check the belt tension after first 20 hours of operation. Check and adjust the belt every 50 hours thereafter. To adjust the belt: 1. Loosen the four screws (a) on the beltguard, then remove the beltguard. 2. -
Page 30: Changing The Exiter Oil
VP1030A/AW Maintenance Changing the Exciter Oil The bearings in the exciter assembly are splash lubricated and rotate at very high speed. It is important to maintain the exciter oil at the correct level and change it regularly. When Check oil level in exciter every 50 hours of operation. Procedure Follow the procedure in checking the oil level. -
Page 31: Cleaning The Plate
VP1030A/AW Maintenance 5.10 Cleaning the Plate Clean the plate after use to remove dirt, stones, and mud caught under the engine console. If the plate is being used in a dusty area, check the engine cylinder cooling fins for heavy dirt accumulation. Keep the engine cylinder fins clean to prevent it from overheating. -
Page 32: Troubleshooting
VP1030A/AW Troubleshooting Troubleshooting Problem Cause Remedy • • Plate does not Engine throttle control not Allow soil to dry before develop full speed. completely open. compacting. Poor compaction. • • Throttle control not adjusted Adjust or replace belt. correctly. • Check that engine mounting •... -
Page 33: Technical Data
VP1030A/AW Technical Data Technical Data Engine Data Engine Power Rating Net power rating per SAE J1349. Actual power output may vary due to conditions of specific use. VP1030A-CE VP1030AW-CE Engine Engine make Honda Engine model GXR120UT SE3 Maximum rated power kW (hp) 2.3 (3.08) @ 3600 rpm... -
Page 34: Machine Data
VP1030A/AW Technical Data Machine Data VP1030A-CE VP1030AW-CE Plate Dry Weight kg (lbs.) 52 (114.4) 56(116.6) Water Tank Capacity l (qts.) 7.6 (8) Exciter speed 5800 ± 100 Exciter lubrication ml (oz.) 150 (5) Motor oil Sound and Vibration Measurements The required sound specification, Paragraph 1.7.4.f of 89/392/EEC Machinery Directive, is: ►... -
Page 35: Dimensions
VP1030A/AW Dimensions Dimensions 914 (36) 300 (12) 889(35) wpm_gr005975 wpm_td000708gb.fm...
