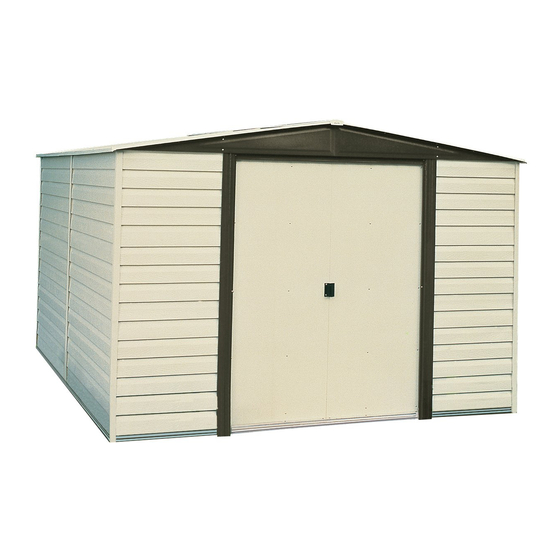

Owner's Manual & Assembly Instructions
SY01
Model No.
714541207
BUILDING DIMENSIONS
*Approx.
Foundation
Size
Size
10' x 12'
121" x 143 1/4"
3,0m x 3,6m 307cm x 364cm
VD1012-D1
* Size rounded off to the nearest foot
Storage Area
Sq. Ft. Cu. Ft.
Width
115
734
123 1/4" 145 3/4"
10,7m
2
20,8m
3
313cm
CAUTION: SOME PARTS HAVE SHARP EDGES. CARE
MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES
TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ
SAFETY INFORMATION PROVIDED IN THIS MANUAL
BEFORE BEGINNING CONSTRUCTION. WEAR GLOVES
WHEN HANDLING METAL PARTS.
Exterior Dimensions
(Roof Edge to Roof Edge)
Depth
Height
82 1/8"
370cm
209cm
697.68619-A1
Interior Dimensions
(Wall to Wall)
Width
Depth
Height Width Height
118 1/4" 140 1/2" 80 7/8" 55 1/2" 69 1/4"
300cm
357cm
205cm
Door
Opening
141cm
176cm
Advertisement
Related Manuals for Arrow VD1012-D1
Summary of Contents for Arrow VD1012-D1
- Page 1 Owner's Manual & Assembly Instructions SY01 Model No. VD1012-D1 697.68619-A1 CAUTION: SOME PARTS HAVE SHARP EDGES. CARE MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ 714541207 SAFETY INFORMATION PROVIDED IN THIS MANUAL BEFORE BEGINNING CONSTRUCTION.
- Page 2 Anchoring and foundation materials are not included with your building. We recommend the combined use of an Arrow Floor Frame Kit and an Arrow Anchoring Kit as an effective method of securing your building to the ground (Available by mail order or at your local dealer) or you may construct a foundation and anchoring system of your choice.
- Page 3 PLAN AHEAD..Watch the Weather: Be sure the day you select to install your building is dry and calm. Do not attempt to assemble your building on a windy day. Be careful on wet or muddy ground. Teamwork: Whenever possible, two or more people should work together to assemble your building.
- Page 4 SAFETY FIRST..Safety precautions are important to follow throughout the construction of your building. •Care must be taken when handling various •Practice caution with the tools being used in the pieces of your building since some contain assembly of this building. Be familiar with the sharp edges.
- Page 5 Keep roof clear of leaves and snow with long handled, soft-bristled broom. Heavy amounts of snow on roof can damage building making it unsafe to enter. In snow country, Roof Strengthening Kits are available for most Arrow Buildings for added protection against heavy snow accumulation.
- Page 6 For buildings ATTIC KIT / WORKBENCH KIT larger than 10'x9', use 2 kits. Heavy-duty galvanized steel bars that fit all 10' wide Arrow buildings. They Model No. AK100 install quickly and easily to help New concrete anchor system permits...
- Page 7 THIS PAGE LEFT BLANK INTENTIONALLY...
- Page 8 THIS PAGE LEFT BLANK INTENTIONALLY...
- Page 9 A. To support a plywood deck B. To be filled with sand. We recommend the combined use of 1. an ARROW FLOOR FRAME KIT and 2. an ARROW ANCHORING KIT as an effective method of securing the building to the ground.
- Page 10 It is important that the entire floor frame be anchored after the building is erected. Below are recommended ways of anchoring. Anchoring into Wood/Post: Arrow Anchoring Kit: (Model No. AK4 or 60298) Use 1/4" Wood Screws. There are 1/4" (0,63cm) dia.
- Page 11 66183 67468 66769 66382 Roof Trim Cap Peak Cap (2) Door Slide (4) Lower Door Guide (4) (2 right & 2 left) (Arrow Logo) 6228 65020 67545 65958 Track Support (2) Door Washer (14) Weather Stripping (1) #8-32x7/8" Bolt (14)
- Page 12 Parts List SY12 Assembly Part Part Quantity Check Key No. Number Description In Carton List 9365 Front Wall Channel 5287 Splice Post 5288 Corner Post 6000 Right Gable 6001 Left Gable 6287 Side Siding 6529 Roof Panel 6640 Right Roof Panel 6641 Left Roof Panel 7311...
- Page 13 Assembly by Key No. SY13...
- Page 14 ● ● ● ● ● 8934 Ramp (1) ● Parts Needed For ● ● ● ● ● ● 9367 Front Floor Frame (2) Step 1 ● ● ● ● ● 8936 Rear Floor Frame (2) Floor Frame Assemblies ● ● ● ● ● 10392 Side Floor Frame (4) SV14 The front floor frame is made up of three pieces.
- Page 15 ● Parts Needed For ● ● ● ● ● ● 10396 Rear Wall Angle (2) Step 2 ● ● ● ● ● 10395 Side Wall Angle (4) Frame Assemblies SX15 The main frame pieces reinforce the walls. This piece will later be installed at the top edge of the side walls and the rear wall.
- Page 16 ● Parts Needed For ● Step 3 ● ● ● ● ● 10397 Roof Beam (8) Roof Beam Assemblies SV16 The roof beams join the two gables and support the roof panels. The main roof beam is made up of four pieces 10397 overlapped back to back at the cen- ter.
- Page 17 ● Parts Needed For ● ● ● ● ● ● 6403 Door Track Splice (1) Step 4 ● ● ● ● ● 9366 Door Track (2) Door Track Assembly NOTE: Door Track Splice (painted part) The door track assembly supports the sliding doors and reinforces the front wall.
- Page 18 ● ● ● ● ● Front Floor Assembly (1) ● Parts Needed For ● Step 5 ● ● ● ● ● Side Floor Assembly (2) Floor Frame ● ● ● ● ● Rear Floor Assembly (1) SW18 RIGHT REAR 10392 STEP Place the floor frame pieces that 8936...
- Page 19 ● Parts Needed For ● ● ● ● ● ● 5288 Corner Post (4) Step 6 Corner Posts SX19 NOTE The remainder of the building assembly requires many hours and more than one person. Do not continue beyond this point if you do not have enough time to com- plete the assembly today.
- Page 20 ● Parts Needed For ● ● ● ● ● ● Door Track Assembly (1) Step 7 ● ● ● ● ● Rear Wall Angle Assembly (1) Top Frames ● ● ● ● ● Side Wall Angle Assemblies (2) SX20 The top frame pieces give rigidity to the side walls and provide a surface for attaching the gables which sup- port the roof.
- Page 21 ● Parts Needed For ● Step 8 ● ● ● ● ● 5287 Splice Post (3) Splice Post SX21 The splice posts support the walls. Position splice post at the center of the rear wall and fasten using 4 screws into rear wall angle and 2 screws into rear floor frame.
- Page 22 ● Parts Needed For ● Step 9 ● ● ● ● ● 7311 Door Jamb (2) Door Jamb SX22 The door jambs reinforce the door opening and provide an attractive trim. Fasten the top of the door jambs to the door track with 2 screws. Do the same for the bottom into frame.
- Page 23 ● Parts Needed For ● ● ● ● ● ● 9344 Siding Stud (10) Step 10 ● ● ● ● ● 9365 Front Wall Channel (2) Studs/Front Channel SX23 The studs provide a surface for at- taching the siding panels. Following dimensions, measuring from the ends of angles place 2 studs between each corner and splice post...
- Page 24 ● Parts Needed For ● Step 11 ● ● ● ● ● 6287 Side Siding (12) Side Siding SX24 Each screw in the wall requires a washer. Slide side siding into channels of corner and splice posts, flat edge STEP upward, bottom edge down resting on floor frame.
- Page 25 ● Parts Needed For ● Step 12 ● ● ● ● ● 8736 Side Siding (6) ● ● ● ● ● 8737 Front Siding (6) Rear/Front Siding SX25 STEP STEP Slide rear siding into channel of Fasten Top Center of corner and splice posts fastening to Last Siding to Stud rear frame as shown in previous Step...
- Page 26 ● Parts Needed For ● ● ● ● ● ● 6000 Right Gable (2) Step 13 ● ● ● ● ● 6001 Left Gable (2) Gable Assemblies ● ● ● ● ● 5971 Roof Beam Bracket (4) SX26 The gables go on top of the front and rear walls to support the roof beams.
- Page 27 ● Parts Needed For ● ● ● ● ● ● Left Gable Assemblies (2) Step 14 ● ● ● ● ● Right Gable Assemblies (2) Gables/Braces ● ● ● ● ● 6635 Gable Brace (2) SX27 Lift and fasten a right and left gable, under angle at corner, to the rear wall angle with screws.
- Page 28 ● Parts Needed For ● ● ● ● ● ● Main Roof Beam Assembly (1) Step 15 ● ● ● ● ● Single Roof Beam Assemblies (2) Roof Beams SX28 STEP Spread the two halves of the double roof beam and fasten to the gable brace of the front gable.
- Page 29 ● Parts Needed For ● Step 16 ● ● ● ● ● 6640 Right Roof Panel (1) Right Roof Panel SX29 Installing the roof panels is best done with a step ladder. Begin Installing roof panels at the back right corner of the building.
- Page 30 ● Parts Needed For ● ● ● ● ● ● 6641 Left Roof Panel (1) Step 17 ● ● ● ● ● 6529 Roof Panel (2) Ridge Cap & Panels ● ● ● ● ● 6869 Ridge Cap (1) SX30 Screws To Roof Beam Install a left roof panel 6641 at the...
- Page 31 ● ● ● ● ● 6868 Ridge Cap (1) ● Parts Needed For ● ● ● ● ● ● 6529 Roof Panel (4) Step 18 ● ● ● ● ● 6869 Ridge Cap (1) Ridge Cap & Panels ● ● ● ● ● 6641 Left Roof Panel (1) ●...
- Page 32 ● Parts Needed For ● Step 19 ● ● ● ● ● 6015 Side Roof Trim (4) Roof Trim ● ● ● ● ● 6014 Side Roof Trim (2) SW32 Attach the side roof trim pieces to the lower end of the roof panels on each side of the building using screws at each panel overlap.
- Page 33 ● ● ● ● ● 67731 Foam Board (2) ● Parts Needed For ● Step 20 ● ● ● ● ● 10493 Right and Left Doors (2) Door Assembly ● ● ● ● ● 10501 Horizontal Door Brace (4) ● ● ● ● ● 8641 Vertical Door Brace (2) SY33 The steps on this page tell how to assemble the left door.
- Page 34 ● Parts Needed For ● ● ● ● ● ● Right Door Assembly (1) Step 21 ● ● ● ● ● Left Door Assembly (1) Door Installation & Adjustment SY34 Horizontal Door Brace Gable Door Track Door Slide From inside the building, put the bottom of the right door assembly (on your left when you are inside the STEP...
- Page 35 VD1012-D1 697.68619-A1 SY36 SOME FACTS ABOUT RUST 1. Avoid nicking or scraping the coating surface, Rusting is a natural oxidizing process that occurs inside and out. when bare metal is exposed to moisture. Problem areas include screw holes, unfinished edges, or 2.
