Kit Specific Component List
27698
HARDWARE CONTENT
Item
Part #
Description
A
26498-009
Harn – USB Display Cable .........................1
B
26498-006
Harn – Main Harness ..................................1
C
27050
3H/3P Display ...............................................1
D
24503
Fuse ATM 3A ..............................................1
E
24501
Fuse Holder ATM .......................................1
F
24502
Fuse Holder ATO/ATC ...............................1
G
24661
Heat Shrinkable Butt Splice 14-16GA ............1
H
24752
Heat Shrinkable Butt Splice 10-12GA ............3
I
24748
Ring Terminal 3/8" 10-12GA .........................2
J
24524
Ins. Female .187" Term. 14-16GA ................1
K
24594
Ins. Female .250" Term. 14-16GA ................1
MANIFOLD CONTENT
Item Part #
Description ....................................Qty
AE
72614
Manifold ECU 3/8" .................................... 1
AF
20947
Air Line 3/8" ..........................................60 ft.
COMPRESSOR
Item
Part #
Description ....................................Qty
AG
16444
Compressor ................................................1
HEIGHT CONTENT
Item
Part #
Description ....................................Qty
W
34977
HPACK- Height Sensor Linkage .................4
X
26894
Height Sensor Assembly ............................4
Y
26953-012
Harn-12FT RL Height Sensor* ...................1
Z
26953-013
Harn-12FT RR Height Sensor* ...................1
AA
26953-020
Harn-20FT FL Height Sensor* ....................1
* FL = Front left corner
RL = Rear left corner
FR = Front right corner
RR = Rear right corner
Missing or damaged parts? Call Air Lift Company customer service at (800) 248-0892 for replacement parts.
STOP!
MN-995 • (011509) • ERN 7687

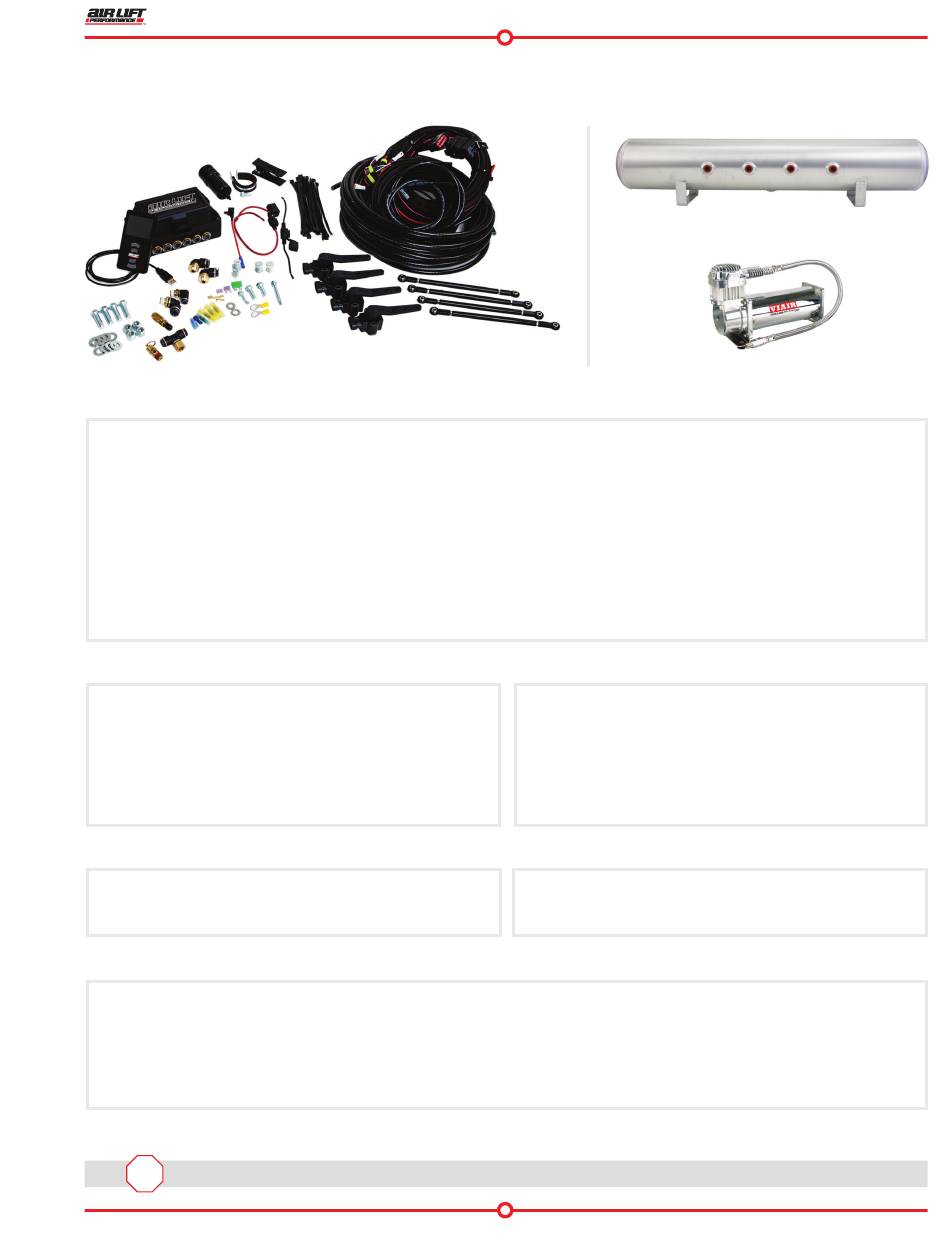

Image may not depict actual kit.
Qty
Item Part #
L
M
N
O
P
Q
R
S
T
U
V
FILTER CONTENT
Item
AI
AJ
AK
AL
AM
AN
TANK
Item
AH
Item Part #
AB
AC
AD
AO
Installation Manual
Description ....................................Qty
24561
ATM Fuse Tap Adapter ................................1
24542
ATO/ATC Fuse Tap Adapter ........................1
10466
Zip Tie 8" Black ...........................................20
17103
Screw 5/16"-18 x 1" Zinc...............................2
18542
Flat Washer 5/16" Stainless .........................2
17263
Screw 1/4"-14 x 1" Self-Tapping Zinc ...........1
17494
Screw 1/4"-14 x 2" Self-Tapping Zinc ...........2
10530
Hose Cutter Kit..............................................1
24504
Fuse Low-Profile Mini 3A ..............................1
24505
Low-Profile Mini Fuse Tap ............................1
24547
Fuse ATO/ATC 30A ....................................1
Part #
Description ....................................Qty
11217
P Clamp, 1.5" Cushion ...............................1
11517
Miniature Filter ............................................1
17173
Screw #14-1/4 x 3/4" Self-Tapping .............1
20937
Hose 1/4" Dia Poly ..................................5 ft.
22677
Tee Fitting - 1/4" FNPT x (2) 1/4" PTC .......1
21048
Pressure-Relief Valve .................................1
Part #
Description ....................................Qty
11956
5 Gallon Tank .............................................1
Description ....................................Qty
26953-021
Harn-20FT FR Height Sensor* ...................1
10466
Zip Tie 8" Black .........................................20
17497
Screw 10-16 x 1 3/4" Self-Tapping Zinc ............ 8
11998
Height Sensor Spacer ......................................... 4
Tank Fittings and Tank Hardware are listed on back of sheet
